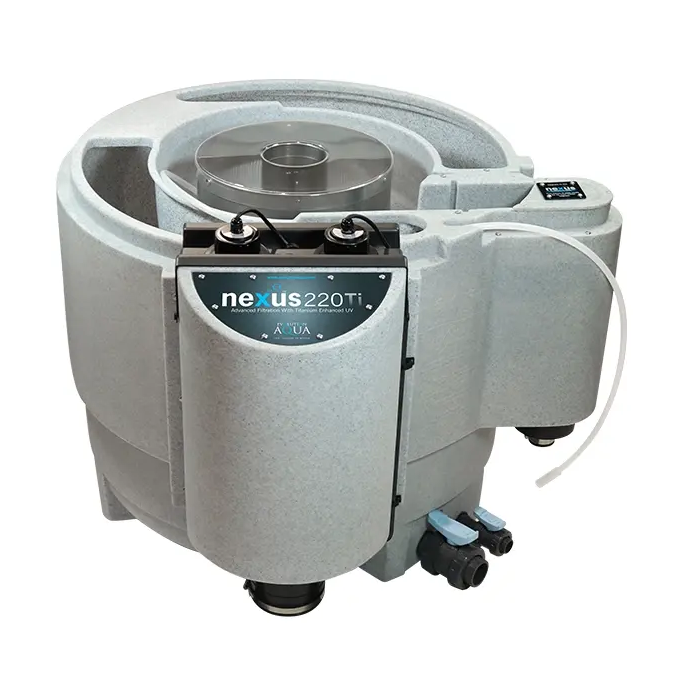

Evolution Aqua Nexus EAZY 220 Titanium Filtration System w/ (2) 36 watt UV's - 4,800 Gallons

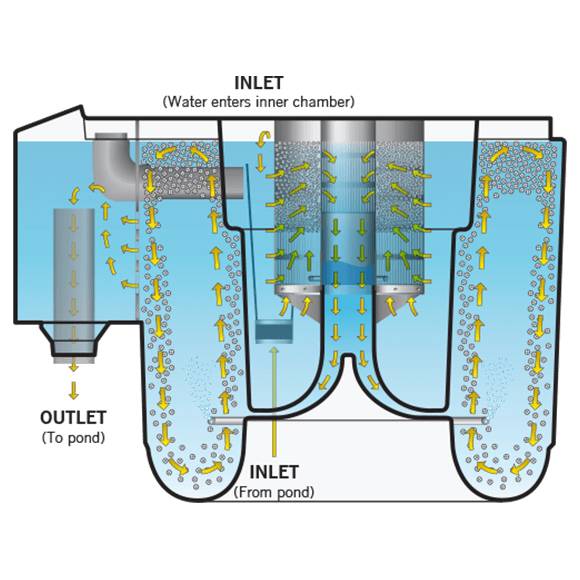

The NexusTi combines Evolution Aqua’s Nexus filtration with integrated Titanium-Enhanced UV Clarifiers for efficient, crystal-clear pond water. By incorporating UV technology directly into the clean water outlet, it improves UV performance while reducing components, simplifying installation and plumbing, and minimizing maintenance.
Clears Green Water Faster

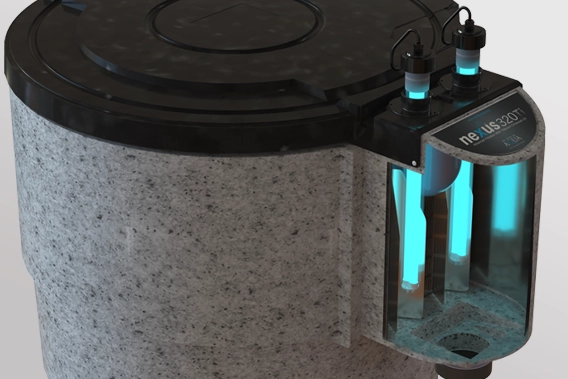

The clarifying chamber uses Titanium-enhanced UV technology to optimize flow and UV exposure, delivering faster green-water removal and clearer pond water than standard systems.
Significant Savings On Pipework & Fittings
Built-in UV units eliminate the need for separate plumbing and additional fittings, reducing installation costs, simplifying setup, and keeping your pond area clean, tidy, and uncluttered.

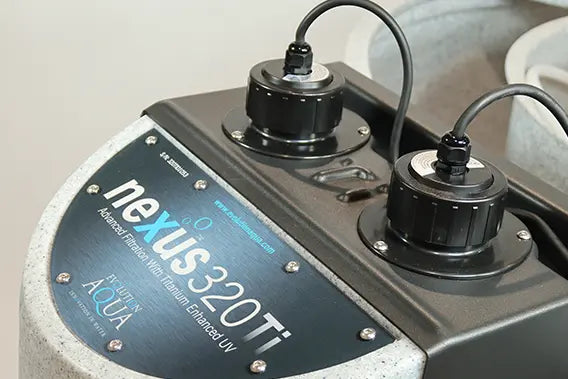

Fully Serviceable
Easy-access UV units make maintenance simple, with quick bulb and quartz sleeve replacement and parts available here at Play it Koi.
| Specification | NexusTi 220 | NexusTi 320 |
|---|---|---|
| Max pond size | 4,800 gal | 9,000 gal |
| Titanium Enhanced UV | 2 × 36W UV | 2 × 55W UV |
| Max flow rate | 2,640 gph | 3,431 gph |
| Water volume | 112 gal | 185 gal |
| K1 Micro (Eazy) | 18 L | 20 L |
| K+ Media (Bio) | 50 L | 100 L |
| Max K+ Capacity | 150 L | 300 L |
Air Pump Sizing by Total Media Volume
| Total Media Volume | Recommended Airtech Model | Airflow |
|---|---|---|
| 50–75 L | Airtech 75 |
75L/min |
| 75–100 L | Airtech 95 |
95 L/min |
| 100–150 L | Airtech 130 | 130 L/min |
| 150–300 L | Airtech 150 | 150 L/min |
Quick Guide: Choose your Airtech air pump based on the total volume of media in your filtration system.
*Air pump required for proper operation of the filter.
