Description

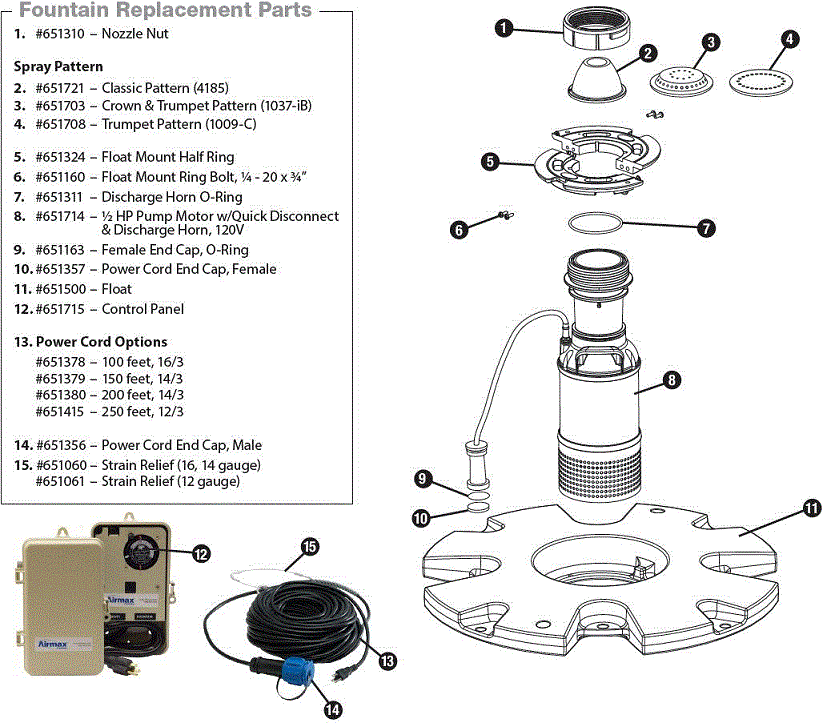

These replacement parts are for the Airmax EcoSeries 1/2 HP Fountains. See the images of the #ES05 (current) and #EC05 (old) models to see diagrams of each item.
| SKU | UPC Code | Description | EC05 or ES05? |
| 651060 | 813166022447 | Strain Relief, 16-14 Gauge | Both |
| 651061 | 813166022454 | Strain Relief, 12-10 Gauge | Both |
| 651102 | 813166023376 | Float Mount Bolt, 1/4-20 x 1" | ES05 |
| 651104 | 813166023383 | Float Mount Ring Locknut, 1/4-20 | ES05 |
| 651106 | 813166022553 | Rotor and Impeller Assembly (Green) | EC05 |
| 651108 | 813166023222 | 5-Blade Impeller | EC05 |
| 651141 | 813166026889 | Stainless Steel Suction Screen | ES05 |
| 651142 | 813166026896 | Lower Intake Housing | ES05 |
| 651143 | 813166026902 | Stainless Suction Screen Nut | ES05 |
| 651144 | 813166026919 | Rotor and Impeller Assembly (Black) | ES05 |
| 651149 | 813166026964 | Lower Intake Housing Screw (Set of 4) | ES05 |

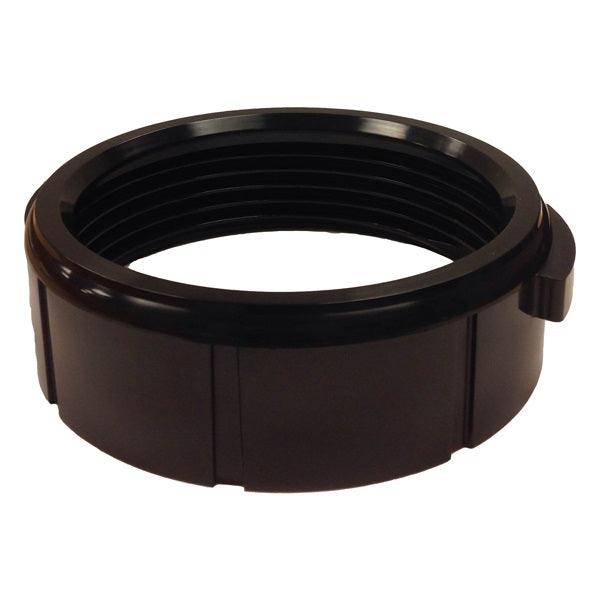

| 651310 | 813166022904 | Fountain Nozzle Nut, 4" | Both |
| 651311 | 813166023000 | Discharge Horn O-Ring, 4" | Both |

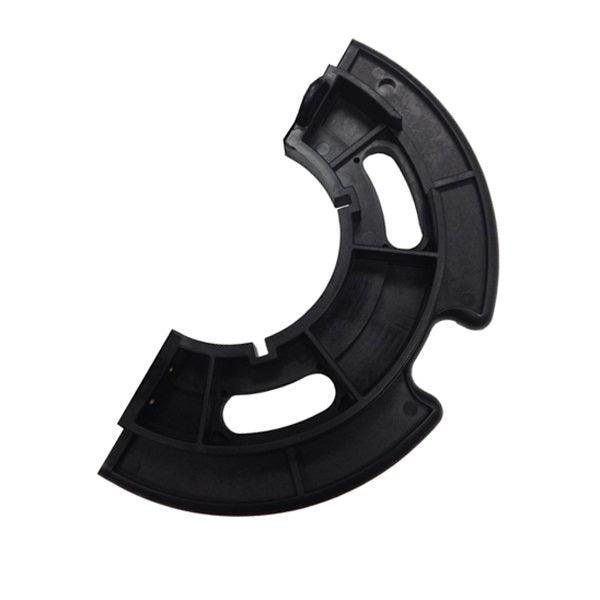

| 651324 | 813166023369 | Float Mount Half Ring, 4" | Both |

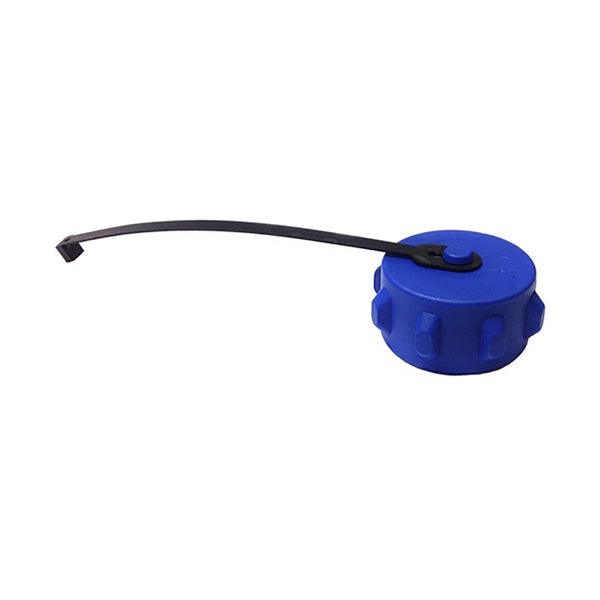

| 651356 | 813166023338 | Power Cord End Cap, 1.75" MPT | Both |

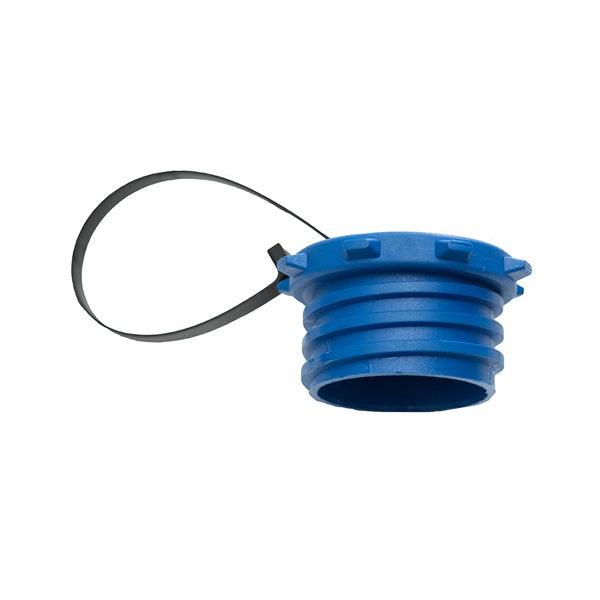

| 651357 | 813166023314 | Power Unit Motor Lead Cap, 1.75" FPT | Both |
| 651410 | 813166023284 | Fountain Flow Straightener, 4' | Both |

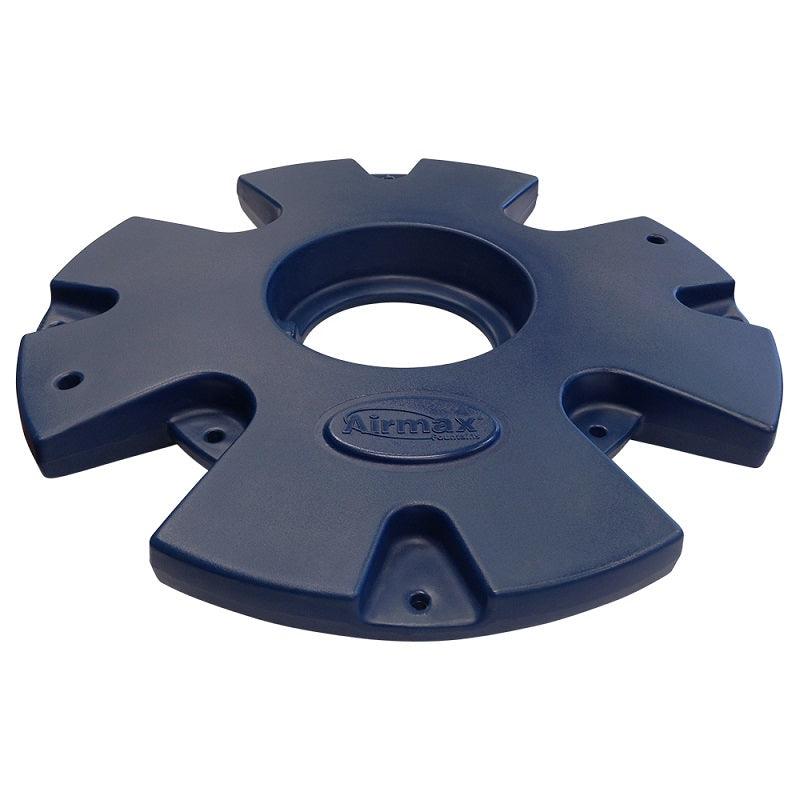

| 651500 | 813166023352 | EcoSeries Float | Both |

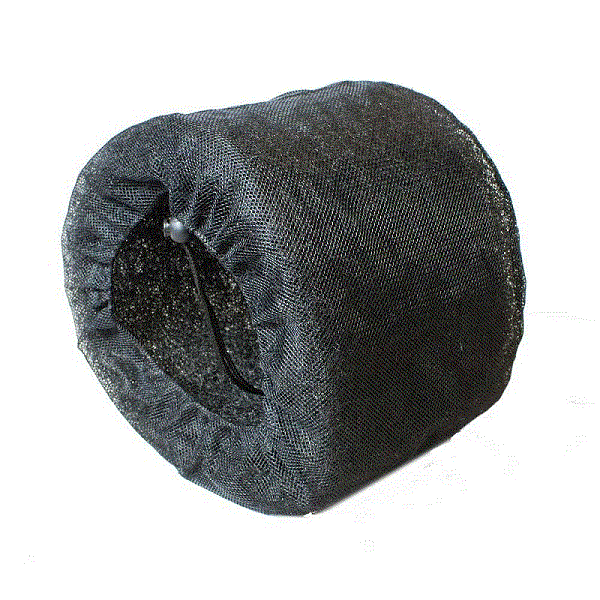

| 651623 | 813166020009 | Fountain Filter Sock | EC05 |

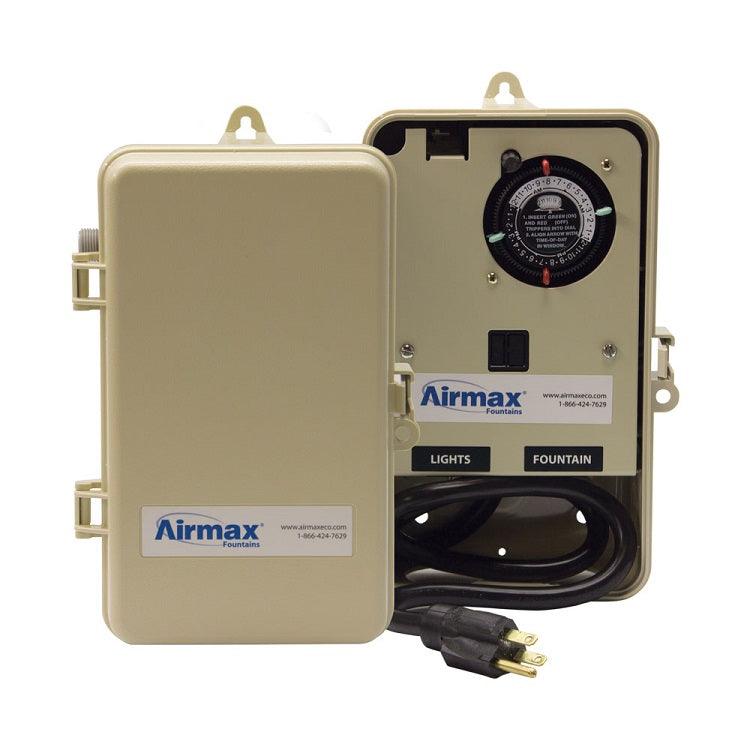

| 651715 | 813166023345 | Control Panel, 115V/15A | Both |
| 651716 | 813166026131 | 0.5 HP Motor with Quick Disconnect | Both |
