Description

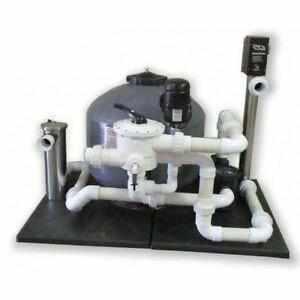

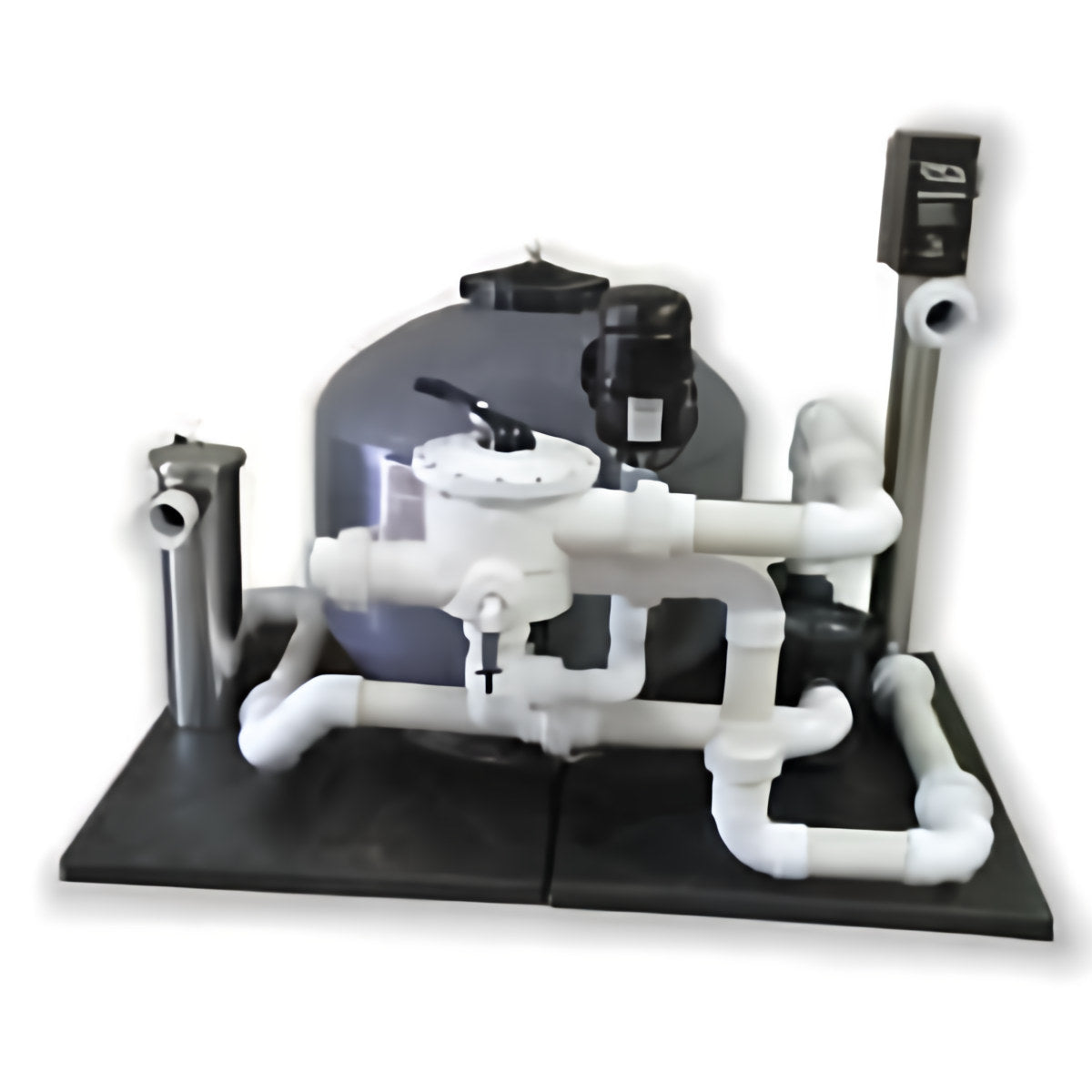

The AlphaONE 6.3 PLUS MegaSystem3 is a complete, all-3" koi pond filtration system for ponds up to 20,000 gallons. Built entirely in 3", it moves far more water with very low flow loss, pairing an AlphaONE 6.3 bead filter and a high-flow PerformancePro pump with the NishikigoiUV amalgam clarifier.
The AlphaONE 6.3 PLUS MegaSystem3 uses the same proven AlphaONE technology as our standard systems, built entirely in 3". Water moves through the huge passageways in the 3" multiport valve with very little loss of flow, so you can move a lot of water on very little energy. It is a complete system for ponds up to 20,000 gallons.
This system now comes standard with the NishikigoiUV Amalgam UV Clarifier, sized to your build, replacing the Zapp Pure units used on earlier systems.
What's Included
- AlphaONE 6.3 bead filter (6.0 cu. ft., 30.4" diameter x 40" high)
- NishikigoiUV Amalgam UV Clarifier, sized to your build
- 1 HP PerformancePro High Flow pump (13,200 gph at 5 ft head)
- All-3" plumbing with quick-disconnect unions and a swing check valve
- Medusa PLUS pre-plumbing package on all-weather pads
- Lifetime warranty on the AlphaONE filter
Specifications
| Specification | Detail |
|---|---|
| Pond Capacity | Up to 20,000 gallons |
| Fish Load | Up to 300 lbs, fed at 1% of body weight |
| Bead Filter | AlphaONE 6.3 (6.0 cu. ft.), 30.4" diameter x 40" high |
| Pump | 1 HP PerformancePro High Flow, 13,200 gph at 5 ft head |
| UV Clarifier | NishikigoiUV Amalgam, sized to your build |
| Plumbing Connections | 3" quick-disconnect unions |
| Optional Prefilter | AquaSieve 3" Stainless Steel |
| Filter Warranty | Lifetime |
Why the NishikigoiUV Amalgam Clarifier
Amalgam lamp technology produces far more usable UV than a conventional clarifier lamp, so the same unit clears more water in less time. The lamp runs up to roughly 13,000 hours between changes, and the housing is marine-grade 316 stainless steel built to last in a pond environment.
How It Compares
The 3" MegaSystem3 moves much more water than our standard 2" WattMizer PLUS systems, ideal for large, heavily stocked ponds. For smaller ponds, the 2" AlphaONE WattMizer PLUS systems are the better fit.
Frequently Asked Questions
Which UV clarifier is included?
A NishikigoiUV Amalgam UV Clarifier sized to your build, the new standard that replaces the older Zapp Pure units. Because MegaSystem3 is a custom build, contact us to confirm the exact model.
What makes MegaSystem3 different?
It is built entirely in 3", so the multiport valve and plumbing move much more water with very low flow loss. Use it when you want high turnover on minimal energy.
How does it ship?
Built to order and ships by freight. The carrier calls to schedule an appointment, and someone needs to be present to receive it.
Documentation
AlphaONE Backwash Instructions (PDF)
Product Video
Explore More
Shop the full range: All-in-One Pond Filtration Systems, Pressurized Bead Filters, and Pond UV Sterilizers.
Ready to build your MegaSystem3? Write [email protected] for current specs and a custom quote.
