Description

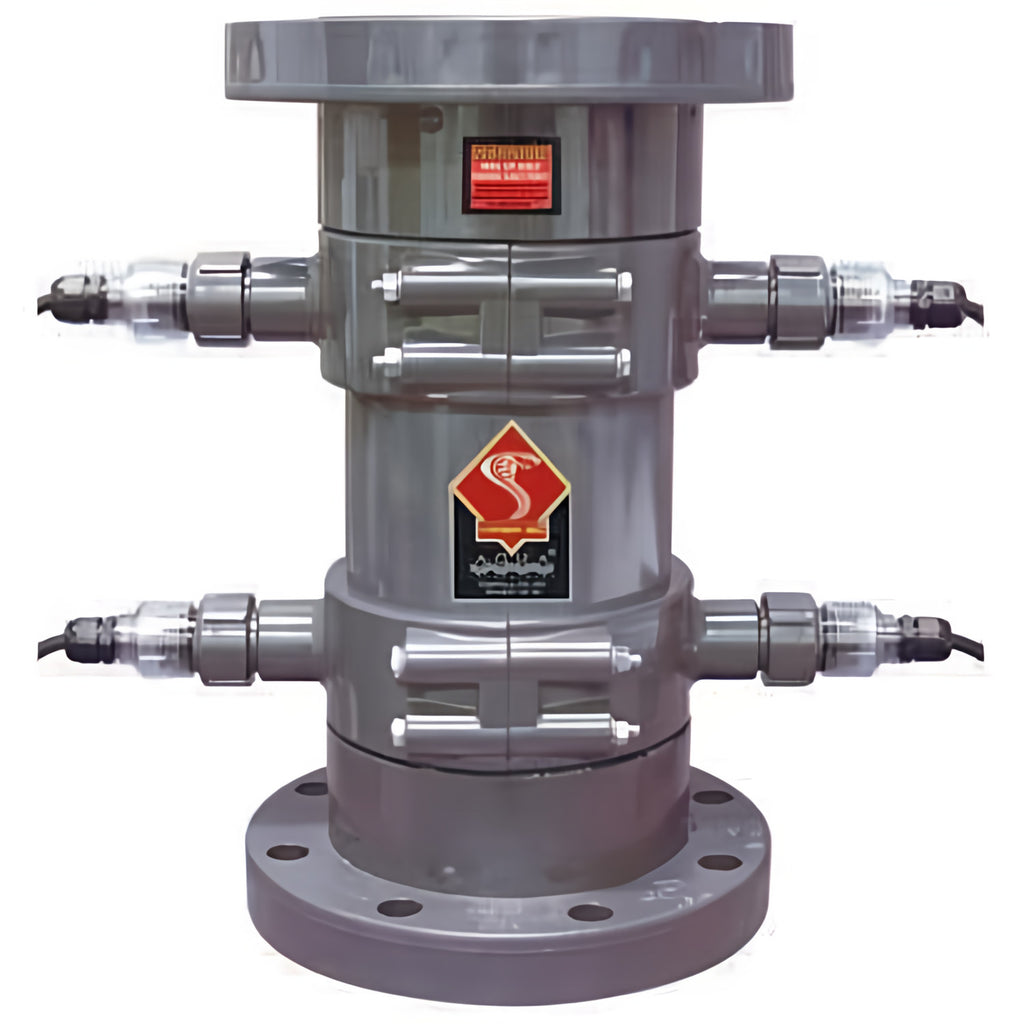

The Aqua Ultraviolet Viper 800 W Plastic sits in the sweet spot of Aqua UV's commercial-pond lineup — delivering full-sterilization UV-C dose for ponds and aquaculture systems in the 12,000–20,000 gallon range. Available in 3", 4", and 6" port sizes for retrofit on most commercial-class plumbing.
Key Features
- 800 W high-output UV sterilization for 12,000–20,000 gallon systems
- Available port sizes: 3", 4", 6" Slip Union
- Plastic chassis — value choice for sheltered installations
- Replaceable lamp kit (A20406 / A20405 / A20422 — see Lamp Kits)
- Made in the USA — Aqua Ultraviolet has manufactured UV sterilizers in Temecula, California since 1992
- Backed by Aqua Ultraviolet's full manufacturer warranty
Specifications
| Series | Viper |
|---|---|
| Wattage | 800 W |
| Body Material | High-impact plastic |
| Port Sizes | 3" / 4" / 6" Slip Union |
| Pond Capacity Range (sterilization-grade) | Approx. 12,000–20,000 gallons |
| Country of Origin | USA |
Flow Rate (GPH) by Wattage
| Wattage | Max GPH (Clarification, ~30,000 µW/cm²) — green-water control | Min GPH (Sterilization, ~90,000 µW/cm²) — parasite + bacteria kill |
|---|---|---|
| 800 W | 35,000 GPH | 11,667 GPH |
Sizing rule: divide your filtered circulation rate (GPH) by the column you need. Pick a unit whose Max GPH ≥ your circulation rate to achieve clarification dose; pick a unit whose Min GPH ≥ your circulation rate to achieve full sterilization dose at that flow.
Frequently Asked Questions
Viper 800 W vs 1200 W — when do I size up?
Step up to 1200 W if your circulation rate exceeds 8,000 GPH for sterilization-grade dose, or if pond volume exceeds ~20,000 gallons heavily-stocked koi. The 800 W handles most large ornamental ponds and small aquaculture grow-out systems.
