Description
Tsurumi's PN series pumps have had a successful presence in the water feature market for more than a decade. The PN series provides a good match for filters that require a vertical style pump housing. The 8PN model provides good performance at high head heights and the 12PN provides high flow water performance on lower head applications.
Tsurumi engineers have designed the Aquascape PN pump line to be hydraulically "dialed" into the head pressures found in water garden applications. This helps ensure that the pump is performing in its ideal operating range, resulting in less vibration and wear and tear on the pump, ultimately resulting in longer life. Their horizontal design provides a perfect fit in Aquascape-style filters.
- Constructed of stainless steel and composite resin for strength and corrosion resistance.
- Its energy efficient, continuous-duty motor operates at lower temperatures, extending the life of the pump significantly.
- A semi-vortex impeller design enables the pump to handle solids efficiently and effectively, resulting in less maintenance and trouble-free performance.
- Contains a built-in thermal overload, protecting the pump from damage if ever run in low-water conditions.
- 2-Year Limited Warranty.

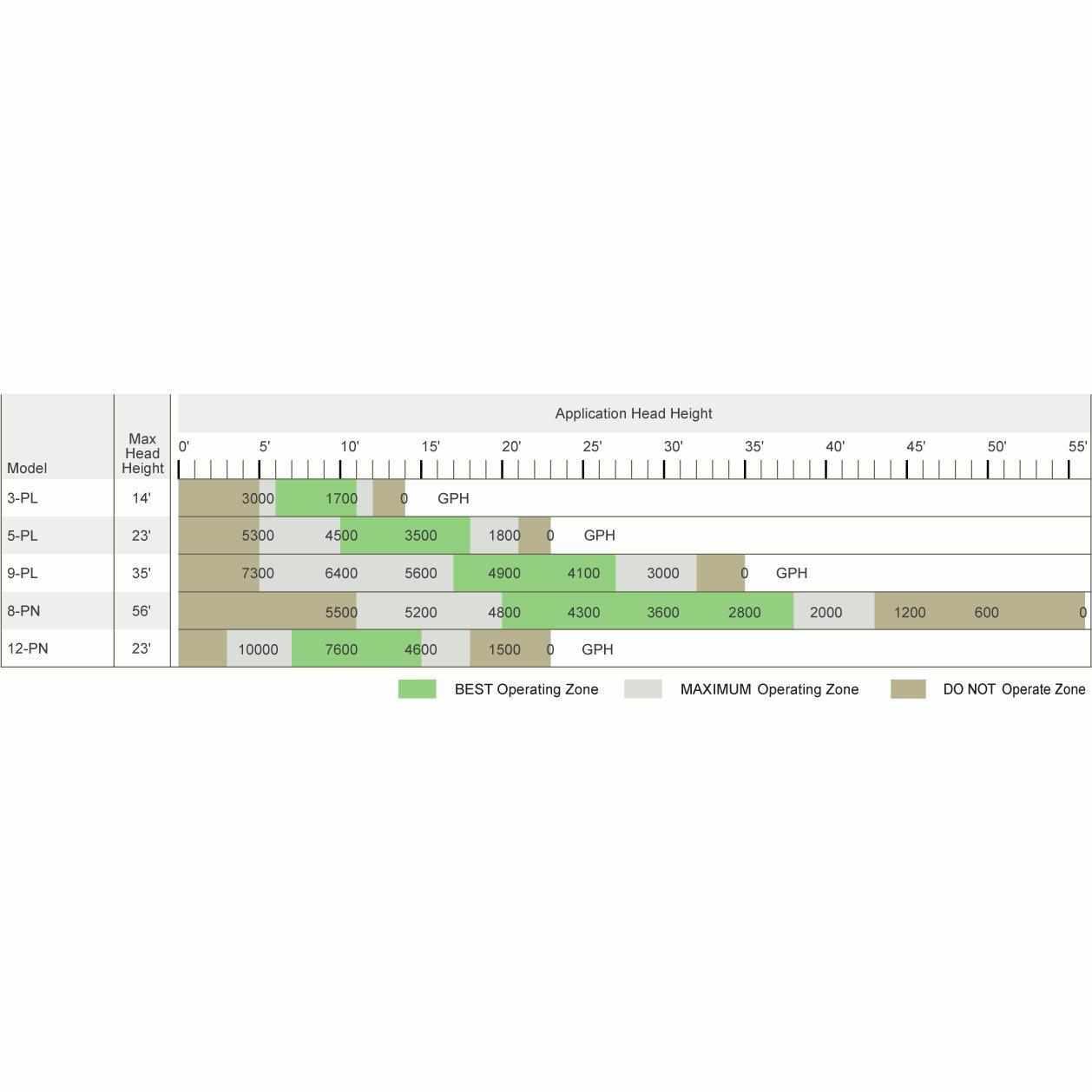

| Tsurumi Pump Specs | |||||
|---|---|---|---|---|---|
| Model | 3PL | 5PL | 9PL | 8PN | 12PN |
| Maximum Flow Rate (GPH) | 3,300 | 5,100 | 6,900 | 5,520 | 10,000 |
| Maximum Head Height | 14' | 22' | 35' | 56' | 23' |
| Motor Type | Direct Drive | Direct Drive | Direct Drive | Direct Drive | Direct Drive |
| Wattage | 328 | 660 | 987 | 360 | 924 |
| Amperage | 4.6 | 5.8 | 8.7 | 8.33 | 8.6 |
| Power Cord Length | 20' | 20' | 20' | 20' | 20' |
| Pump Discharge Diameter | 2" | 2" | 2" | 2" | 3" |
| Dimensions Pump | 12" L x 6" W x 7" H | 12" L x 6" W x 7" H | 13" L x 6" W x 7" H | 9.5" L x 6.5" W x 14" H | 11.625" L x 7.75" W x 15" H |
| Warranty | 2-Year Limited | 2-Year Limited | 2-Year Limited | 2-Year Limited | 2-Year Limited |
