SeaSide Aquatics Combi RDF Filters

Sea Side Aquatics Combi RDF Filters are Top of their Class. These units offer the best combination (combi) of Mechanical filtration and Biological Filtration in an all-in-one, easy-to-use, automated self-cleaning unit.

How Do These Work So Well?

First, dirty water enters the filter and is screened through a rotating drum filter (RDF) which physically separates dirt and debris down to 75 microns from the water column and then automatically flushes it away! Yes! You heard correctly, 75 Microns! even the best-designed Sieves on the market can only filter down to 200 Microns, so this is more than double even the best sieve. The reason it can filter out this small of particles is because of the automatic rinse that occurs. Typically this occurs several times a day automatically which prevents the screen from getting clogged. In a normal pond, it's not realistic to clean a filter several times a day which is why these can work so well.

Next, once all of the particles down to 75 microns are stripped from the water, this now mechanically filtered pond water then passes through a fluidized bed of media. Fluidized bed filters have long been known as one of the best pond filters on the market. The fluidized bed is powered by air and is constantly circulating adding valuable oxygenation to your pond at the same time the beneficial bacteria on the beads is completing the biological filtration.

One great advantage of these fluidized beds over others is that they are highly efficient in the denitrification cycle. In the fluidized filters, the media is held in suspension by an air pump and constantly moving so that every particle of the media will have an exposed surface area to contain the beneficial bacteria need to purify the water of nitrates, ammonia etc! Another great advantage of these filters is that the maintenance side of them is drastically reduced as they tend to run for much longer periods without clogging and indeed they have the ability to clean themselves. And since these fluidized beds are also powered by an air diffuser, that means you are also adding oxygen to your water at the same time.

There are currently 5 models to choose from.

CL-65 WiFi Version Seaside Combi RDF Filter Specs

• Supports Ponds up to 40,000 gallons
• Supports Standard Flow rate = 17,000 GPH (65 m3 / h)
• Drum Diameter: 60 X 50 cm
• 350L Fluidized-bed media Chamber w/ bag of K1 Media
• Installation height/water running height 14 cm
• 3 x 110 mm inputs
• 3 x 110 mm outputs ( 2 extra 110 mm outputs for pump-fed )
• Download Seaside Aquatics CL65 - Combifilter Spec Sheet (PDF)
• Download Seaside aquatics CL65- Combi Filter Instruction Manual (PDF)

View Sea Side Aquatics WiFi Module Instructions (PDF)

View Sea Side Aquatics Step-by-Step WiFi Module Setup (PDF)

CL-35 WiFi Version Seaside Combi RDF Filter Specs

• Supports Ponds up to 22,000 gallons
• Supports Standard Flow Rate = 9,250 GPH (35 m3 / h)
• Drum Diameter: 40 x 40 cm
• 150L Fluidized-bed media Chamber w/ bag of K1 Media
• Installation height/water running height 14 cm
• 3 x 110 mm inputs
• 3 x 110 mm outputs ( 2 extra 110 mm outputs for pump-fed )
• View Video walk through
• Download SeaSide Aquatics CL35 - Combifilter Spec Sheet (PDF)
• Download SeaSide Aquatics CL35 - Combi Filter Instruction Manual (PDF)

View Sea Side Aquatics WiFi Module Instructions (PDF)

View Sea Side Aquatics Step-by-Step WiFi Module Setup (PDF)

C-22 Seaside Combi RDF Filter Specs

• Supports Ponds up to 15,000 gallons
• Supports Standard Flow Rate = 4,800 GPH (22 m3 / h)
• Drum Diameter: 40 x 40 cm
• 200L Fluidized-bed media Chamber w/ bag of K1 Media
• Installation height/water running height 17 cm
• 2 x 110 mm inputs
• 2 x 110 mm outputs ( 2 extra 110 mm outputs for pump-fed )
• Pictures might show an internal cleaning pump. However, this version will have external booster/cleaning pump
• Download Seaside Aquatics C22 - Combifilter Spec Sheet (PDF)
• Download Seaside Aquatics C22 - Combi Filter Instruction Manual (PDF)

Entry C-25 Seaside Combi RDF Filter Specs

• Supports Ponds up to 10,000 gallons
• Supports Standard Flow Rate = 6,600 GPH (25 m3 / h)
• Pump Fed flow Rate = 4600 (21 m3 / h)
• 90L Fluidized-bed media chamber
• 3 x 110 mm inputs
• 2 x 110 mm outputs ( 2 extra 110 mm outputs for pump-fed )
• Installation height/water running height 16 cm
• View video walk-through
• Download SeaSide Aquatics Entry C25 CombiFilter Spec Sheet (PDF)
• Download Seaside Aquatics C-25 Combi Filter Instruction Manual (PDF)
• Limited Time Bonus: Unit comes with 1 x Periha Drop in UV 18w

C-25 Low (Gravity Fed ONLY)

• Supports Ponds up to 5,000 gallons
• Supports Standard Flow Rate = 4,000 GPH
• 2 x 110 mm inputs

• 1 x 110 mm output
• 40L Fluidized-bed media Chamber

• Filter mat media Chamber
• Download Seaside Aquatics Entry C25 Low CombiFilter Spec Sheet (PDF)

• Download Seaside Aquatics C-25 Low Combi Filter Instruction Manual (PDF)

Entry M25 Combi +Mat Chamber RDF Filter Specs

• Supports Standard Flow rate = 6,600 GPH (25 m3 / h)
• Gravity and Pump Fed
• Installation height/water running height 16 cm
• Drum Diameter: 38 X 40 cm
• Drum Bypass 2 x 90 mm
• Includes k1 media and external cleaning pump (required)

• Installation height/water running height 16 cm
• 3 x 4" Inlets and 2 x 4" Outlet
• 40 NM drive motor with 2.5 rpm
• Sieve panel 120 micron stainless steel 316
• 2 x Air bars

• Bio chamber for 90 liters of Helix

  Bio Chamber for Japanese Mats / Matala Mat

Combi Information:

Materials Used:

• 75-micron stainless steel 316 screen
• PP 15 mm housing / PP15 mm/ PP 20 mm drum
• Stainless steel 316/304/ Silicone seal
• PP Casing Cut With A CNC Machine (Entry M25)

Specifications:

• Screen panel 75-micron stainless steel 316!
• 110 mm wastewater drain
• 3/4" airline input for air pump

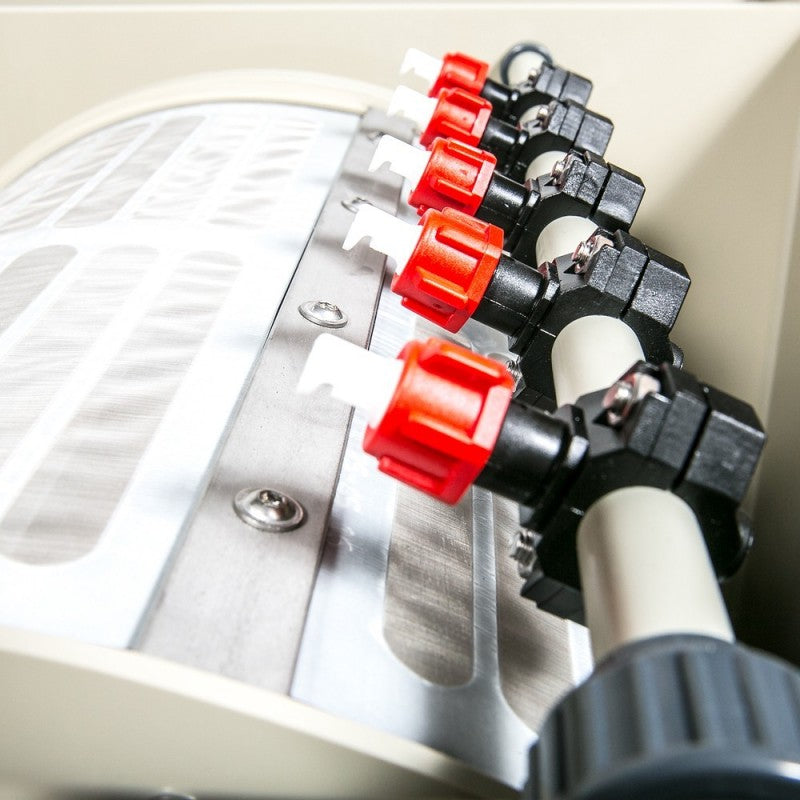

• Spray bar with removable mounting, high-pressure PVC 40 bar Cover
• Air Disc 35cm
• Air Disc Connection 20/25mm
• Gravity / Airlift / Pump fed
• Control box on filter is 110v US standard
• Cover Included
• Drum turning rinse time automatically kicks on when needed! Super low maintenance.
• You have the ability to adjust the drum rinse time duration. You also have the ability to activate the clean cycle manually if needed.
• Rinse level is also adjustable
• Delivered with Comprehensive Manual
• Standard dry-run protection for pond pump
• CE Marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA)
• 1-year warranty on all parts (ex sieve elements)

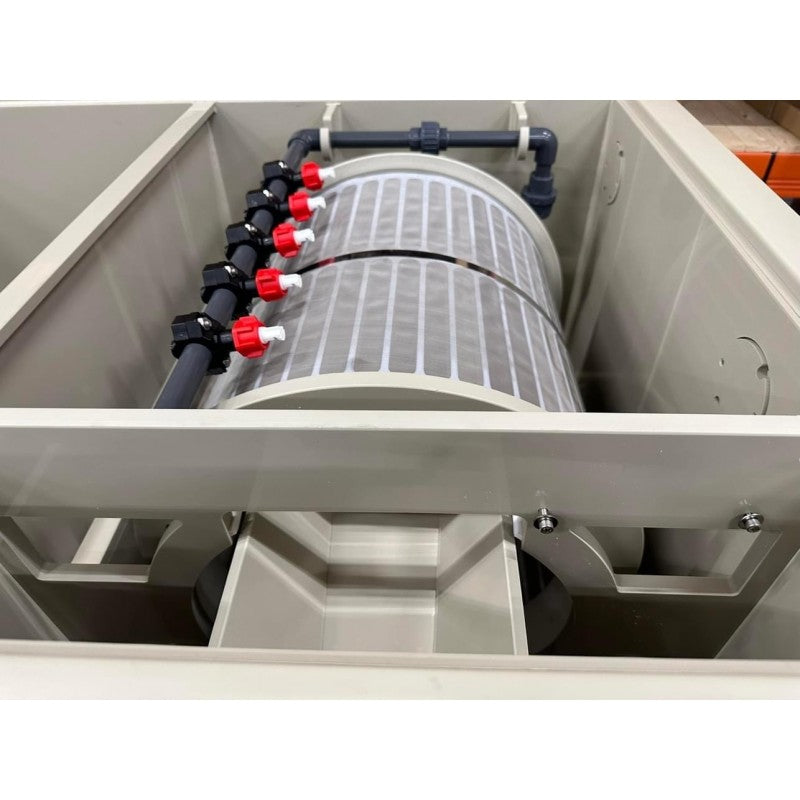

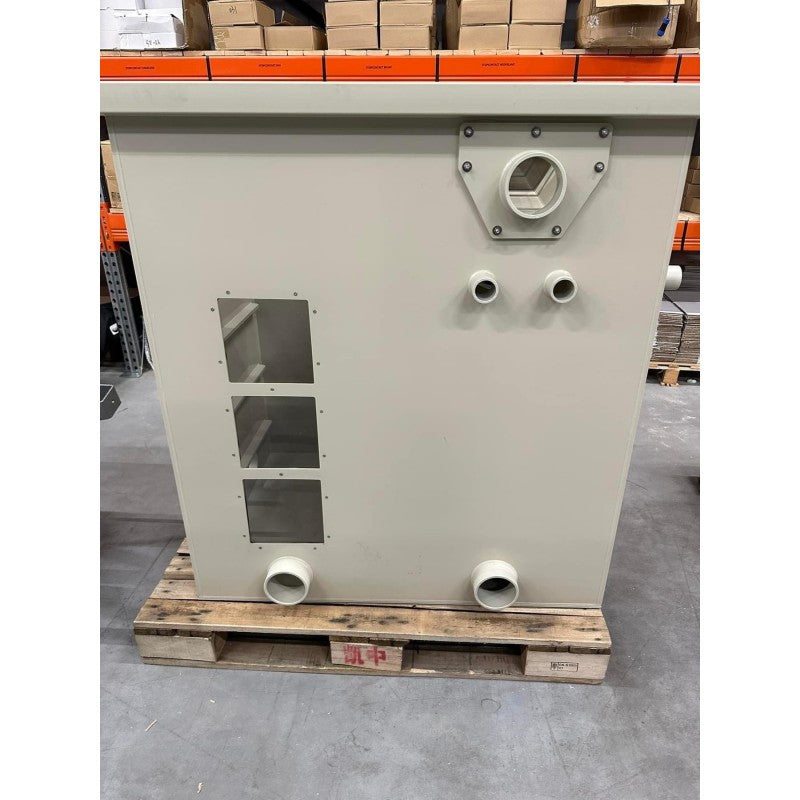

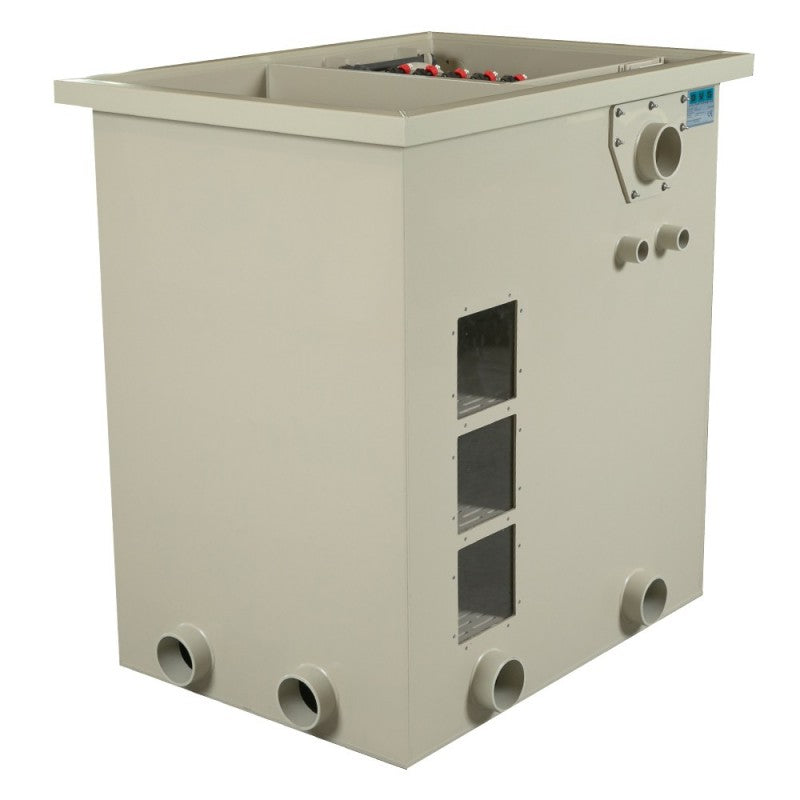

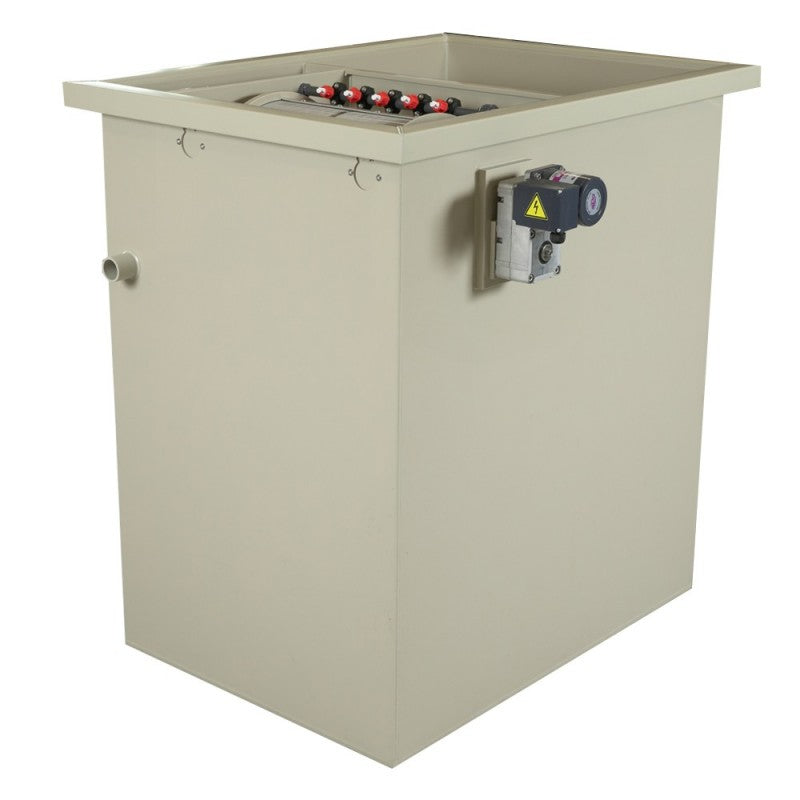

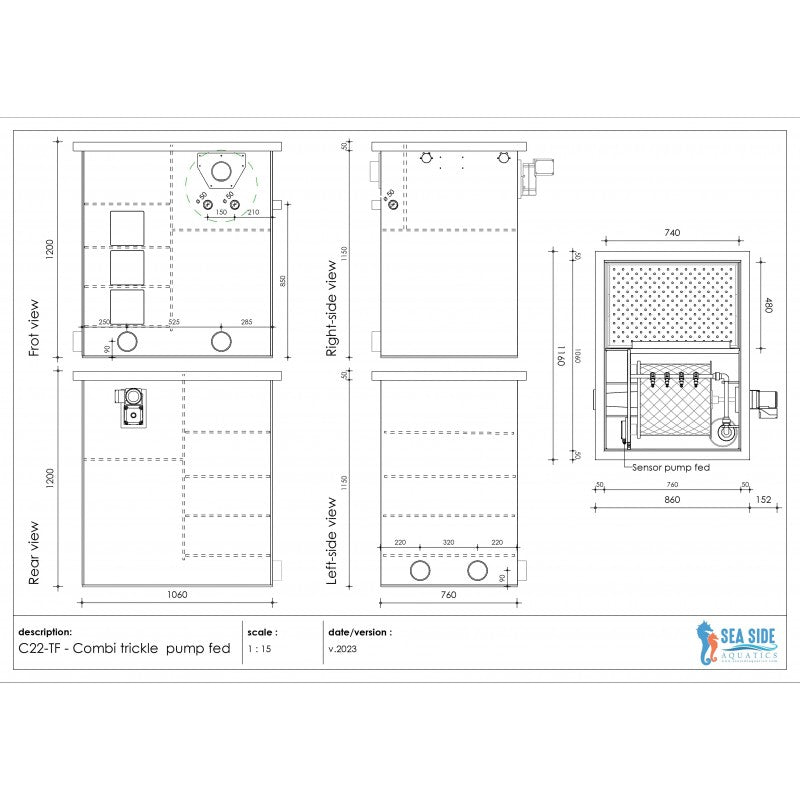

C22-TF Drum Filter With Bakki Shower - RDF

• Unit comes with Internal cleaning pump (spray pump for RDF)
• Can only be used in pump fed operation, not gravity fed operation.
• 6,000 GPH Max
• 3x 1.5" inlets
• 4 x 4" outlets

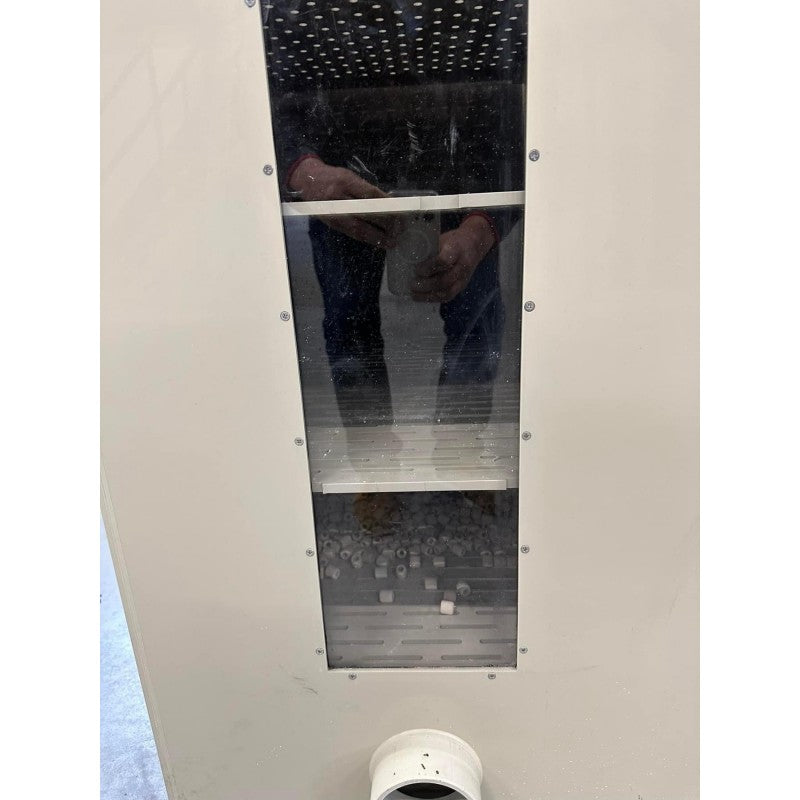

• 3x Media trays can take a total of around 5-6 CUFT of media.

Our newest wifi / digital controller (on some models as indicated) with 2-probe sensor and other add-on options such as:

• Wifi ( Included )
• SMS message ( Not Included )
• Temperature ( Not Included )
• Water Level Sensor ( Not Included )
• Water Top Off ( Not Included )
• Force Cleaning ( Included )
• Automatic Waste Tray Wash ( Included )
• and many more features please click on the below link to have access to the pdf files

All components assembled in modules and therefore quickly interchangeable. Made in Holland.
