The Aqua Ultraviolet Ozone Series combines proven UV-C sterilization with an integrated ozone generation module — adding a second oxidative attack on dissolved organics, nitrites, and parasitic life that pure UV can miss. The Ozone Series uses the same Classic Series UV chamber and lamp at every wattage, so flow-rate sizing matches the Classic line wattage-for-wattage. The added ozone module discharges directly into the water stream, attacking organic loads pure UV alone can't reach. Available in 8 W → 240 W across 3/4" and 2" port sizes for ponds from ornamental water gardens through commercial koi farms and aquaculture systems.
Key Features
- Hybrid UV + ozone sterilization — two attack mechanisms in one chamber

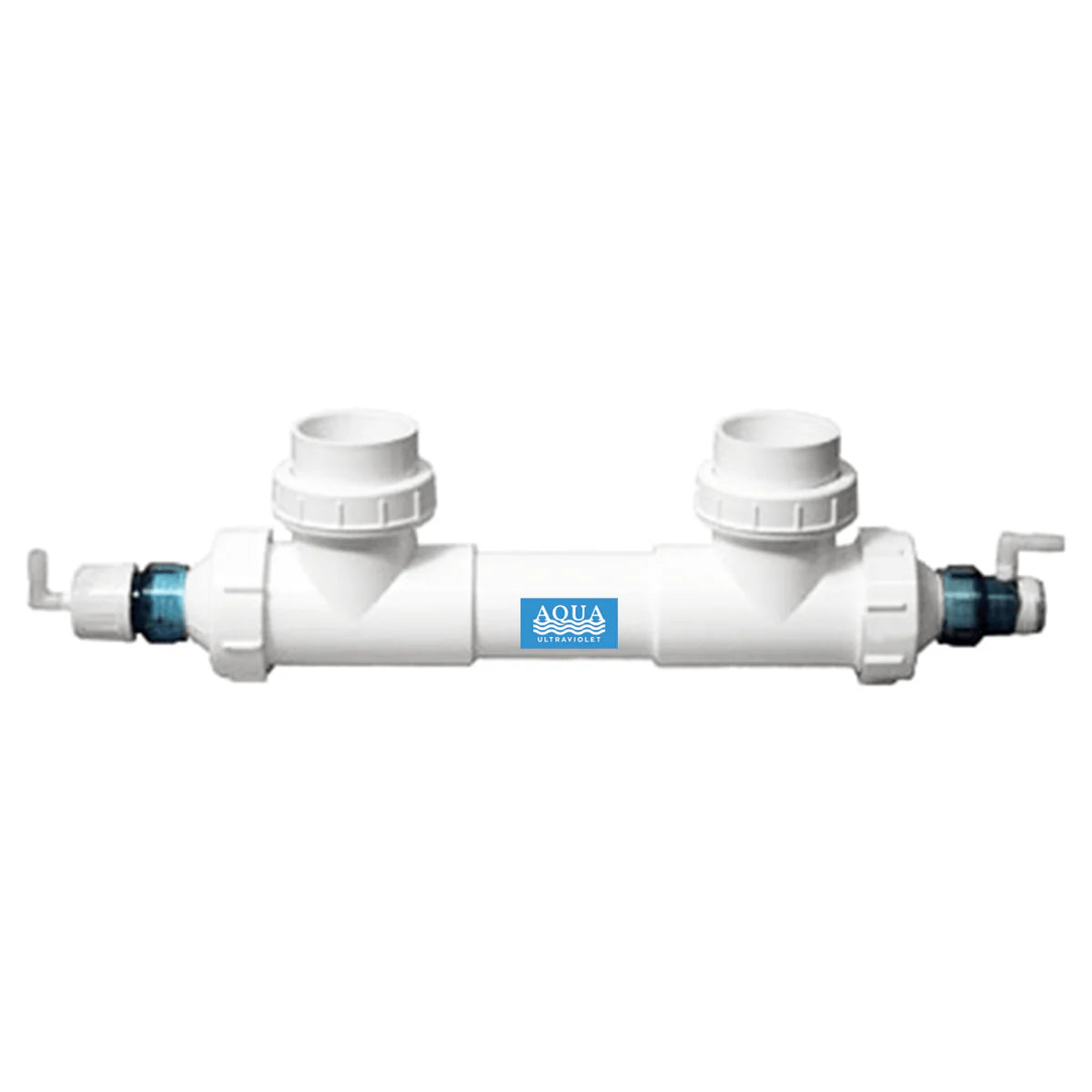

- Wattages 8 W → 240 W in 3/4" and 2" port sizes (matches Classic Series chamber)
- Same flow-rate sizing as Classic Series (Classic chamber + lamp + integrated ozone module)
- Ozone targets dissolved organics, nitrites, complex parasites — UV-resistant pathogens
- White housing only — Ozone Series is not offered in Black
- Optional 220-240V/60Hz variants for international and US 240V commercial circuits
- Made in the USA — Aqua Ultraviolet has manufactured UV sterilizers in Temecula, California since 1992
- Backed by Aqua Ultraviolet's full manufacturer warranty
Specifications
| Series | Ozone (UV + Ozone hybrid) |
|---|---|
| Body Material | Heavy-wall PVC, White |
| Lamp Type | T5 high-output UV-C — wattage matches unit (same as Classic Series) |
| Available Wattages | 8 / 15 / 25 / 40 / 57 / 80 / 114 / 120 / 160 / 200 / 240 W |
| Available Port Sizes | 3/4" Barb · 2" Slip Union |
| Voltage Options | 120 V / 60 Hz · 220-240 V / 60 Hz (commercial) |
| Lamp Life | ~14,000 hours (replace annually for peak UV-C output) |
| Ozone Module | Integrated — generates ozone from ambient air, discharges into water stream |
| Pond Sizing | Match by flow-rate table below; same flow rates as Classic Series at matching wattage |
| Mounting | Inline plumbing — no separate wet end required |
| Country of Origin | USA |
Flow Rate (GPH) by Wattage
Ozone Series uses the Classic Series chamber + lamp; flow rates are identical to Classic at matching wattage. The added ozone module increases sterilization effectiveness without changing optimal flow.
| Wattage | Max GPH (Clarification, ~30,000 µW/cm²) — green-water control | Min GPH (Sterilization, ~90,000 µW/cm²) — parasite + bacteria kill |
|---|---|---|
| 8 W | 642 GPH | 214 GPH |
| 15 W | 700 GPH | 233 GPH |
| 25 W | 1,200 GPH | 400 GPH |

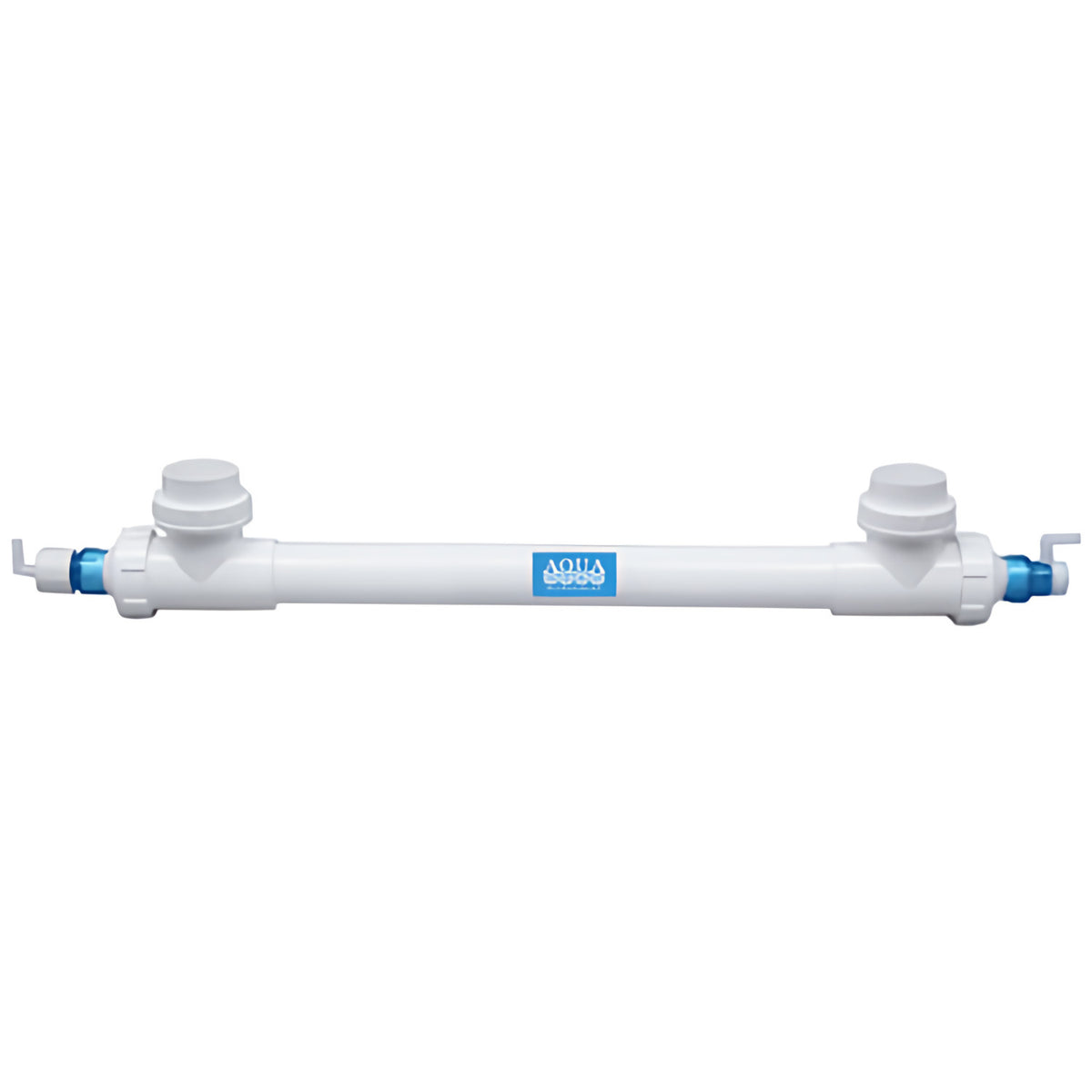

| 40 W | 2,900 GPH | 967 GPH |
| 57 W | 3,200 GPH | 1,066 GPH |
| 80 W | 3,678 GPH | 1,226 GPH |

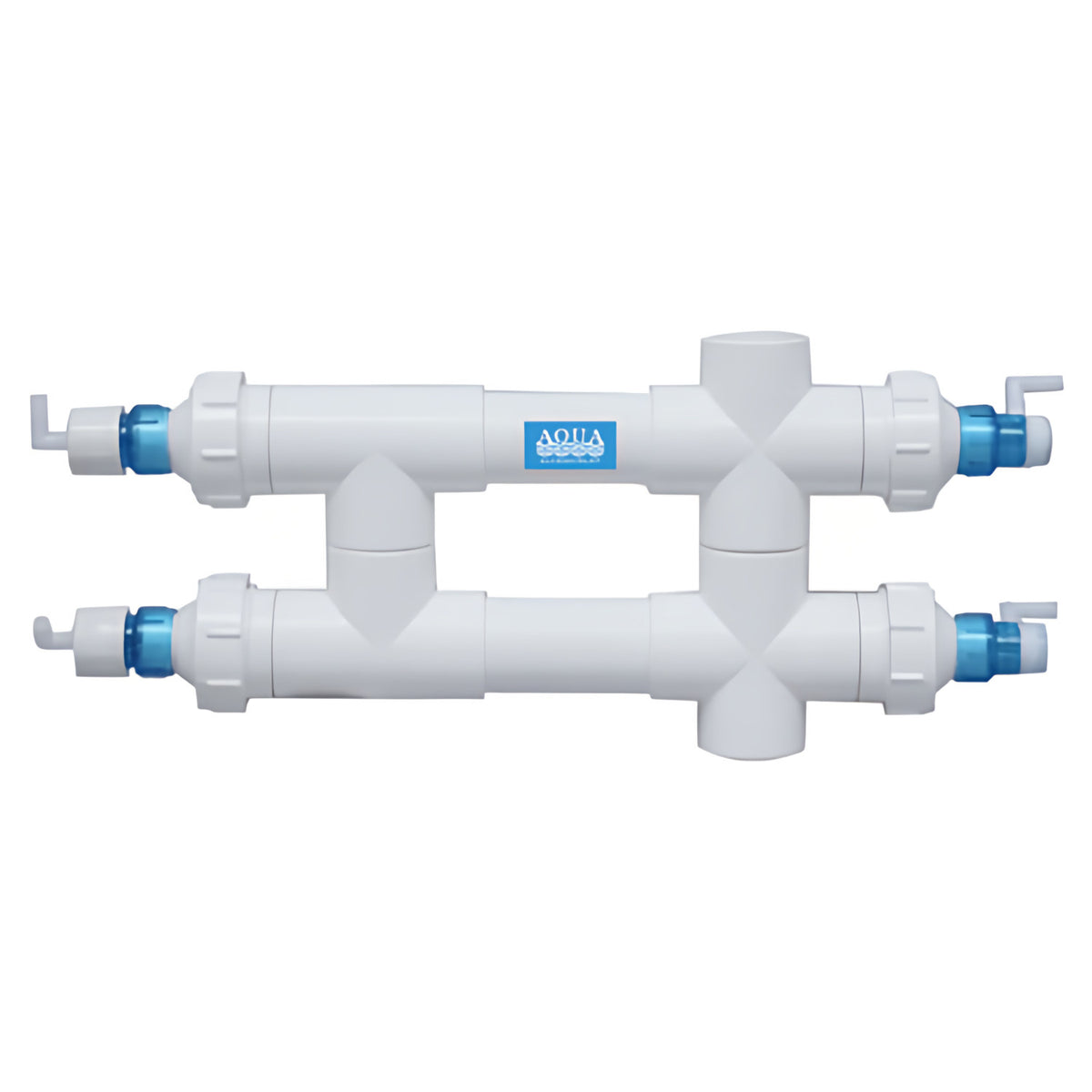

| 114 W | 3,900 GPH | 1,300 GPH |

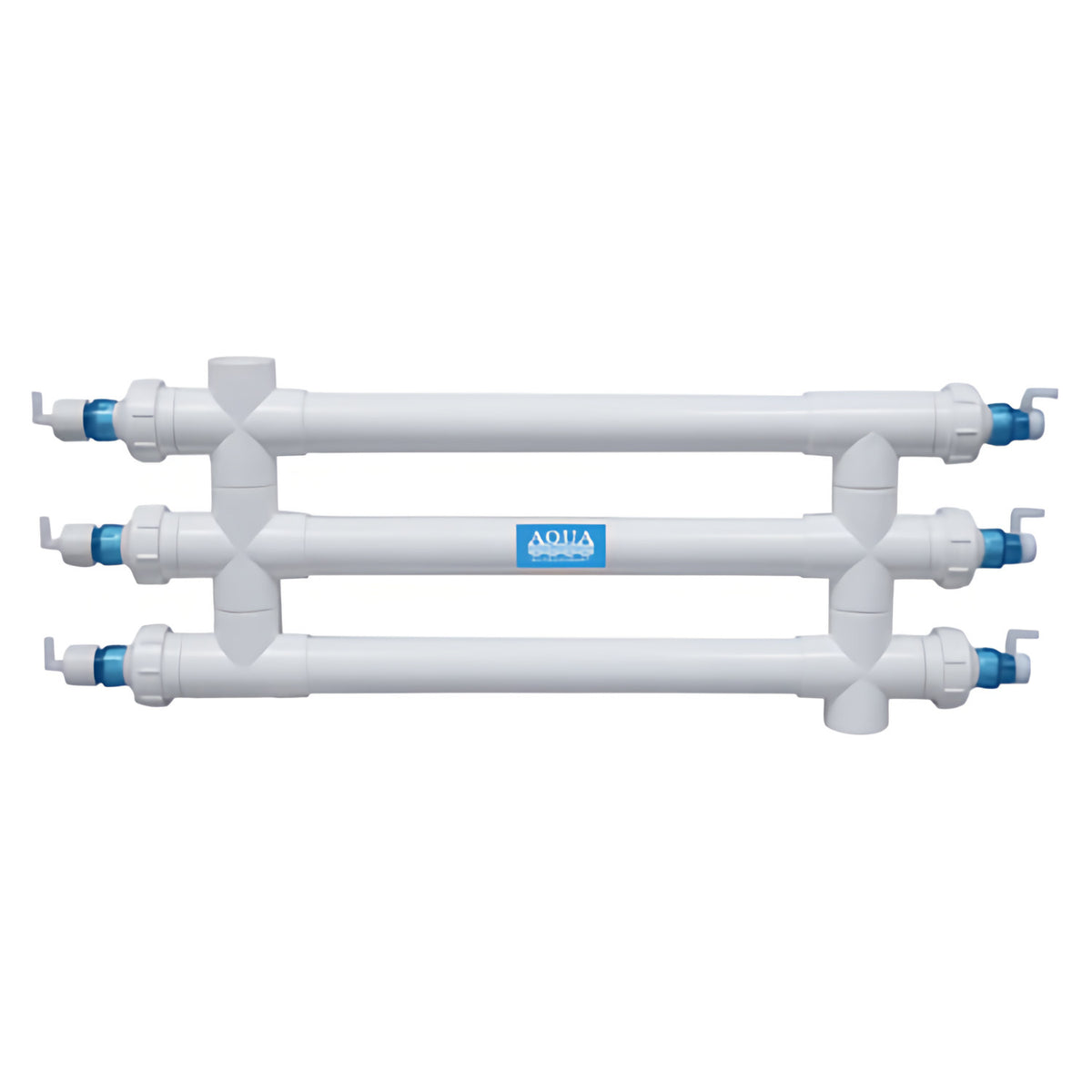

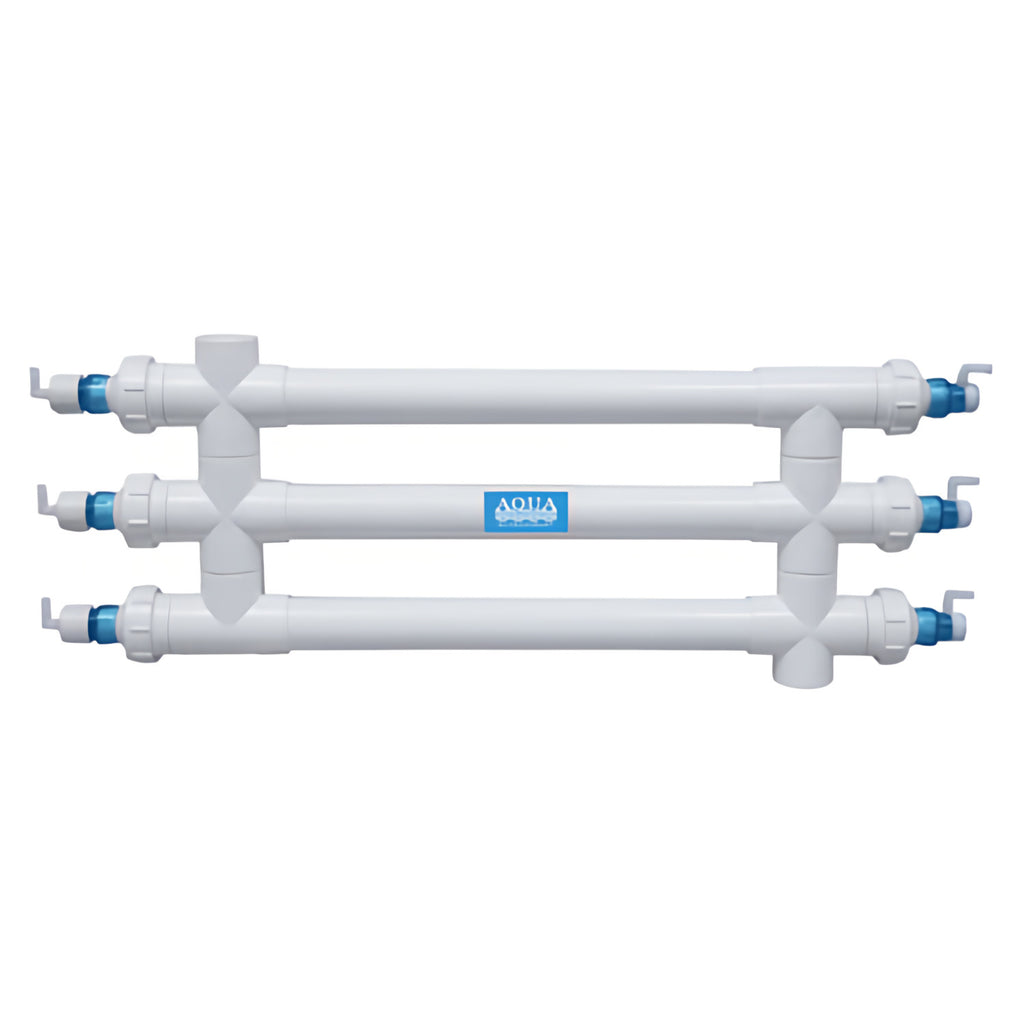

| 120 W | 4,080 GPH | 1,360 GPH |

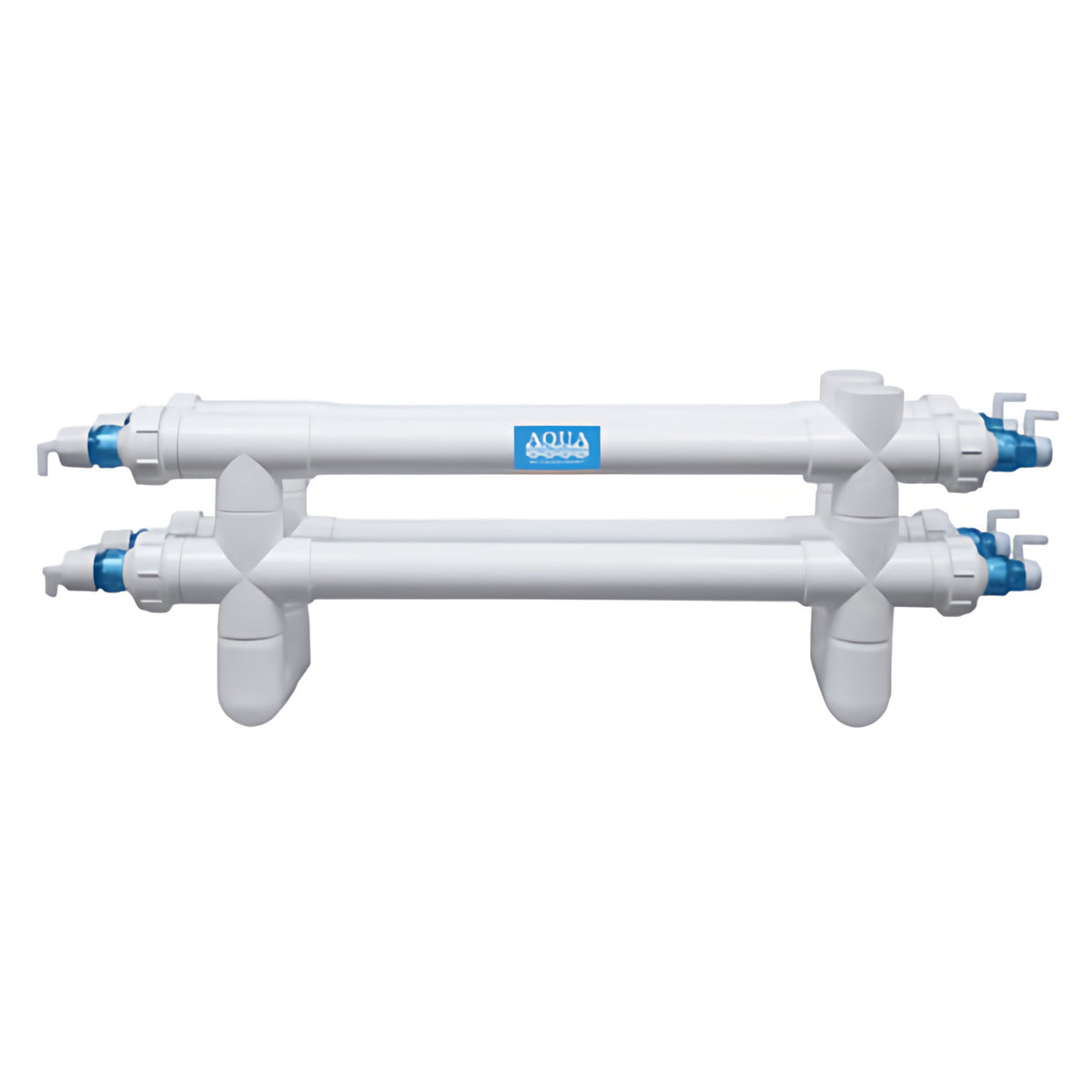

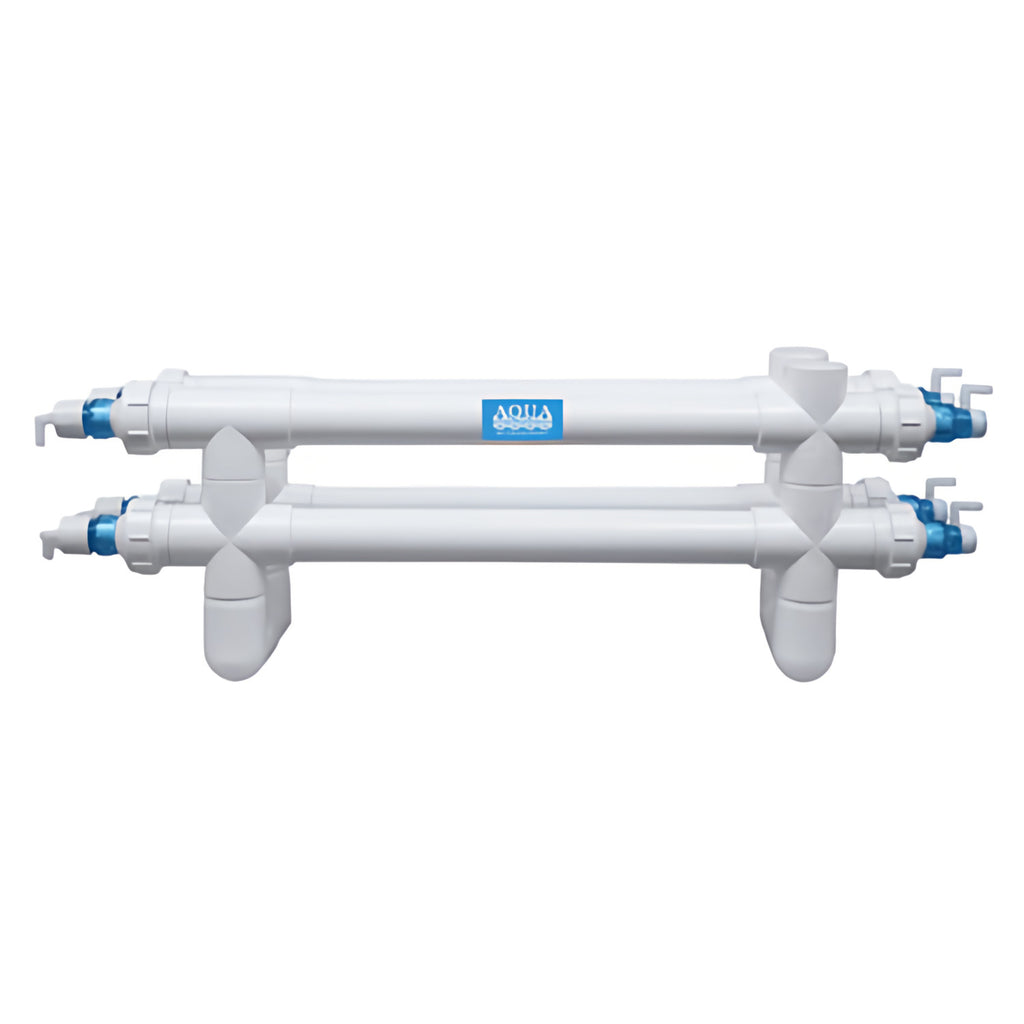

| 160 W | 5,400 GPH | 1,800 GPH |
| 200 W | 6,600 GPH | 2,200 GPH |

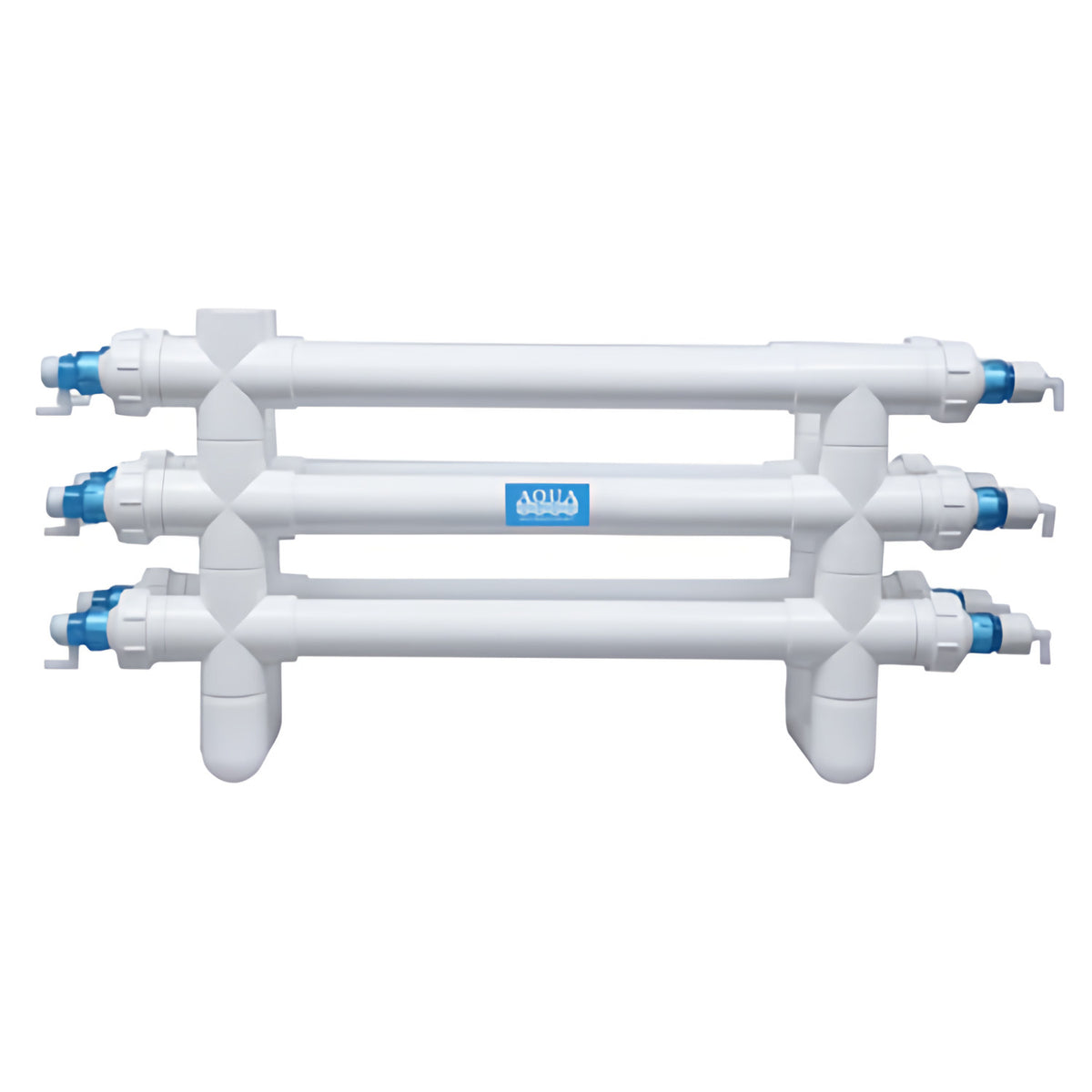

| 240 W | 7,200 GPH | 2,400 GPH |
Sizing rule: divide your filtered circulation rate (GPH) by the column you need. Pick a unit whose Max GPH ≥ your circulation rate to achieve clarification dose; pick a unit whose Min GPH ≥ your circulation rate to achieve full sterilization dose at that flow.
Frequently Asked Questions
UV-only vs UV+Ozone — when do I need ozone?
Pure UV-C is excellent for green-water (algae) and free-swimming pathogens. Ozone adds attack on dissolved organic compounds, nitrites, and complex parasitic stages where pathogens can hide from UV. Choose Ozone Series for heavily-stocked koi systems, aquaculture grow-out, or systems with high dissolved-organic loads. Choose Classic UV for general-purpose pond clarification.
Is the ozone safe for fish and pond plants?
Yes when sized correctly — Aqua UV's integrated module discharges low-concentration ozone that contact-kills pathogens then breaks down within seconds back to oxygen. Ozone toxicity is concentration × time; the unit's flow-through design keeps contact time below fish-toxic thresholds. Don't oversize (dose is matched to chamber GPH).
Are Ozone Series replacement bulbs the same as Classic?
Yes — same T5 UV-C lamps by wattage. A20015 (15W) works in both 15W Classic and 15W Ozone.
Do I need a separate quartz sleeve for the Ozone module?
No — the ozone generator is a separate sealed module from the UV lamp + quartz sleeve. Replace the quartz sleeve on the same annual schedule as Classic Series; the ozone module needs no annual service.
