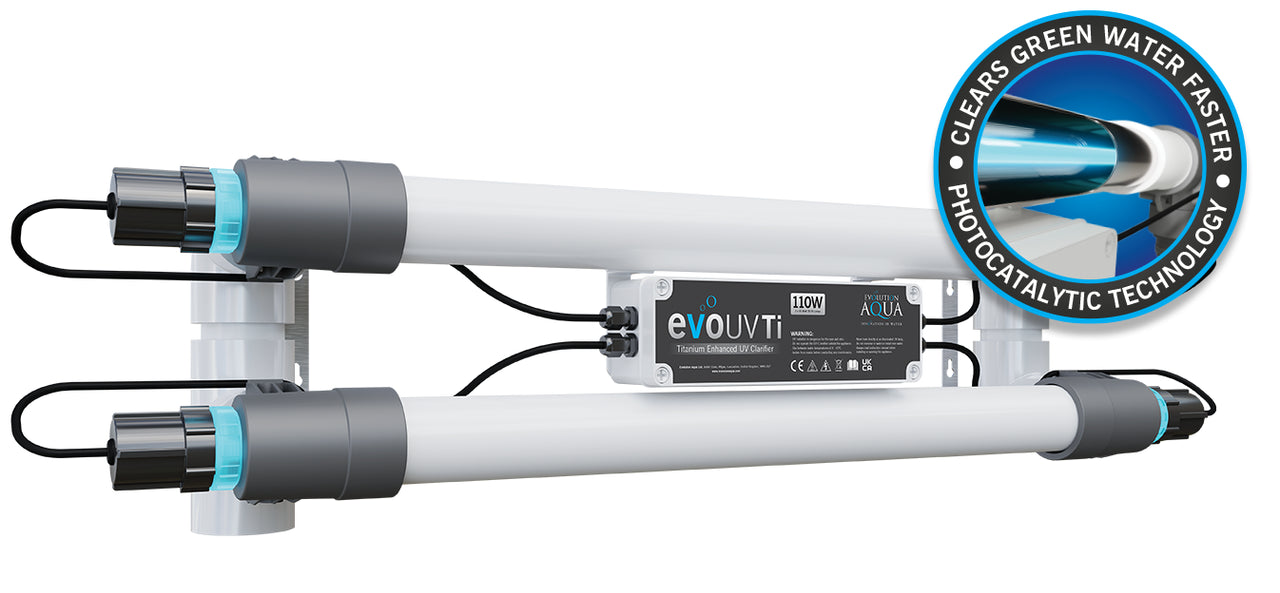

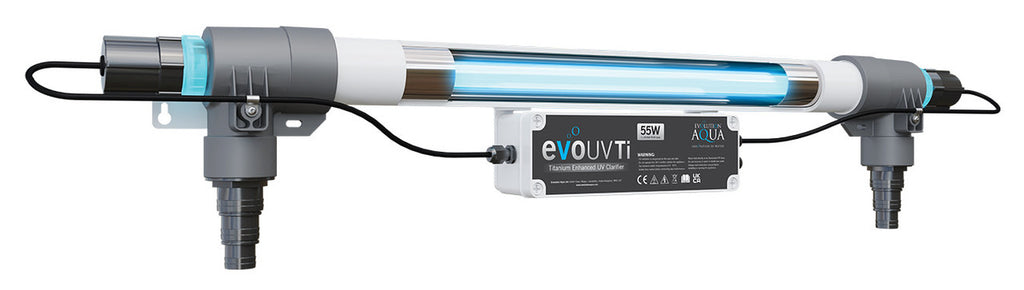

Evolution Aqua evoUV Ti – Titanium Enhanced UV Clarifier

Unlock the Power of Photocatalytic Purification

The Evolution Aqua evoUV Ti represents the pinnacle of pond water treatment—combining the proven effectiveness of ultraviolet sterilization with the added benefits of titanium-enhanced photocatalysis.

Unlike standard UV clarifiers that rely solely on direct exposure to ultraviolet light, the evoUV Ti uses a highly polished titanium lining to generate hydroxyl radicals—extremely reactive molecules that actively oxidize and destroy algae, bacteria, viruses, and organic contaminants in real time.

The result? Clearer, healthier pond water that stays clean longer, using one of the most advanced chemical-free filtration technologies available.

Key Features:

• Titanium-Enhanced Photocatalytic Chamber
  Generates hydroxyl radicals that oxidize and destroy organic contaminants far more effectively than UV light alone.

• Up to 15x More Effective Than Standard UV
  Combines UV sterilization with photocatalytic oxidation for superior algae and pathogen control.

• High-Efficiency Electronic Ballasts
  Features low-energy, IPX5-rated ballasts that are removable, serviceable, and built for reliable performance.

• Flexible Plumbing Compatibility
  Stepped hosetail fittings included with 55w unit for connection to flex pipe of 3/4", 1", 1 1/2". 110w unit can be connected to 2" rigid PVC, but does not contain additional fittings. See Instruction Manual below for details.

• Robust Mounting Hardware Included
  Comes with stainless steel brackets for secure wall or frame mounting.

• Quartz Sleeves for Maximum UV Penetration
  Durable sleeves ensure optimal UV intensity and protect internal components.

• 2-Year Manufacturer Warranty

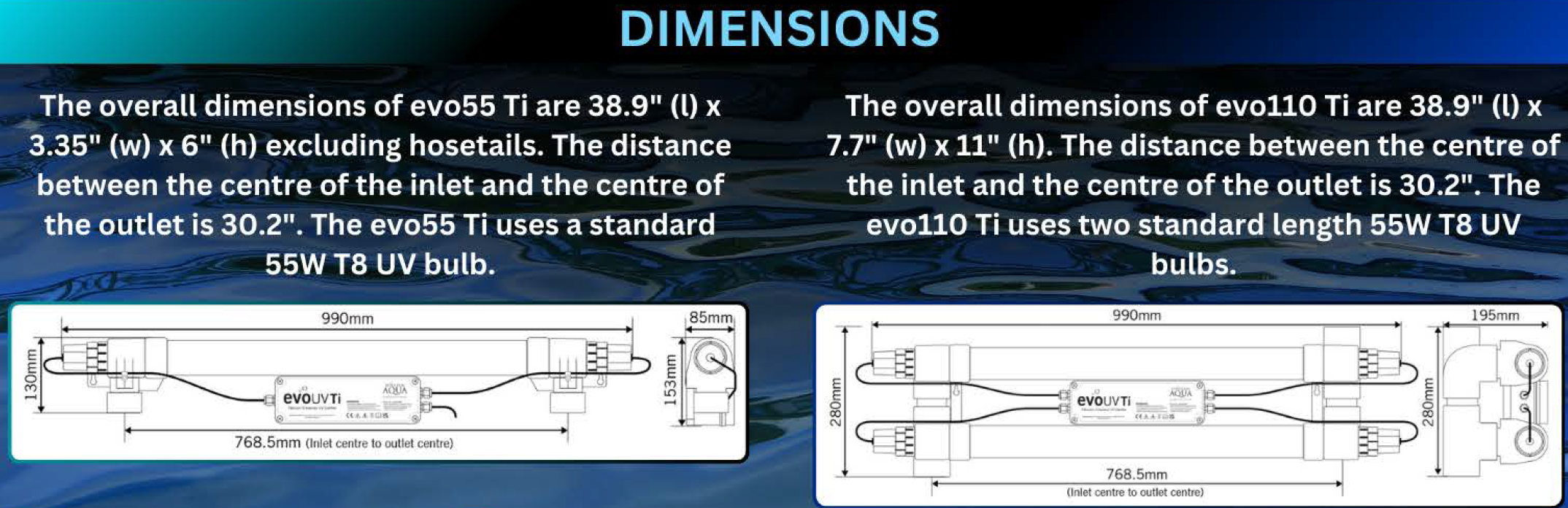

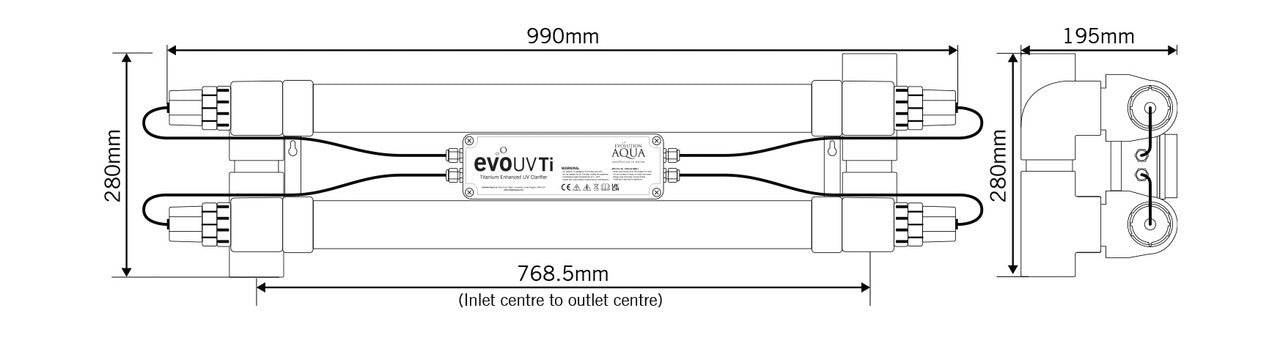

Sizing Guide:

Dimensions exclude fittings. Add approximately 3.35" width and 6" height for total installed clearance.

How It Works:

When water flows through the evoUV Ti chamber, it is exposed to high-intensity UV light. The titanium lining inside the clarifier acts as a photocatalyst, generating hydroxyl radicals that instantly neutralize:

• Free-floating algae

• Pathogenic bacteria

• Viruses

• Organic pollutants

This dual-action process not only sterilizes, but also oxidizes and breaks down contaminants into harmless byproducts like water and carbon dioxide—without the need for chemicals or extra maintenance.

Ideal For:

• Koi ponds and ornamental water gardens

• High-demand filtration setups

• Applications requiring advanced algae and pathogen control

• Systems where traditional UV clarifiers fall short

Questions?

Need help determining the right model or how to integrate the evoUV Ti into your current pond system? Contact our team—we’re here to help you make your pond the best it can be.

evoUV Ti - Instruction Manual - PDF
