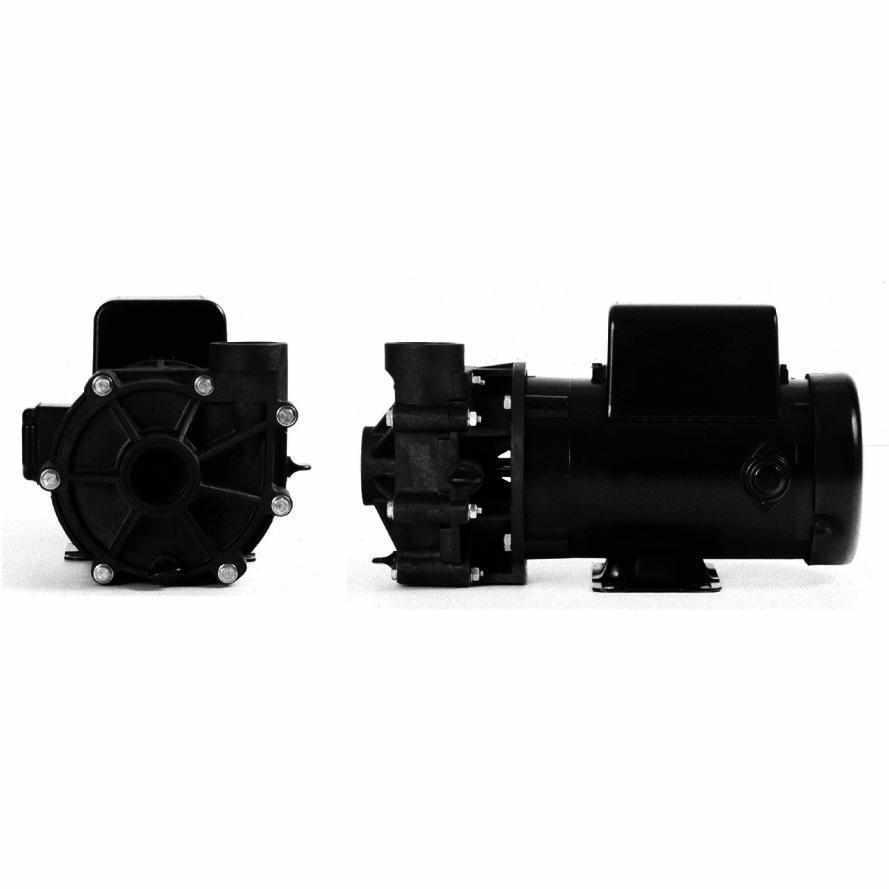

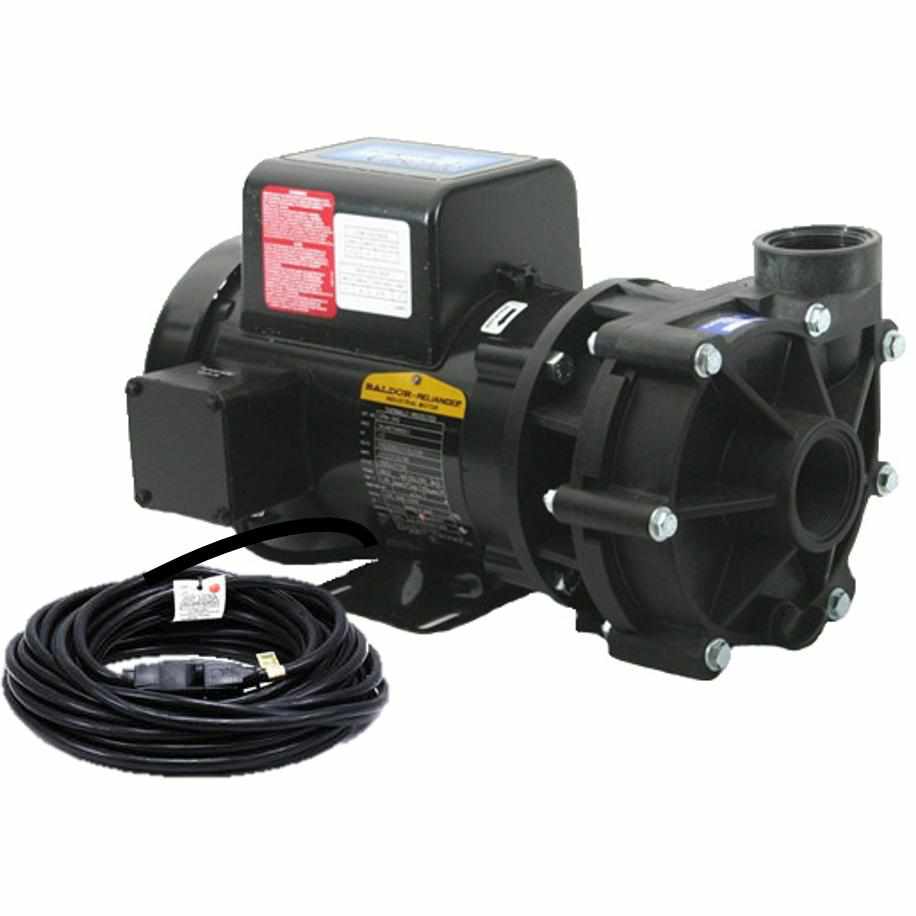

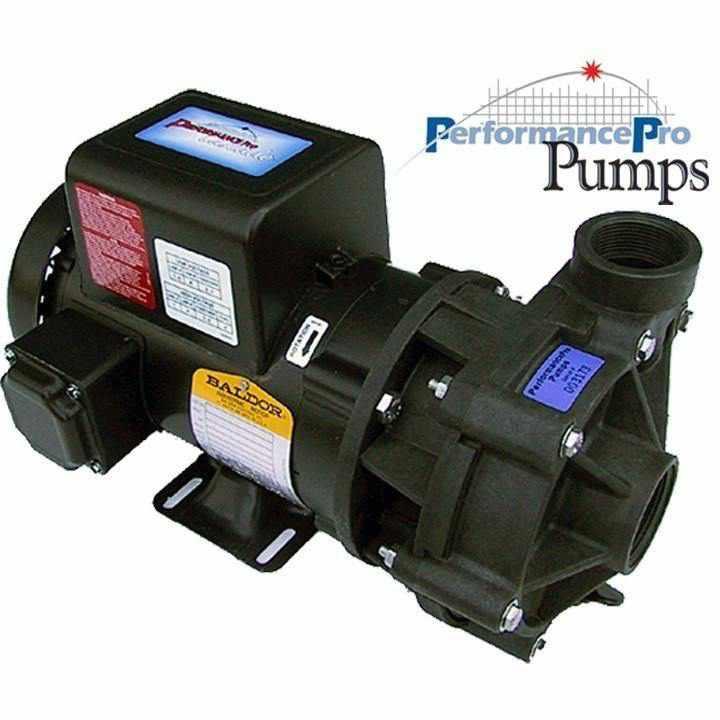

The Cascade series is a highly efficient, industrial grade, reliable pond pump. Ideal for ponds, water features, or general transfer and recirculation applications. Cascade pumps produce exceptional flow rates at exemplary head pressure.
Durable, industrial-grade Noryl and Polypropylene components are built for exceptional longevity offering both corrosion and abrasion resistance.
Offered in low RPM units from 1/8 hp to 1/4 hp and high RPM units from 1/3 hp to 2 hp. Each unit offers exceptional flow rates with excellent energy efficiency to suit a variety of applications.
Cascade Low RPM Specs:
- Top-of-the-line motors. All 1725 rpm units are totally enclosed for excellent protection and reliability
- 1 ½” ports. No fittings included
- Money-saving high-efficiency pump and motor units
- Ideally suited for flooded suction applications
- Ready for hard wiring or an optional cord and plug
- Both pump and motor are designed for quiet operation
- External out of water pumps help protect your investment from potentially dangerous oil leaks and electrical hazards
- Saltwater Kit available (additional purchase)
- 3-year manufacturer's warranty applies to freshwater applications. 1-year manufacturer's warranty for saltwater applications.
Flow at each head height
Gallons per hour each model moves at a given head, read from PerformancePro's published pump curves. Head is the total height the pump pushes against: the vertical lift from the pond surface to the outlet, plus friction loss in the pipe and fittings. A blank cell is a height outside the curve PerformancePro publishes for that model. Models ending in -C are the same pumps with a 115v 8 ft cord.
| Head | C1/8-22 | C1/8-26 | C1/8-36 | C1/4-44 | C1/4-49 |
|---|---|---|---|---|---|
| 4 ft | 1,860 | 2,220 | |||
| 6 ft | 1,620 | 2,040 | 3,540 | 4,320 | |
| 8 ft | 1,440 | 1,860 | 3,180 | 4,020 | 4,740 |
| 10 ft | 1,200 | 1,680 | 2,820 | 3,720 | 4,500 |
| 12 ft | 960 | 1,440 | 2,340 | 3,420 | 4,200 |
| 14 ft | 660 | 1,260 | 1,680 | 3,060 | 3,840 |
| 16 ft | 960 | 2,700 | 3,420 | ||
| 18 ft | 600 | 2,220 | 3,000 | ||
| 20 ft | 1,680 | 2,400 |
Specs by model
| Model | Max flow | Max head | Max power | Amps (115V / 230V) |
|---|---|---|---|---|
| C1/8-22 | 2,160 GPH (36 GPM) | 15.4 ft | 130 W | 2 / 1 |
| C1/8-26 | 2,460 GPH (41 GPM) | 18.5 ft | 160 W | 2 / 1 |
| C1/8-36 | 3,780 GPH (63 GPM) | 15.7 ft | 200 W | 2 / 1 |
| C1/4-44 | 4,380 GPH (73 GPM) | 21.8 ft | 280 W | 3.5 / 1.75 |
| C1/4-49 | 4,860 GPH (81 GPM) | 22.4 ft | 340 W | 3.5 / 1.75 |
Max flow is the highest flow on PerformancePro's curve. Max power is the most the motor draws. Both are PerformancePro's published figures.
Custom Options Offered by Manufacturer: Please specify at time of order
- Saltwater Kit (+$121.60) - Includes PVC shaft sleeve and PTFE coated S.S. seal w/ SiC faces installed in pump. You can add it to your cart from our saltwater kit page, with one kit per pump in the same order.
- Custom Cord lengths: (2026 list price: 14 gauge cord $4/ft plus $31 for a 115V plug or $37 for a 230V plug; 12 gauge cord $5/ft plus $42 or $47) if your installation requires a non-standard cord length (something longer than the standard 8ft cord), we can have this custom built for you from the manufacturer without voiding the warranty. Please allow 2-5 extra business days for this option. Please specify at time of order whether you will be using a dedicated 15amp or 20amp circuit.
For custom options, we always find it best to contact us to discuss prior to ordering. We'd be more than happy to discuss and help with sizing
Need more? Download the PerformancePro Cascade Low RPM Instruction Manual here (PDF)
