Matala Heavy Duty Air Manifolds

Save $7.20
MatalaSKU: SC3-12

Size: 1/2" - 3 Valve Heavy Duty Air Manifold
Price:
Sale price$48.00 Regular price$55.20

Shipping calculated at checkout

Earn [points_amount] when you buy this item.

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
41101kg
shipping emissions removed
That's like...
105217
miles driven by an average gasoline-powered car

Description

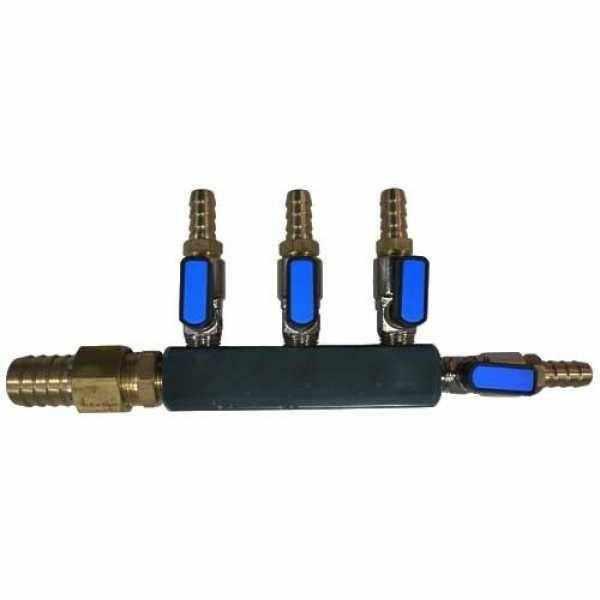

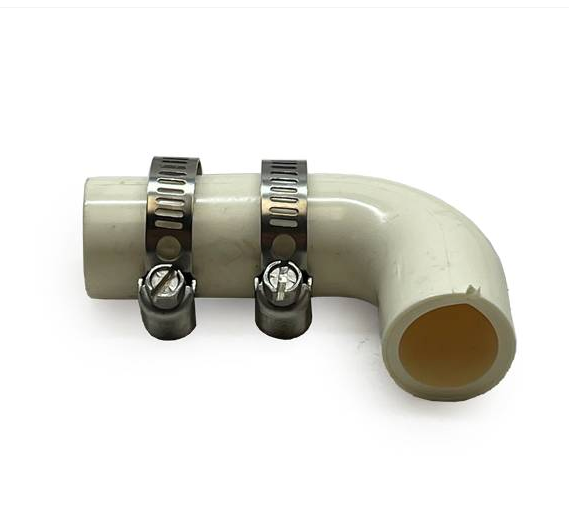

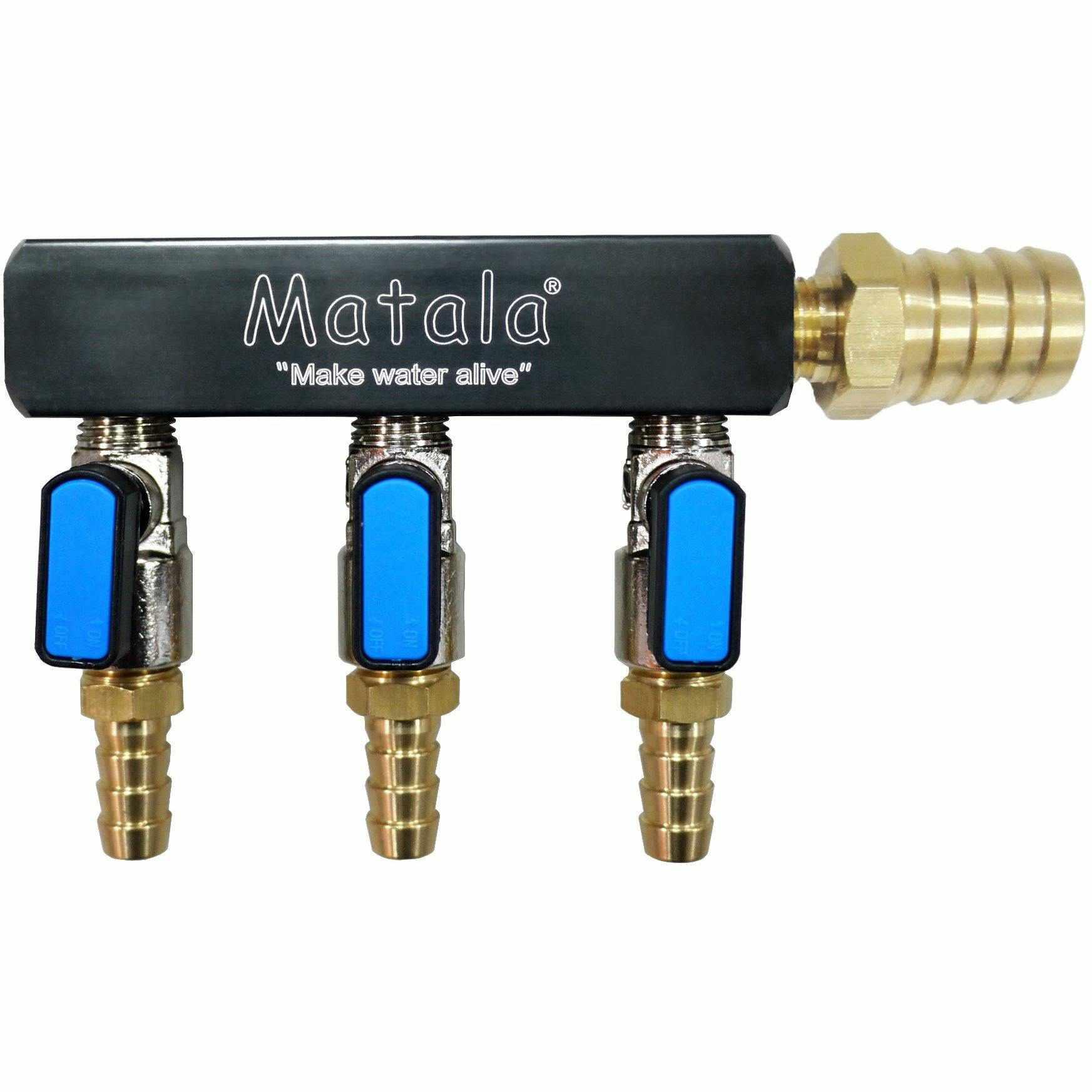

Matala Heavy Duty Air Manifolds are built tough. Heavy brass construction for dependable use. The HD manifolds are available in 2-way 3-way or 4-way. The inlet barb which connects to the air pump is a 3/4" barb and will fit into the white L tube that comes with your Hakko air pump. The outlet barbs are available in 3/8", 1/2" or 5/8".

  • The Hakko Air Pumps HK 25L through HK 80L will handle 2 way, 3 way, or 4 way manifolds of any barb size. The outlet fitting of the HK25L through HK100L pump is a 5/8" diameter. You can connect the 5/8" pump outlet directly to the 3/4" manifold inlet with a short piece of 5/8" or 3/4" hose ( supplied with air pump).
  • The Hakko HK100L should be used with the 2 way with 5/8", 3 way with 3/8" or above, or 4 way with 3/8" barb or above so as not to restrict air flow. The outlet fitting of the100L pump is a 5/8" diameter. You can connect the 5/8" pump outlet directly to the 3/4" manifold inlet with a short piece of 5/8" or 3/4" hose ( supplied with air pump).
  • The Hakko HK120L should be used with the 2 way with 5/8", 3 way with 3/8" or above, or 4 way with 3/8" barb or above so as not to restrict air flow. The outlet fitting is 1". You will need a reducer hose from 1" to 3/4" (supplied with HK120L) in order to connect the HK120L to the manifold inlet. The HK120L air pump should feed one 1 inch hose or two 5/8" hoses or four 3/8" hoses to feed your air diffusers.
  • The 1/4 HP Rocking Piston Compressors can use 2 way or 4 way manifold.
  • The 1/2 HP and 3/4HP rocking Piston Compressors should use the 4 way manifold.
