Description
Solar Sub-Surface Aeration System
The Scott Aerator Solar Sub-Surface Aeration System provides all of the benefits of traditional aeration without the costly batteries, AC wiring, and ongoing expense of grid power. Even during cloudy conditions the Solar Sub-Surface Aeration System provides low-maintenance, high-volume solar aeration at any site. This system is ideal for ponds up to 2.5 acres. Looking for something bigger? Check out our Solar XL Sub-Surface Aeration System!
Each unit is ruggedly constructed using high-quality, American-made components with a proven history of durability and comes with a two year warranty! The Scott Aerator brushless compressor offers over three times the system life of brushed permanent magnetic motors. A vertical 3" (3-1/2" OD) by approximately 10 feet in length galvanized pole for mounting is not included.
INNOVATIVE DESIGN, INSIDE & OUT
- Quick and easy installation by anyone
- Simple, plug and play wiring
- Integrated low-frequency sound reduction system
- External air connection ports for ease of installation
- Washable and re-usable primary air intake filter
- Dramatically increased daily run hours
- All-welded steel base with powder coat finish
- Rubber compressor isolation mounts
- Compact size
- Pole-mount enclosure
- Fiberglass-reinforced enclosure will NEVER rust
- Liquid-filled, low-temperature pressure gauges
- 100% factory testing ensures high quality
- Stainless steel locking hasps & hardware will not rust
- Electronic over-current protection
- High-flow ball bearing cooling fan
- Rated depth of 30'+
Specifications

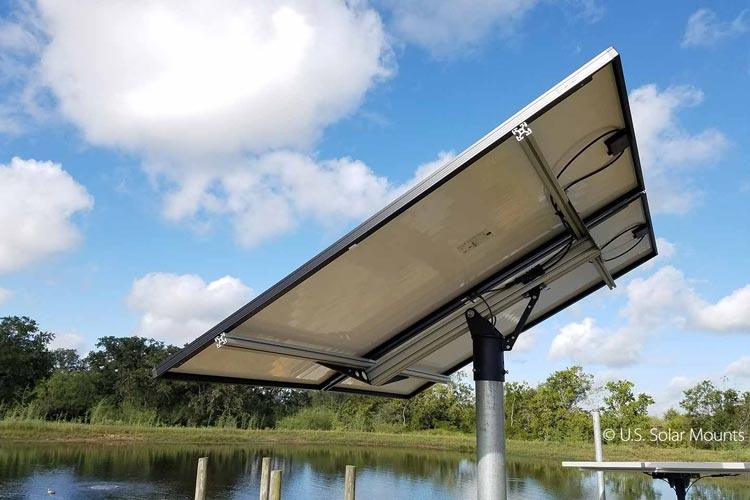

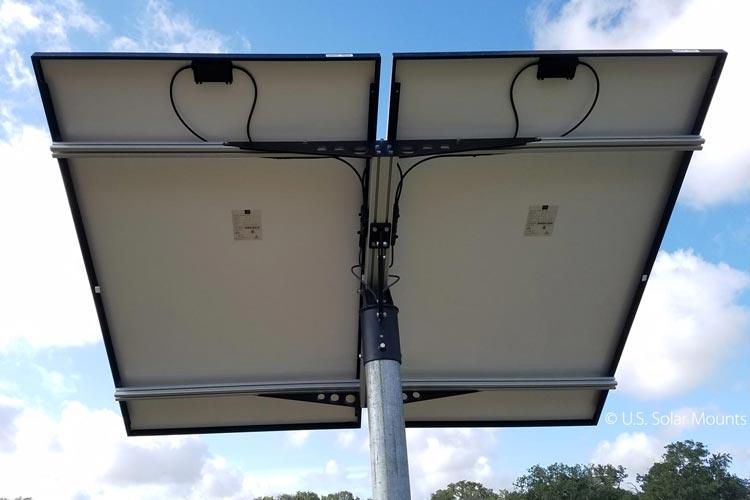

- 60-cell, 300 watt, high-efficiency solar module (39"x65"), with fully adjustable top-of-pole racking
- Individual rocker-style circuit breakers
- High-efficiency, brushless, rocking-piston compressor
- 2.5 SCFM / 30'+ / 25 psi
- Brass automatic pressure relief valve
- Liquid-filled, stainless steel pressure gauge
- 2 – Full-flow brass ball valves
- <65 db @ 6'
- 1 – 3/8" x 300 feet airline

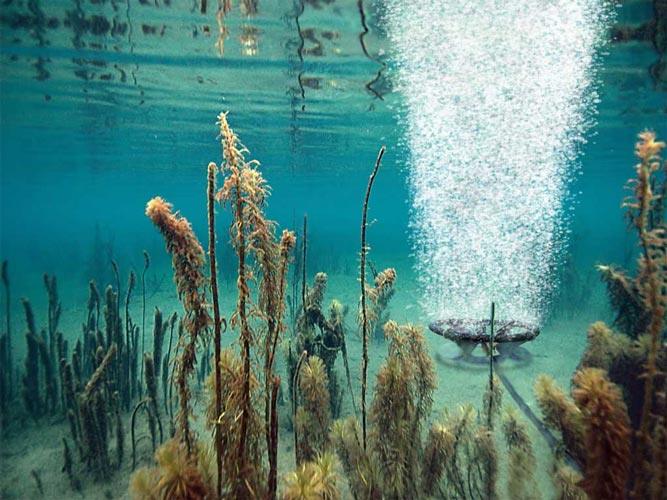

- 2 – Self-weighted diffusers
- 78 CFM Automatic active ventilation
- Two year warranty on all components
Specs and Assembly Instructions (PDF)
