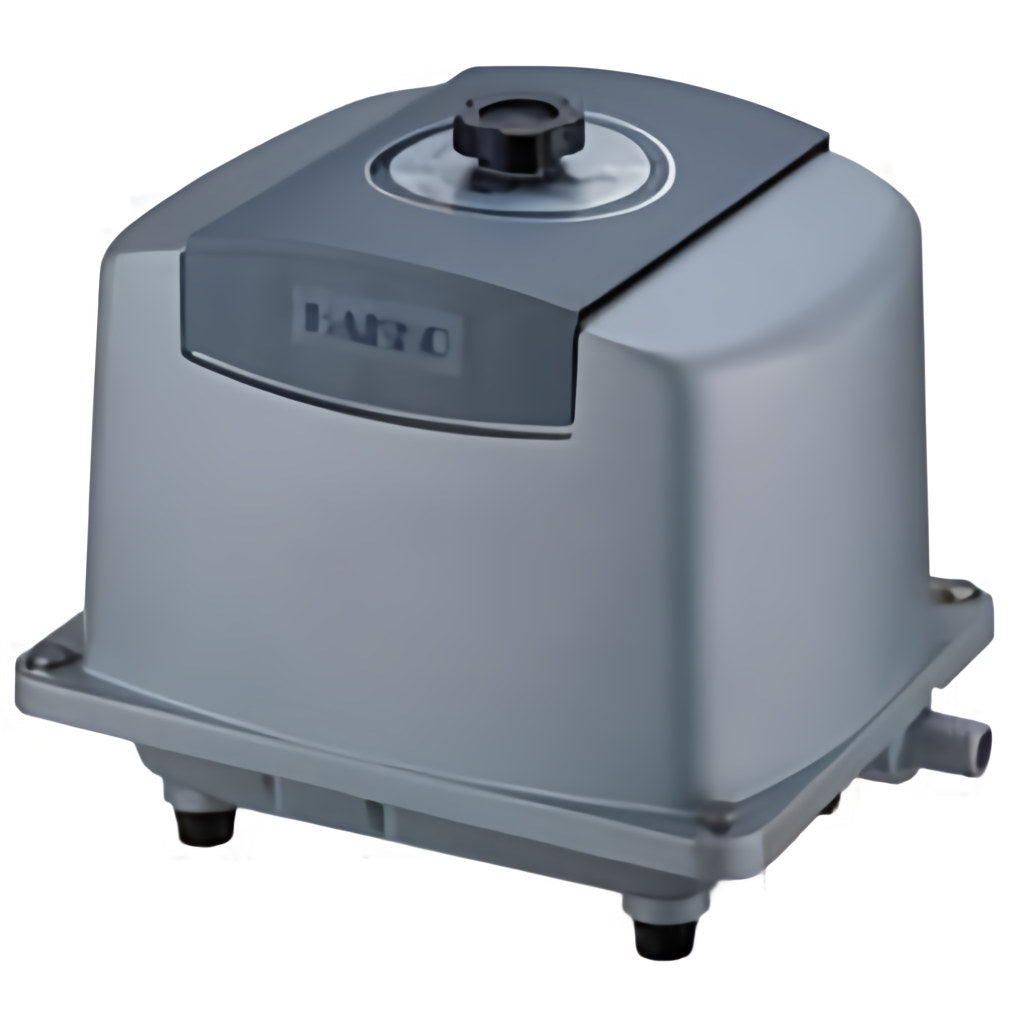

The Hakko new HK-120LH linear air pump represents a top-of-the-line Linear Air Compressor with 36-month warranty. The new HK-120LH has a newly designed magnet (actuating armature) which helps the pump to run cooler than the orignal HK-120L.
The Hakko Air Pump 120 will deliver a maximum of 138 Liters Per Minute.
This is a cast aluminum body style. It is a small unit with surprisingly high output. The Hakko air pumps are built to last with a very durable body and mechanics meaning years and years of everlasting quality airflow.
Very low noise 32/38 dB at 1 meter, low power consumption, Silent operation, Completely oil-free, Overload protection with Auto off/on switch for overheat situations. Low power consumption. UL and CE listed for outdoor use.
Outlet fitting is 1" O.D. 6 foot power cord supplied.
No oil is needed for lubrication making the Hakko easy to maintain.
You can differentiate between the original HK-120L and the new HK-120LH by the color of the knob on top of the unit. The original HK-120L has a black knob and the new HK-120LH has a gray knob.
When ordering replacement magnets for the new HK-120LH be sure to order the HK-M120H/200/250 magnet. If you have the original HK120L (prior to 2015) air pump please order the HK-M120-magnet.
The replacement diaphragm kit HK-D100/120 fits both the HK-120L and the HK-120LH.
| Model / Item | HK-120LH | Application: | Features & Benefits: | |
|---|---|---|---|---|
| Rated Voltage (V) | AC 115 (AC 110/115/120 or AC 220/230/240) |
|
|
|
| Power Supply Frequency (Hz) | 56 / 60 | |||
| Normal Pressure Bar (psi) | 0.20 (2.84psi) | |||
| Rated Performance lpm (cfm) | 121 | |||
| Power (W) | 126 | |||
| Noise Level (dB) | 42 | Maximum dimensions: | Certificate: | |
| Closed Pressure / Bar | 0.54 | |||
| Closed Pressure / psi | 7.8 | 260 x 199 x 244 mm |
|
|
| Weight (kg) | 8.9 / 19.6 | |||
The graph below shows water depth in feet.
