Description

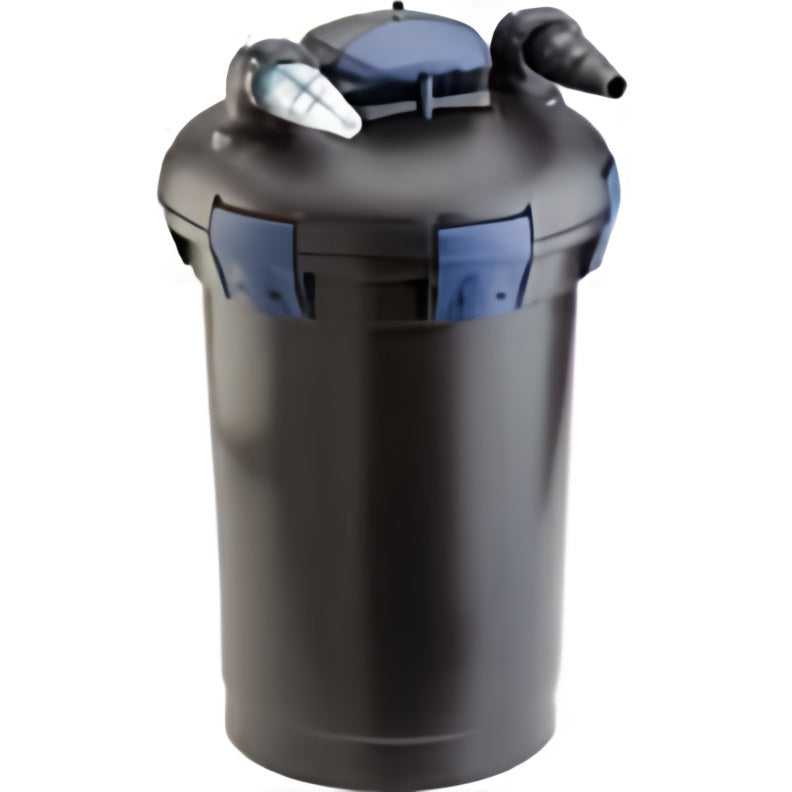

The BioPress UVC pressure filter has been designed with all of the key attributes accessible from the lid allowing the canister portion of the unit to be buried and concealed. This unique design incorporates a handle that allows you to compress the filter pads clearing the debris without opening the lid. Additionally, the 9 Watt Ultraviolet light will eliminate algae from the pond.
Compact design with expansive application
The BioPress UVC 1600 has been built to allow for easy inspection into the body of the filter by making all parts accessible through the open lid. This allows you to bury the BioPress up to the lid to hide in your landscaping, leaving your pond shore free of pond equipment. The BioPress really is a fantastic choice for the pond owner who wants big power in a small scale.
EASILY CONCEALED

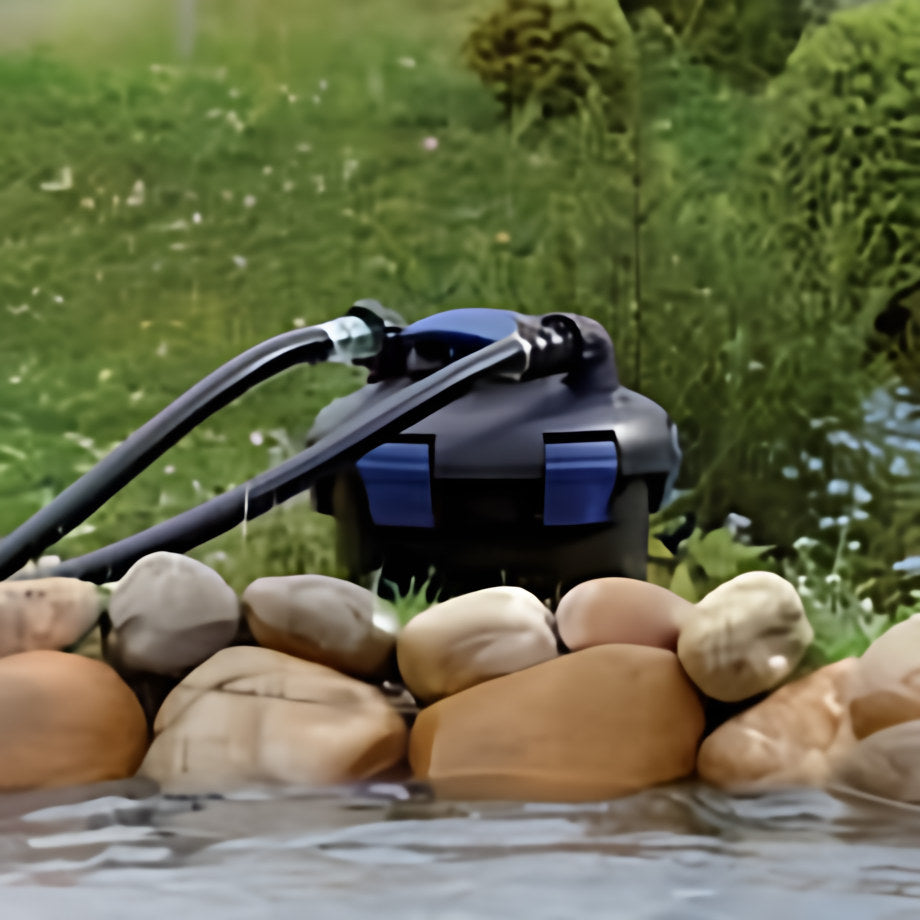

The BioPress UVC 1600 has been designed to allow the user to bury the entire bottom section up to the lip of the lid. This affords the pond owner to have a great pressure filtration system without obscuring any line of sight to your pond.

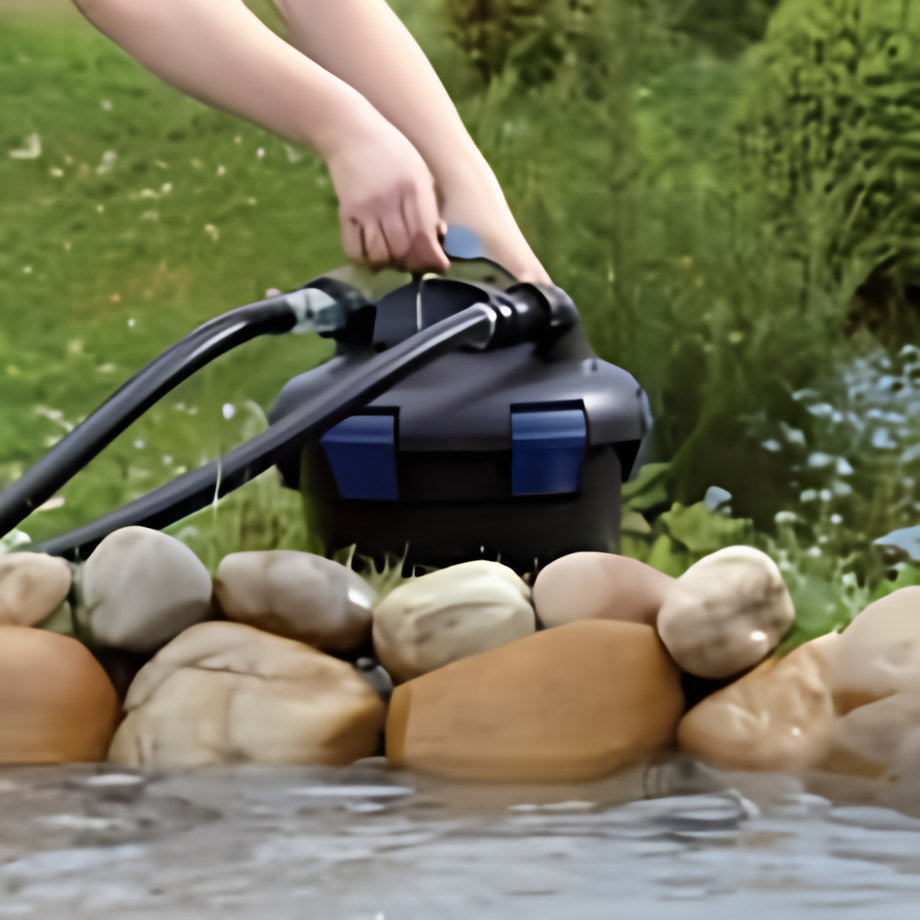

The BioPress UVC 1600 has been designed much like our FiltoClear pressure filters, with a pull handle on the top to help loosen solid particles from the filter pads. With an included valve that allows you to dump the sludge caught in the filter over the time of its use.
The BioPress 1600 has an included UV-Clarifier, which will help keep your pond clean and clear throughout the year. The 9 Watt UVC is ideal for ponds up to 1600 gallons in size, and will function optimally up to that range. Amazing power in a compact design.
Clear Water Guarantee
When a pond owner uses specifically marked CWG products, they are guaranteed to have clear water and minimal maintenance. Oase guarantees that when a tape measure is placed vertically into the pond to a depth of 3 feet, the water will be clear enough to read the 1-inch mark at the tip of the tape measure.
Pump Compatibility:
- BioPress 1000 (7W UVC included) - AquaMax Eco Classic 1200
- BioPress 1600 (9W UVC included) - AquaMax Eco Classic 1900 or AquaMax Eco Premium 2000
- BioPress 2400 (9W UVC included) - AquaMax Eco Classic 2700 or AquaMax Eco Premium 3000
View Oase BioPress Pressure Filter Instruction Manual here (PDF)
|
Specs |
BioPress UVC 1000 |
BioPress UVC 1600 |
BioPress UVC 2400 |
| Dimensions | 8.9 x 13.2 in. | 13.8 x 17.7 in. | 13.8 x 22.4 in. |
| Operating Voltage | 120V / 60 Hz | ||
| Power Consumption | 9 Watts | 10 Watts | 10 Watts |
| Power Cable Length | 10 ft. | ||
| Net Weight | 5.5 lbs. | 9.7 lbs. | 11.9 lbs. |
| UVC Power | 7 watts | 9 watts | |
| Pollutant level indicator | Yes | ||
| Number of blue filter foams | 1 | 2 | |
| Number of black filter foams | 2 | 1 | 2 |
| Number of bio-media | - | 20 | 30 |
| Flow Rate | 1050 GPH | 2000 GPH | 2120 GPH |
| Head Height | Up To 17 Feet | ||
| Operating Pressure | Up To 2.9 PSI | ||
| Connections | 1 1/2 in. | ||
| Pond Size (no fish) | 1000 Gallons | 1600 Gallons | 2400 Gallons |
| Pond Size (fish stock) | 500 Gallons | 800 Gallons | 1200 Gallons |
| Pond Size (Koi) | 250 Gallons | 400 Gallons | 600 Gallons |
| Warranty | 2 years | ||
| Part Number | 45451 | 40348 | 45452 |
