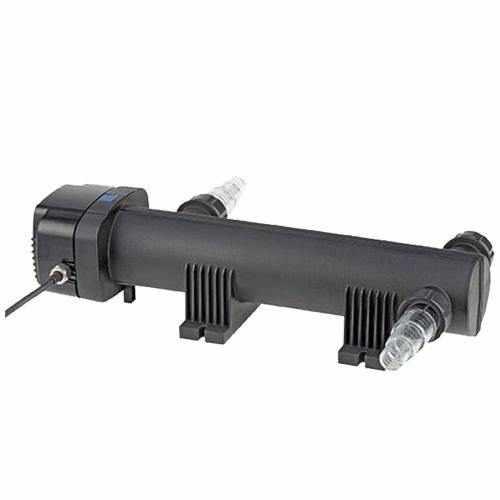

The Oase Vitronic UV units are simple, yet flexible, UV clarifiers designed to inter-operate with all filter systems, although best suited for OASE BioSmart filters. It helps in the reduction of algae and phytoplankton, as well as limiting the growth of harmful pathogens. The Vitronic UV-Clarifier is truly a great choice not only based on its ability to be integrated, but also because of its price.
EASY INSTALLATION AND SET UP

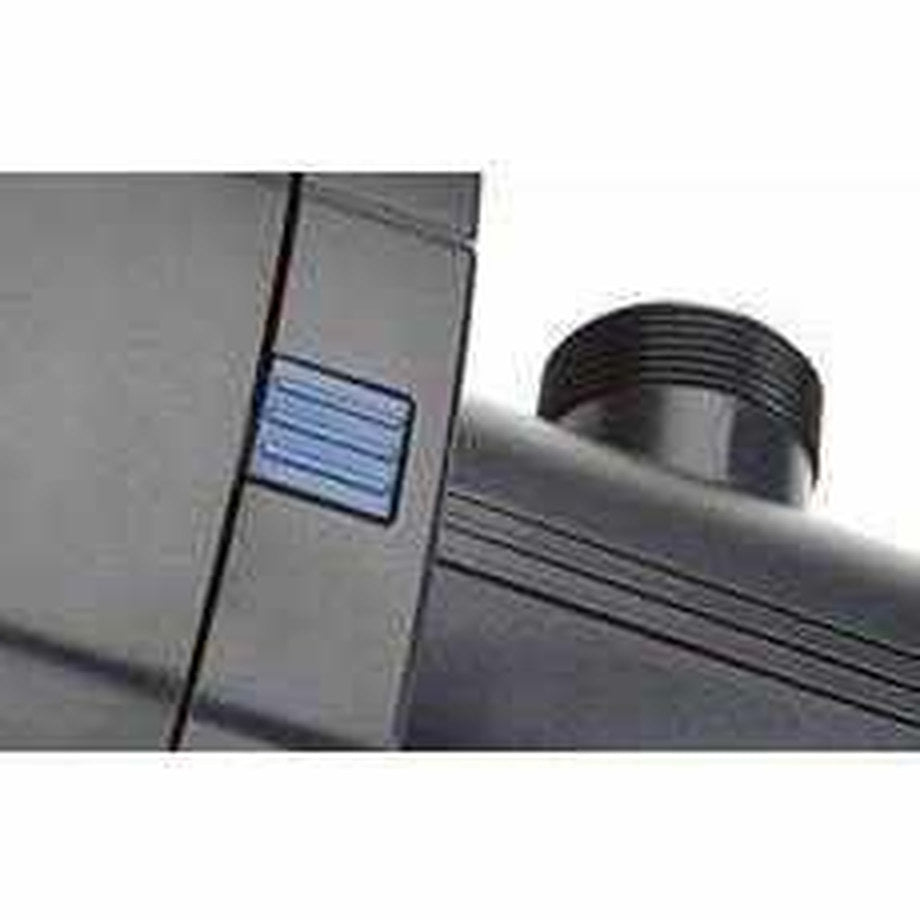

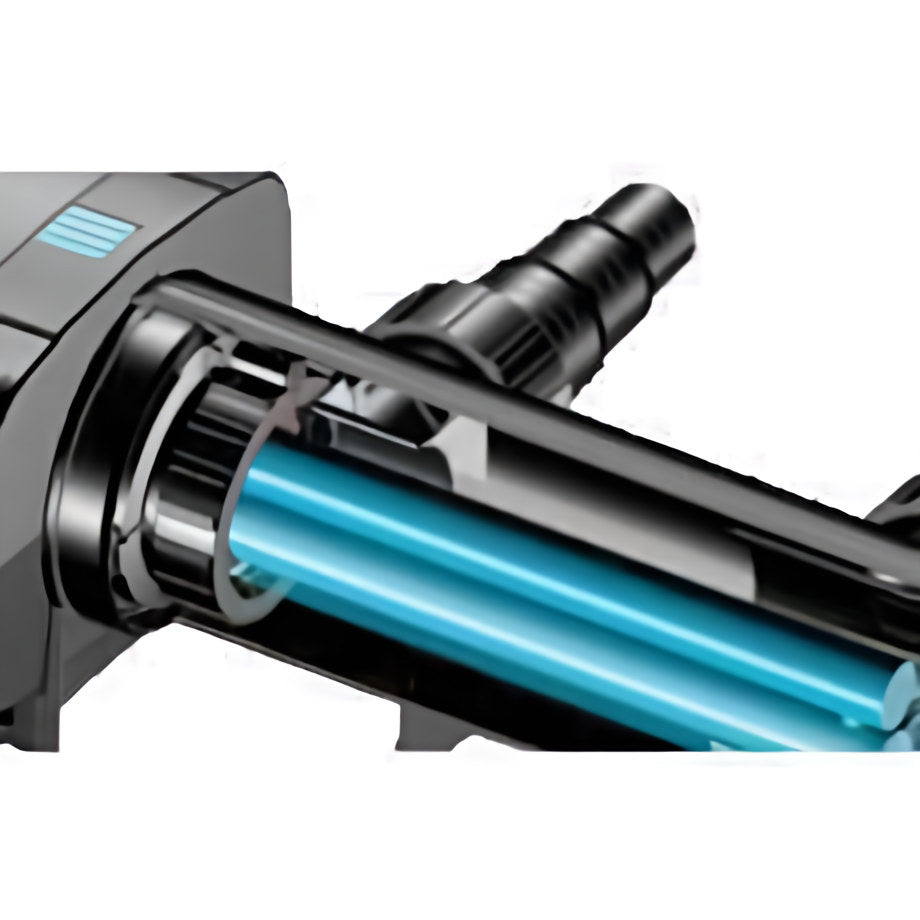

The compact design allows for easy installation. The quick-lock ballast head makes changing the UV bulb a breeze. UV operation can be safely monitored through the included large aperture viewer.
The use of high-quality UVC bulbs guarantees a long service life, and a constant effective irradiation capacity.
ADDS EASILY TO EXISTING FILTRATION SYSTEMS
In conjunction with Oase’s BioSmart range of products, Vitronic becomes a modular part of the filter system, with no extra plumbing needed. The clarifier simply hooks onto the filter box with all accessories included.
View Oase Vitronic UV Clarifier Instruction Manual here (PDF)

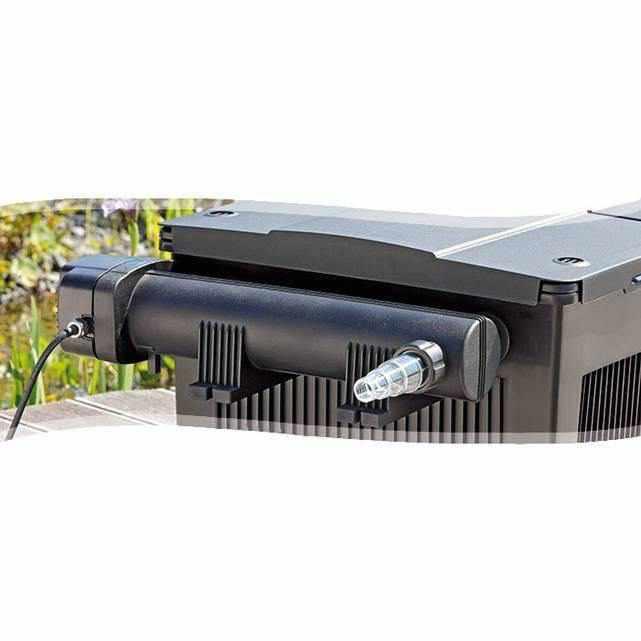

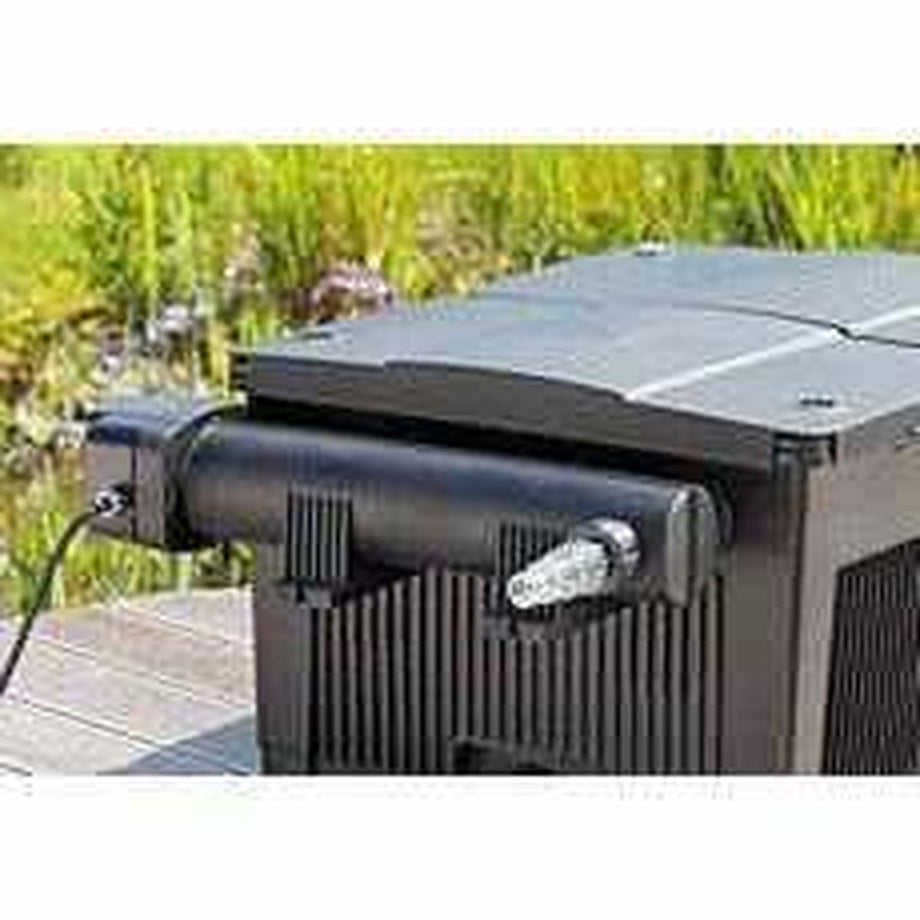

Note: the Oase Vitronic devices 18-36 W can be easily installed on the filter housing of the Oase BioSmart 5000-10000 filters as pictured.
|Vitronic 18||Vitronic 36|
|Dimensions||21 x 7 x 5 in.|
|Operating Voltage||110-120V / 60Hz|
|Power Consumption||24 Watts||45 Watts|
|Power Cable Length||16 ft.|
|UVCWattage||18 Watts||36 Watts|
|Connections (input/outlet)||1 1/2 in.|
|Tubing Connectors||1, 1 1/4, and 1 1/2 in.|
|Flow Rate||925 gph Maximum||1585 gph Maximum|
|Operating Pressure||Up To 7 PSI / 17 ft. of head|
AquaMax Eco Classic 1900
AquaMax Eco Premium 2000
AquaMax Eco Classic 2700
AquaMax Eco Premium 3000
|Warranty||2 years||2 years|
