PIK Koi Pond Liner - 60 Mil Ultra

Save $4.80
Play It KoiSKU: 60MilUltra5ft X 5ft

Size: 5ft X 5ft
Price:
Sale price$24.00 Regular price$28.80

Shipping calculated at checkout

Earn 1 Point on this purchase. Learn more
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
14,467kg
shipping emissions removed
That's like...
37034
miles driven by an average gasoline-powered car

Description

The most versatile liner on the market being fish & plant safe, with high puncture resistance, AquaArmor is the strongest, most UV-resistant pond liner in the industry! This 60 mil is our strongest Pond liner available and sports a whopping bursting strength of over 880 PSI!

While this liner is incredibly strong, the tradeoff is that it is stiffer and less malleable than the thinner RPE liners. The 40 Mil Ultra and 60 Mil Ultra are only recommended for larger installations where the additional strength is necessary, and it does not need to follow tight curves. For most pond installations, the 30 Mil Ultra is the best balance of strength and malleability.

Specs:

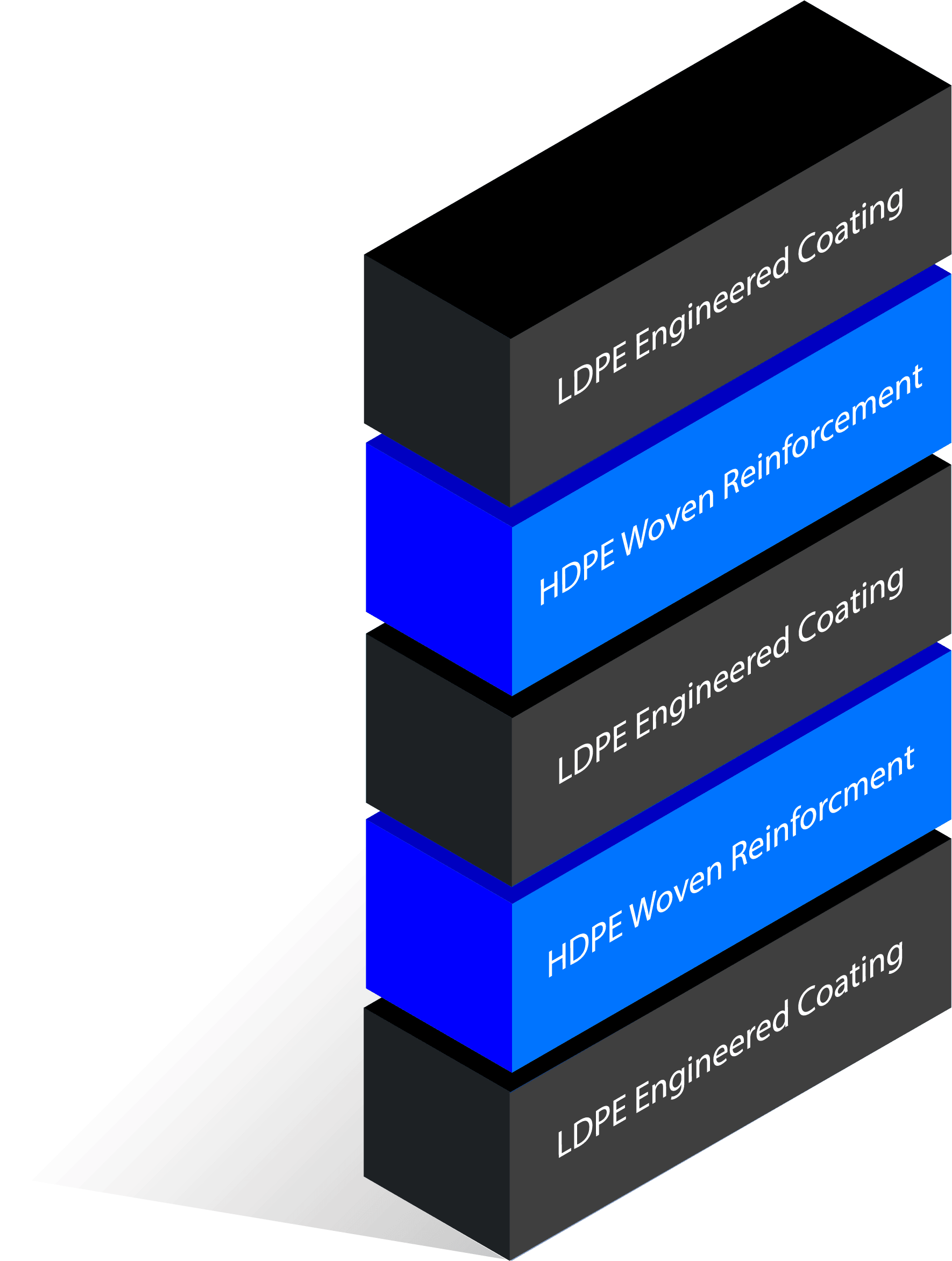

  • BTL™-60 Double Scrim HDPE w/ LDPE Coating
  • Fully NSF/ANSI 61 Certified - so safe its rated for drinking water and will not leach chemicals
  • WEIGHT 28 OZ./SQ.YD. (+/-5%)
  • THICKNESS 60 MIL (+/-10%) ASTM D1777
  • COATING THICKNESS 5.0 MIL EACH (+/-5%)
  • TENSILE STRENGTH MD 635LBS. ASTM D7004 (GRAB METHOD) TD 605LBS. (STRIP METHOD) MD 385 LBS. ASTM D7003 TD 360LBS
  • TEAR STRENGTH MD 100 LBS. ASTM D5884 (TONGUE METHOD) TD 100 LBS.
  • BURSTING STRENGTH 1250 PSI ASTM D751 (MULLEN BURST)
  • HYDROSTATIC RESISTANCE 880PSI ASTM D751 PUNCTURE RESISTANCE 380 LBS ASTM D4833
  • LOW TEMPERATURE COLD CRACK -85º F ASTM D2136
  • PERMEABILITY 2.32 x 10-12 CM/SEC
  • SEAM STRENGTH(SHEAR), min. >80% of the strip tensile value in ASTM D7747 the direction perp. to the seam.
  • SEAM STRENGTH(PEEL), min 27 LBS INCH ASTM D413
  • UV RESISTANCE >90% STRENGTH RETAINED ASTM G-154 AFTER 2000 HRS.
  • Note: liners over 12' in width are seamed together. Seams are fusion welded, which provides a permanent bond.
  • 20 Year Manufacturer's warranty from BTL Liners

We also carry 20 Mil liner, 24 Mil Liner, 30 Mil Liner with extra UV protectant (our most popular), 40 Mil Liner, and 40 mil liner.

Need a quote on a larger special size? Email Sales@playitkoi.com with your dimensions

IMPORTANT: Liner does not qualify for free shipping. Additionally, these liner orders are not eligible for return as they are all custom cut to your specs. For this reason, we'd recommend digging your pond first and then measuring it out and ordering your liner so you know exactly the dimensions and don't end up being short.
