Description
Sea Side Aquatics rotary drum filters (RDFs) are self-cleaning mechanical filters that remove solid waste from your koi pond before it reaches your biological filtration. Pond water passes through a fine woven stainless-steel drum screen; captured solids are automatically rinsed to a waste line on a timer or sensor, for consistently clear water with very little hands-on maintenance.
Choose your model, then your feed type
Pick the model that matches your pond, then choose Gravity Fed or Pump Fed. All flow figures below are maximum gravity-fed ratings; a pump-fed unit is rated roughly 30% lower, so size up if you are pumping into the filter.
| Model | Max Flow (Gravity Fed) | Suggested Pond Size | Inlets / Outlets | Filter Screen |
|---|---|---|---|---|
| Eco-20 RDF | 5,800 gph | up to 11,500 gal | 3 x 110 mm in / 2 x 110 mm out | 120 micron |
| Eco-22 WiFi RDF | 5,800 gph | up to 11,500 gal | 2 x 110 mm in / 2 x 110 mm out | 75 micron |
| PP-35 WiFi RDF | 9,250 gph | up to 18,000 gal | 4 x 110 mm in / 2 x 110 mm out | 75 micron |
| PP-40 WiFi RDF | 10,500 gph | up to 18,000 gal | 4 x 110 mm in / 2 x 110 mm out | 120 micron |
| D50 WiFi RDF | 13,200 gph | not published | 4 x 110 mm in / 4 x 110 mm out | 75 micron |

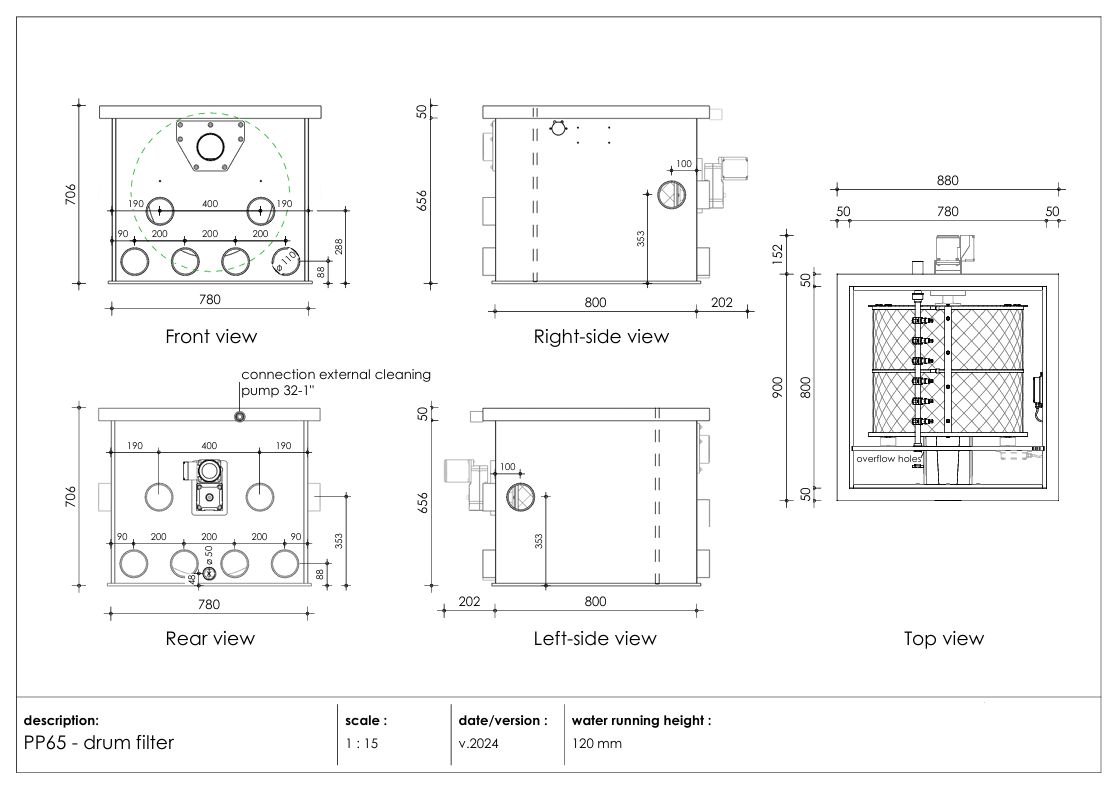

| PP-65 WiFi RDF | 17,000 gph | up to 34,000 gal | 6 x 110 mm in / 6 x 110 mm out | 75 micron |
| PP-100 RDF | 26,400 gph | up to 52,800 gal | 9 x 110 mm in / 9 x 110 mm out | 75 micron |
Pump-fed configurations add extra 110 mm outlets on most models. D50 pond sizing is not published by the manufacturer; size it from the flow rating.
What’s included
- Self-cleaning rotary drum with a woven stainless-steel screen (75 or 120 micron by model)
- Digital control box with automatic and manual cleaning cycles; WiFi control on WiFi models
- Drive motor, spray bar, and removable waste gutter
Need a control box on its own? See the SeaSide Aquatics RDF Controller Boxes.
