Description

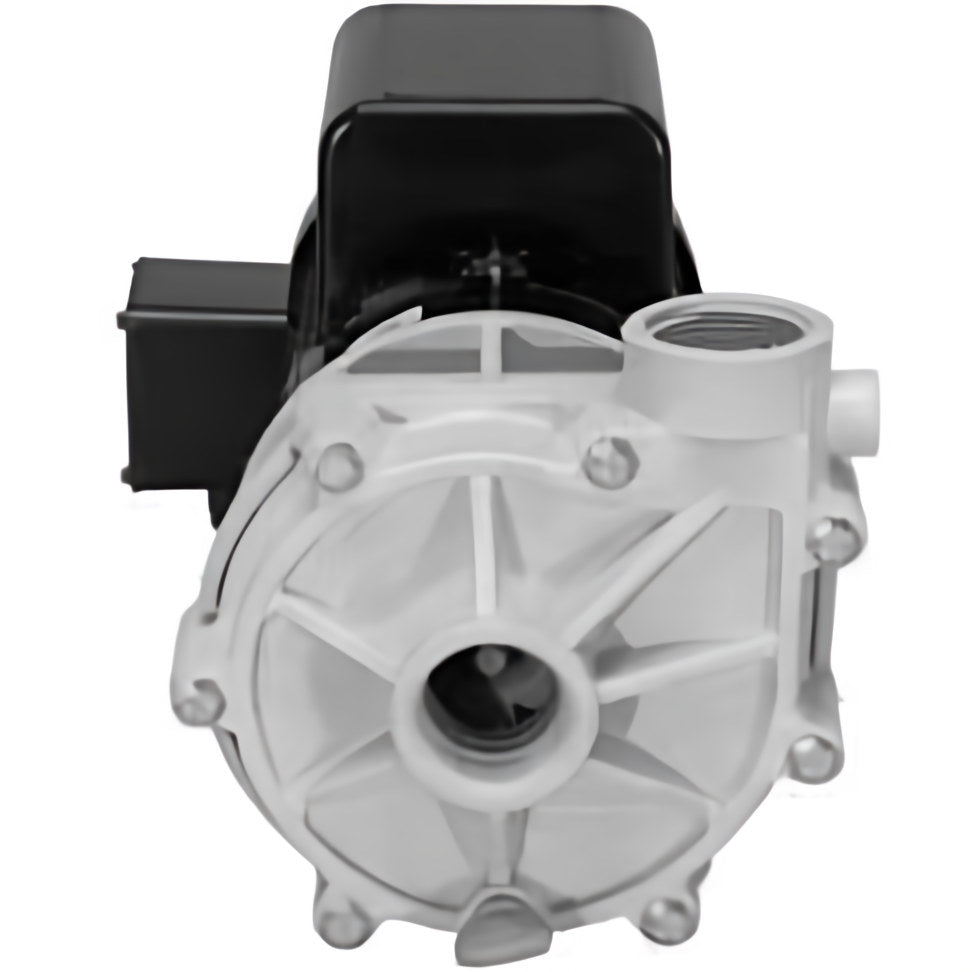

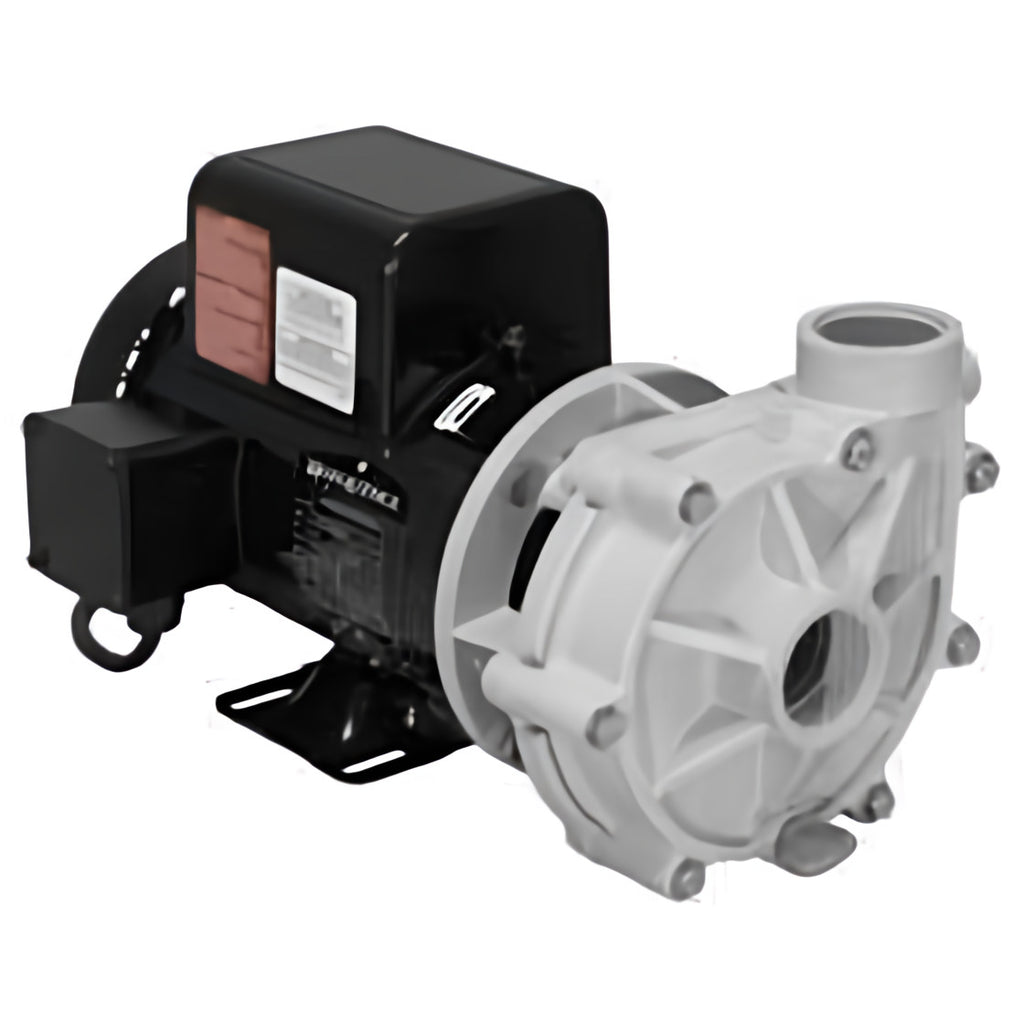

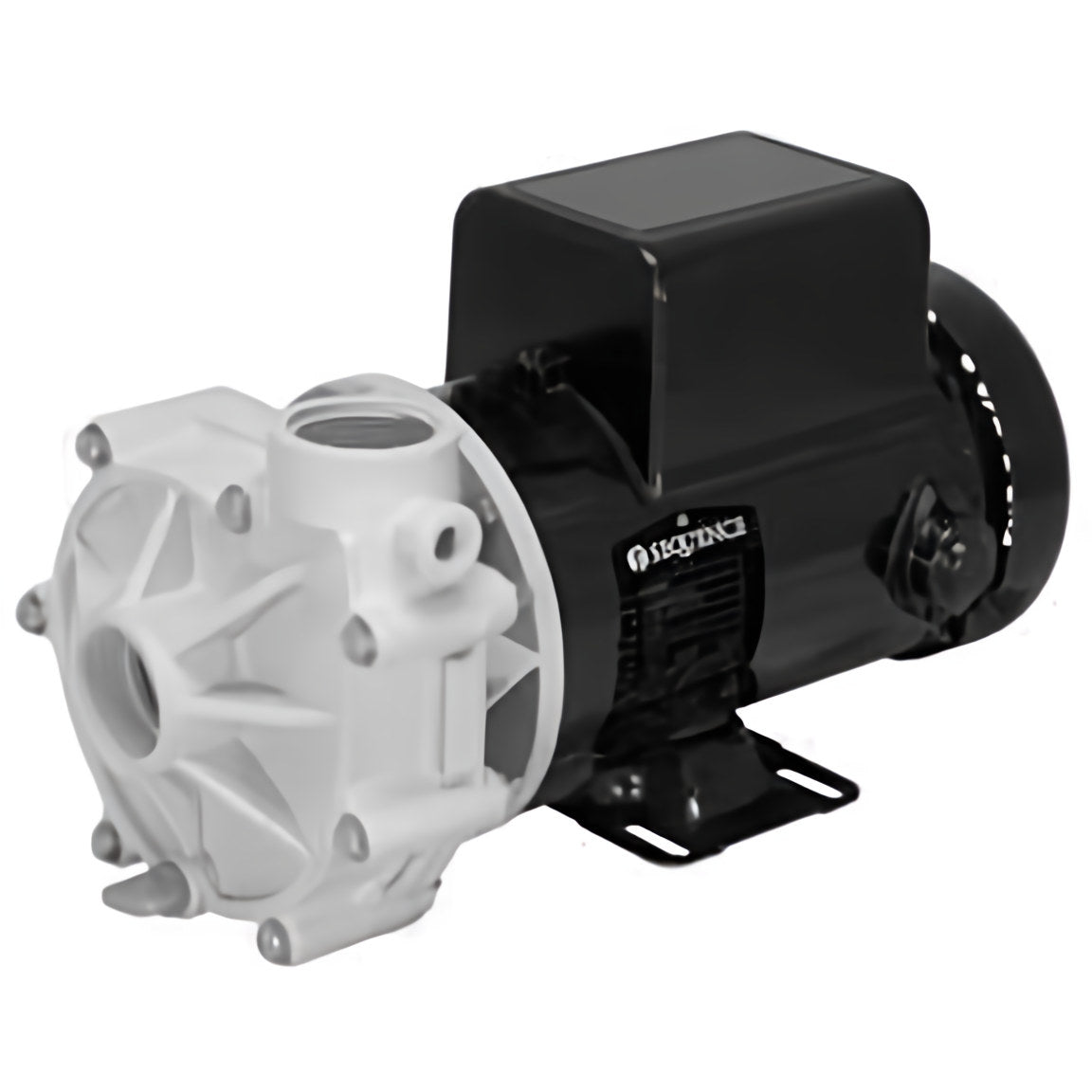

Sequence Model 1000 Series
The Classic! The model 1000 series has set the stand by which all others are measured. This series is a perfect blend of medium pressure and ample flow for the majority of ponds. The motor is totally enclosed, fan-cooled for durability.
- 115V (standard) or 230V
- Supplied with an 8-foot, 115V cordset.
- Stainless steel hardware
- 1.5" inlet & outlet
- 3-year Manufacturers warranty!!!
| MODEL | 3300SEQ21 | 4500SEQ21 | 5100SEQ22 | 6100SEQ23 |
| INLET | 1.5" | 1.5" | 1.5" | 1.5" |
| DISCHARGE | 1.5" | 1.5" | 1.5" | 1.5" |
| MAX FLOW (gph) |
3300 | 4500 | 5100 | 6100 |
| MAX HEAD (feet) |
21' | 21' | 22' | 23' |
| MAX POWER (watts) |
206 | 250 | 293 | 366 |
| MAX CURRENT (amps) |
2.36 | 2.69 | 3.03 | 3.03 |
| @ (volts) |
115/230 | 115/230 | 115/230 | 115/230 |
| MOTOR HP | 1/3, 1/4, 1/6, 1/8 |
1/3, 1/4, 1/6, 1/8 |
1/3, 1/4, 1/6, 1/8 |
1/3, 1/4, 1/6, 1/8 |
| MOTOR TYPE | 56j | 56j | 56j | 56j |
| MOTOR ENCLOSURE | TEFC | TEFC | TEFC | TEFC |
| IMPELLER | 4 | 5 | 6 | 7 |
View the Sequence 1000 Installation Manual (PDF)
Recommended Accessories :
Sequence Strainer Baskets: We offer a few different options of strainer baskets for those applications that demand debris interception as well as a simple priming configuration. Our 90 Cubic Inch Strainer Baskets are sold with either a 1.5" or 2" union adapter. All units come complete with an internal strainer assembly and gasket seals.
|
SIZE |
PART NUMBER |
O-RINGS |
MATERIAL |
|
1.5" |
1000.771-1 |
Buna |
PVC/ABS/Lexon |
|
2" |
1000.771-7 |
Buna |
PVC/ABS/Lexon |
