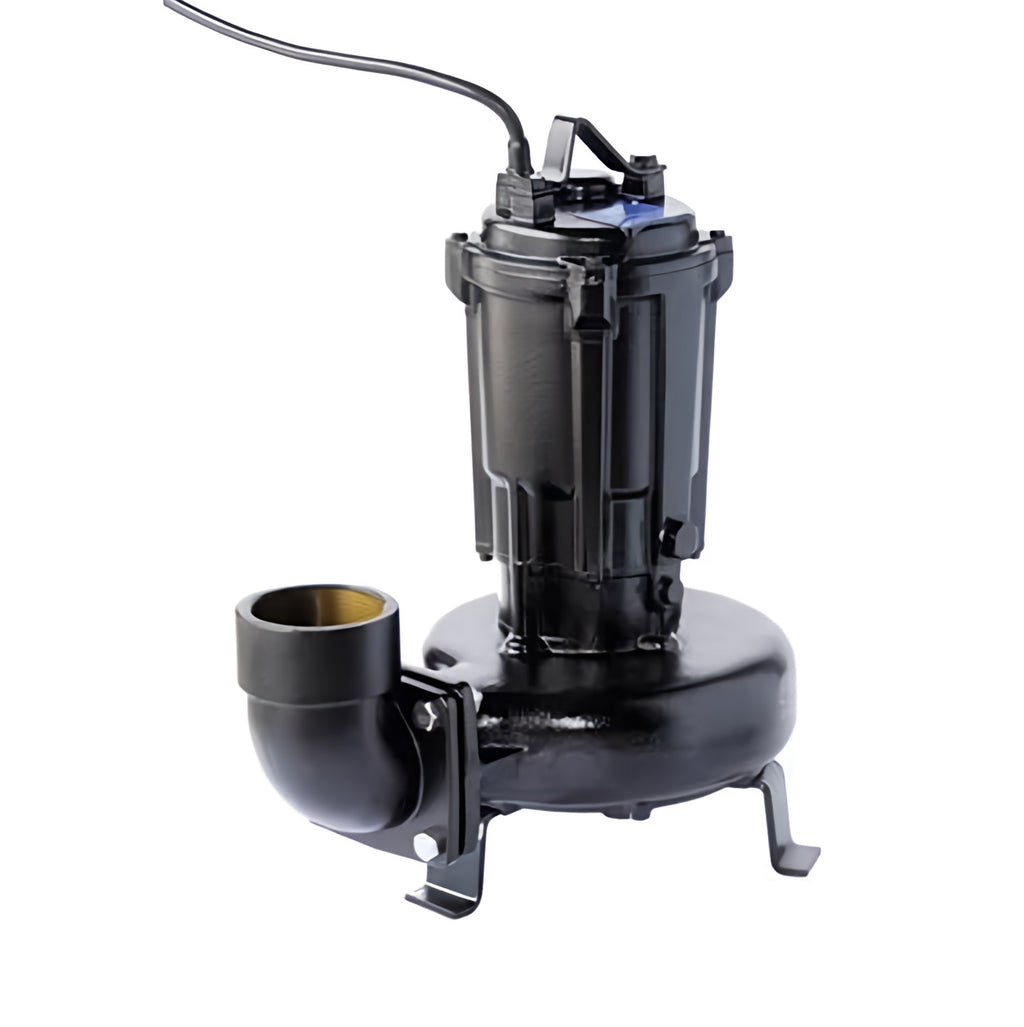

ShinMaywa CNL Three Phase Cast Iron Pump

Save $574.00
ShinMaywaSKU: 65CNL41.5T

Size: CNL Three Phase Cast Iron 2 HP 3" Discharge
Price:
Sale price$2,296.00 Regular price$2,870.00

Shipping calculated at checkout

Earn [points_amount] when you buy this item.

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
45258kg
shipping emissions removed
That's like...
115859
miles driven by an average gasoline-powered car

Description

The ShinMaywa CNL Pump provides an excellent solution for higher flow rates in continuous duty applications. These pumps are constructed with high-efficiency air-filled motors, including built-in thermal overload protection, which is a unique offering for 3-phase motor. The two-vane impeller offers excellent solids handling while maintaining high efficiencies, producing flow rates up to 900GPM and pump head up to 83'.

  • Three-phase 230V motors
  • 2-vane non-clog high efficiency impeller
  • Air filled class E insulated heavy duty motor runs cooler with high efficiency
  • Double mechanical shaft seals provide long service life and low maintenance
  • Thermal overload protection protects from overheating
  • 32' power cable

NOTE:  Three-phase pumps are high quality and heavy duty and they move a lot of water but please be aware that if you do not have three-phase electric you MUST use these pumps with a VFD control panel. This is necessary for the three-phase electric hookup and also because there is no start up capacitor on these pumps. The control panel will allow the pump to start up and turn off slowly to avoid water hammering.

If you have three-phase at your location, you can still use a VFD panel or you can use a Mag-Drive Starter Panel.

Model
HP
Amps Connection Solids
Handling
Dimensions Wt
65CNL41.5T-2 2 6.5 3" NPT 2" 17.6" x 20.8"H 104lb
80CNL42.2T-2 3 8.9 3" NPT 2" 18.7" x 21.6"H 137lb
80CNL43.7T-2 5 15 4" Flange 2.5" 24.4" x 24"H 168lb
100CNL45.5T-2 7.5 20.5 4" Flange 2.5" 26.5" x 26.6"H 230lb
100CNL47.5T-2 10 29 4" Flange 2.5" 26.5" x 26.6"H 261lb

Model GPM @ ft of head Max Head
5' 10' 15' 20' 25' 30' 35' 40' 45'
65CNL41.5T-2 410 345 285 225 160 95 50 - - 38'
80CNL42.2T-2 485 440 385 330 270 215 150 90 15 47'
80CNL43.7T-2 - 700 660 580 490 410 330 250 160 58'
100CNL45.5T-2 - 850 790 730 660 600 530 450 360 68'
100CNL47.5T-2 - - 900 870 830 775 710 650 560 83'


100CNL models ship by freight, which requires that you be present at delivery. We will contact you after purchase with Freight shipping quote. Freight company will call to schedule an appointment.

CNL Series Specifications
