Description
Description
The Teton XC Series Mag Drive submersible pond pump is the perfect solution for ponds, waterfalls, and decorative water features. This energy-efficient pond pump can be installed in-line or fully submersible, with an extra-long power cord for easy setup. A built-in dry run pump protection system with automatic shutoff prevents motor damage, while its quiet operation and durable design make it ideal for everything from backyard koi ponds to large waterfalls.
Features & Benefits
- Amphibious design for in-line and submersible
- Energy-efficient design optimized for continuous outdoor operation
- Heat- and stress-resistant pump body for year-round use
- Ceramic impeller shaft, which Teton describes as virtually wear-free
- Built-in pre-filter screen protects the impeller from debris
- Threaded inlet/outlet ports for in-line or submersible mounting
- Multi-size tubing adapters included for flexible installation
- Adjustable flow control on supported models for fine-tuning output
Applications
- Backyard ponds
- Waterfalls and water features
- Fountains and spillways
- Skimmers and filtration loops
Specifications
| Item No. | Max Flow | Description |
|---|---|---|
| XC1500 | 1500 GPH | Course Pond & Water Feature Pump, 1500 Gph |
| XC2000 | 2000 GPH | Course Pond & Water Feature Pump, 2000 Gph |
| XC3100 | 3100 GPH | Course Pond & Water Feature Pump, 3100 Gph |
| XC4200 | 4200 GPH | Course Pond & Water Feature Pump, 4200 Gph |
| XC5100 | 5100 GPH | Course Pond & Water Feature Pump, 5100 Gph |
| XC5900 | 5900 GPH | Course Pond & Water Feature Pump, 5900 Gph |
Construction
- Heat- and stress-resistant molded housing
- Corrosion-resistant impeller shaft
- Sealed motor housing for submersible operation
- Replaceable pre-filter and impeller components
Head, Power & Plumbing by Model
Don't assume a bigger XC pushes water higher. Max head doesn't rise in step with flow: the XC4200 tops out at 17 ft, below the XC2000's 19 ft. If your waterfall outlet sits well above the water line, pick by the head figure as well as the GPH.
| Item No. | Max Head | Watts | Inlet | Outlet | Size (L x W x H) |
|---|---|---|---|---|---|
| XC1500 | 14 ft | 45 W | 1" FPT | 1" FPT | 8.25 x 4 x 6.25 in |
| XC2000 | 19 ft | 75 W | 1" FPT | 1" FPT | 8.25 x 4 x 6.25 in |
| XC3100 | 21.5 ft | 165 W | 1-1/2" FPT | 1-1/2" FPT | 10.75 x 6 x 8.25 in |
| XC4200 | 17 ft | 190 W | 1-1/2" FPT | 2" FPT | 9.5 x 6 x 8.25 in |
| XC5100 | 20.25 ft | 250 W | 1-1/2" FPT | 2" FPT | 10.75 x 6 x 8.25 in |
| XC5900 | 22.25 ft | 290 W | 1-1/2" FPT | 2" FPT | 10.75 x 6 x 8.25 in |

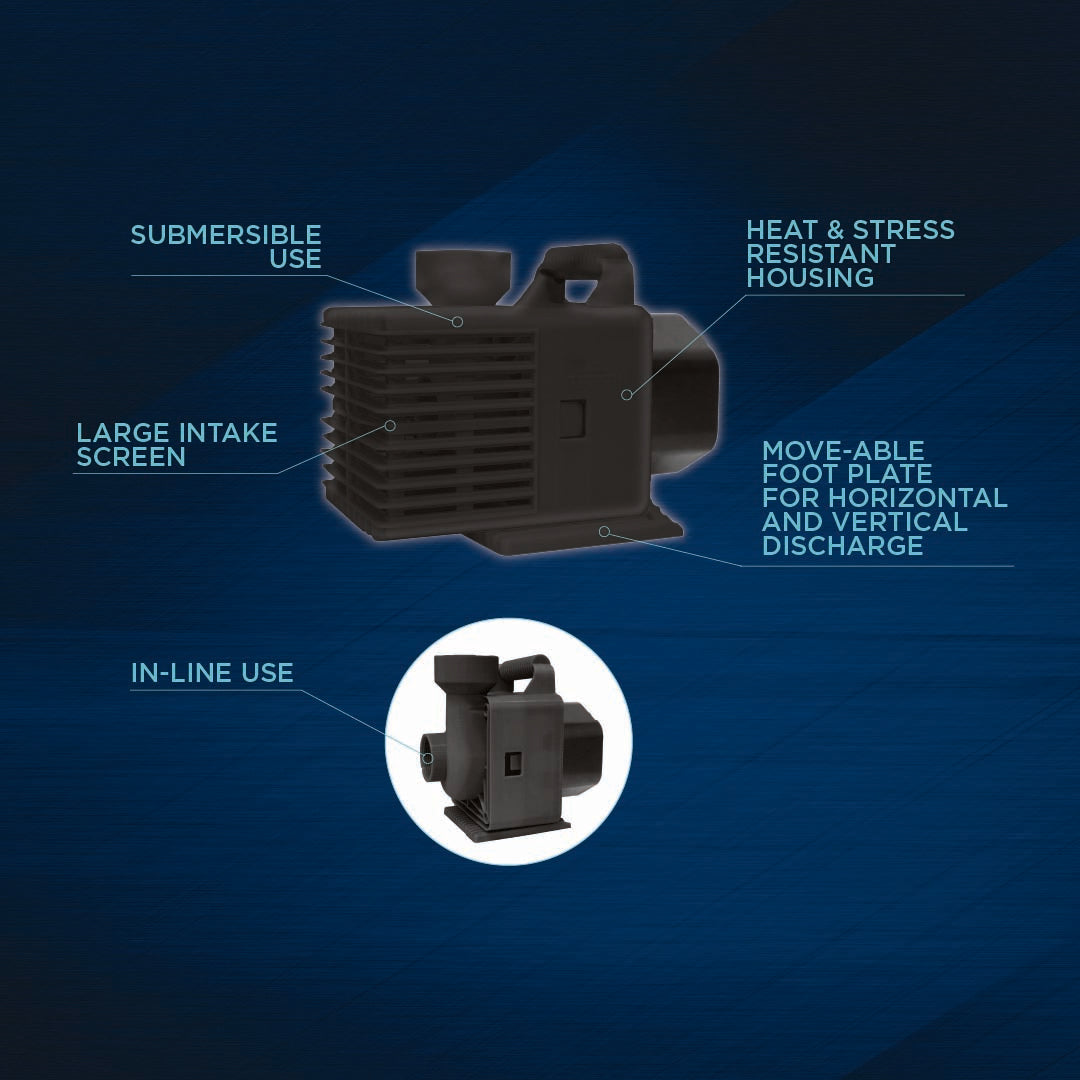

Installation Options
Decide first whether the pump will sit in the water or beside it. The XC works either way.
- Submerged in a skimmer box or down on the pond floor, which is how most people install it. Leave enough water over the intake that it can't run dry.
- Plumbed in-line outside the pond, sitting in a pump vault or an external filter housing. Here the water has to reach the pump by gravity or through a flooded suction line.
In both setups the moveable footplate lets you change the pump's orientation, and the NPT threads on the inlet and outlet take standard PVC plumbing. Every model has a 32 ft cord, so you can put the pump farther from the outlet. If the water level does drop too low, SmartMAG protection shuts the pump off and starts it again by itself once the water comes back.
Good to Know
- There's no mechanical shaft seal to wear out and no oil touching the water. The magnetically coupled impeller is the only moving part.
- Screws and hardware are high-grade stainless steel.
- It's intended for fresh water, and it's covered by a 2-year limited warranty.
