Description

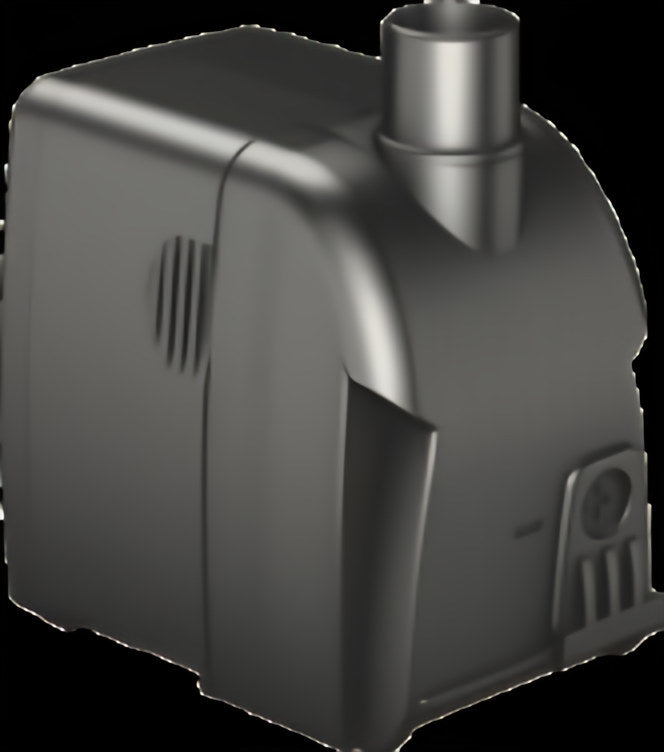

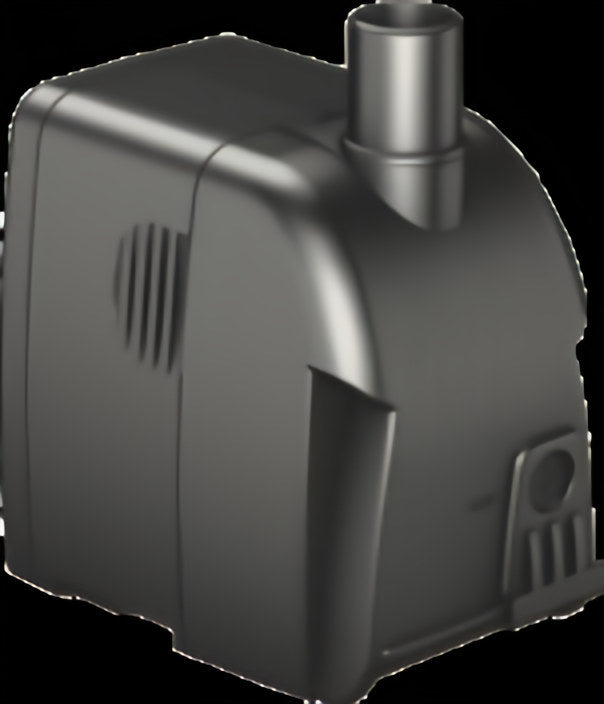

The Teton XS Series Mag Drive is a versatile submersible fountain pump designed for use in a variety of water features. Compact yet powerful, it works perfectly as a garden fountain pump, decorative water fountain pump, or general fountain pump for small ponds and aquariums. With its built-in flow control, this water feature pump provides greater flexibility, making it easy to set the exact flow rate you need. Engineered for reliability, it combines quiet operation with energy efficiency, making it a dependable choice for both indoor and outdoor applications.
Features & Benefits
- Built in flow control
- Magnetic driven impeller
- Low water intake prefilter screen
- Energy efficient
- Silent operation
- Thermally protected
- 2-Year Warranty
Applications
- Submersible fountain & statuary pumps
- Small ponds and aquariums (fresh & saltwater)
- Aquaponics
- Indoor water features and tabletop fountains
Specifications
| Item No. | Max Flow (GPH) | Max Head Lift | Watts | Cord Length |
|---|---|---|---|---|
| XS75 | 75 | 18" | 4 W | 6 ft |
| XS100 | 100 | 30" | 4 W | 6 ft |
| XS115 | 115 | 30" | 9 W | 16 ft |
| XS165 | 165 | 50" | 12 W | 16 ft |
| XS215 | 215 | 59" | 18 W | 16 ft |
| XS250 | 265 | 82" | 26 W | 16 ft |
Construction
- Heat- and stress-resistant molded housing
- Stainless steel impeller shaft for corrosion resistance
- Multi-size tubing adapters included for flexible installation
- Low-water intake pre-filter screen protects the impeller from debris
Tubing Adapters by Model
Check your tubing size before you pick a model. The adapters that come with the pump cover different inside diameters depending on the size, and only the XS215 and XS250 include 5/8 in and 3/4 in adapters.
| Item No. | Tubing Adapters (ID) |
|---|---|
| XS75 | 3/8, 1/2 in |
| XS100 | 3/8, 1/2 in |
| XS115 | 3/8, 1/2 in |
| XS165 | 3/8, 1/2 in |
| XS215 | 3/8, 1/2, 5/8, 3/4 in |
| XS250 | 3/8, 1/2, 5/8, 3/4 in |
Setup & Care
- Keep it fully submerged whenever it's running, and plug it into a properly grounded, GFCI-protected outlet.
- Plan for water no warmer than 95°F (35°C). That's the top of its design range.
- You can turn the flow down at the dial without putting back-pressure stress on the motor. The dial works by restricting the outlet.
- It's oil-free, which matters when fish share the water: there's no contamination risk in freshwater or saltwater aquariums, aquaponics systems or fish-containing features.
- Plan on regular cleaning. Take out the rotor/impeller and clear debris and lime scale from it and from the pump chamber; mineral crust comes off if you soak the parts in vinegar or lemon juice, then put it back together.
Download the Teton XS Series Instruction Manual (PDF)
