Description

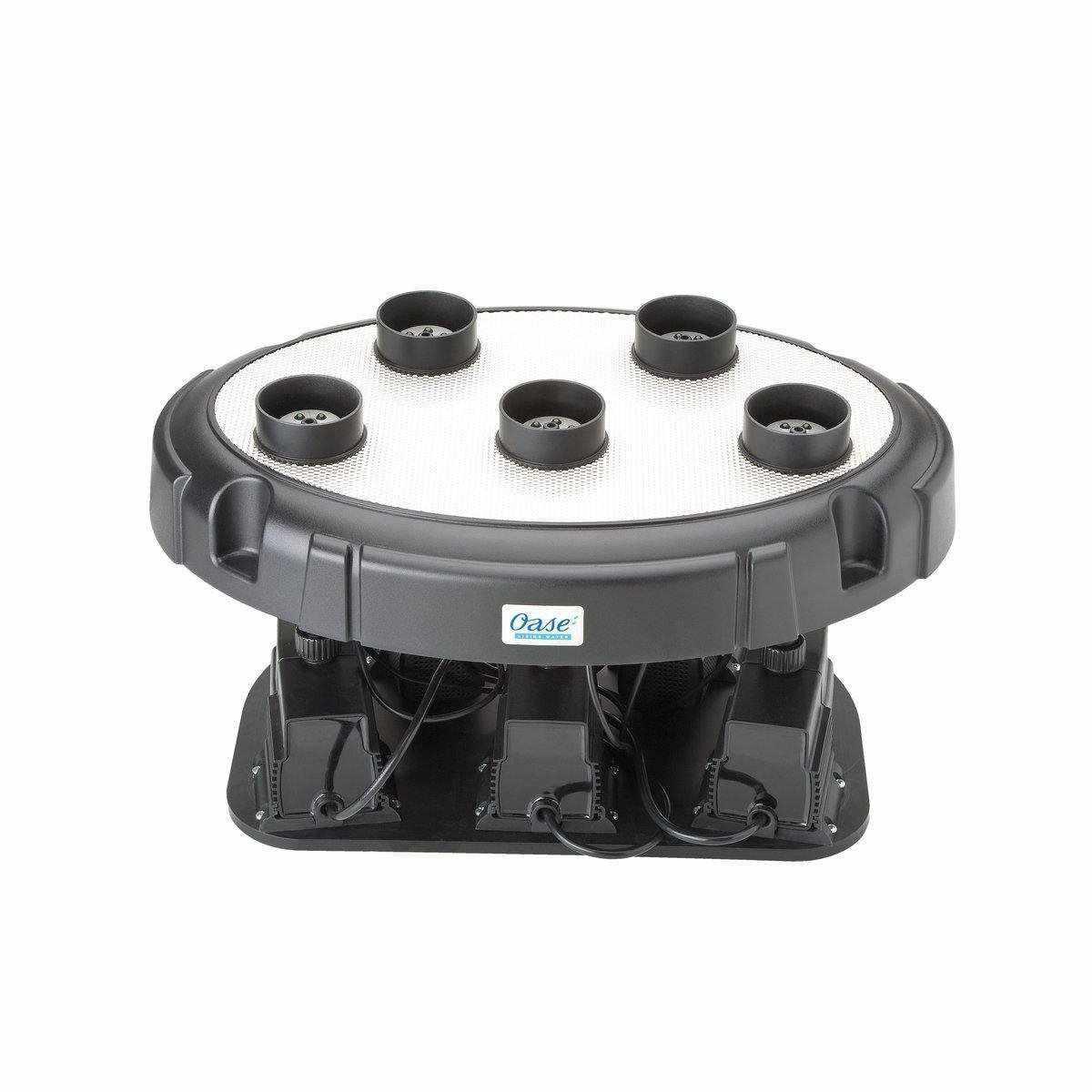

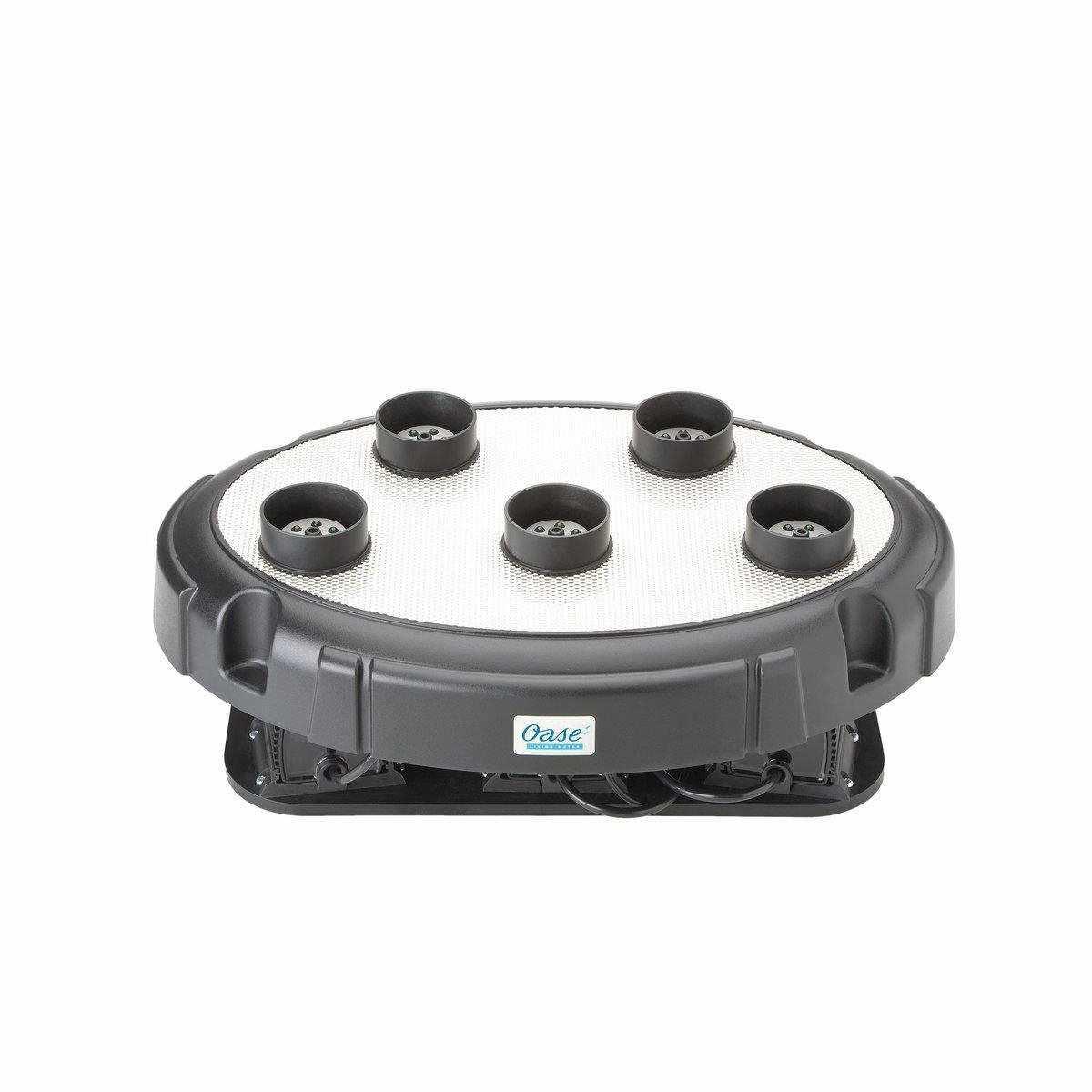

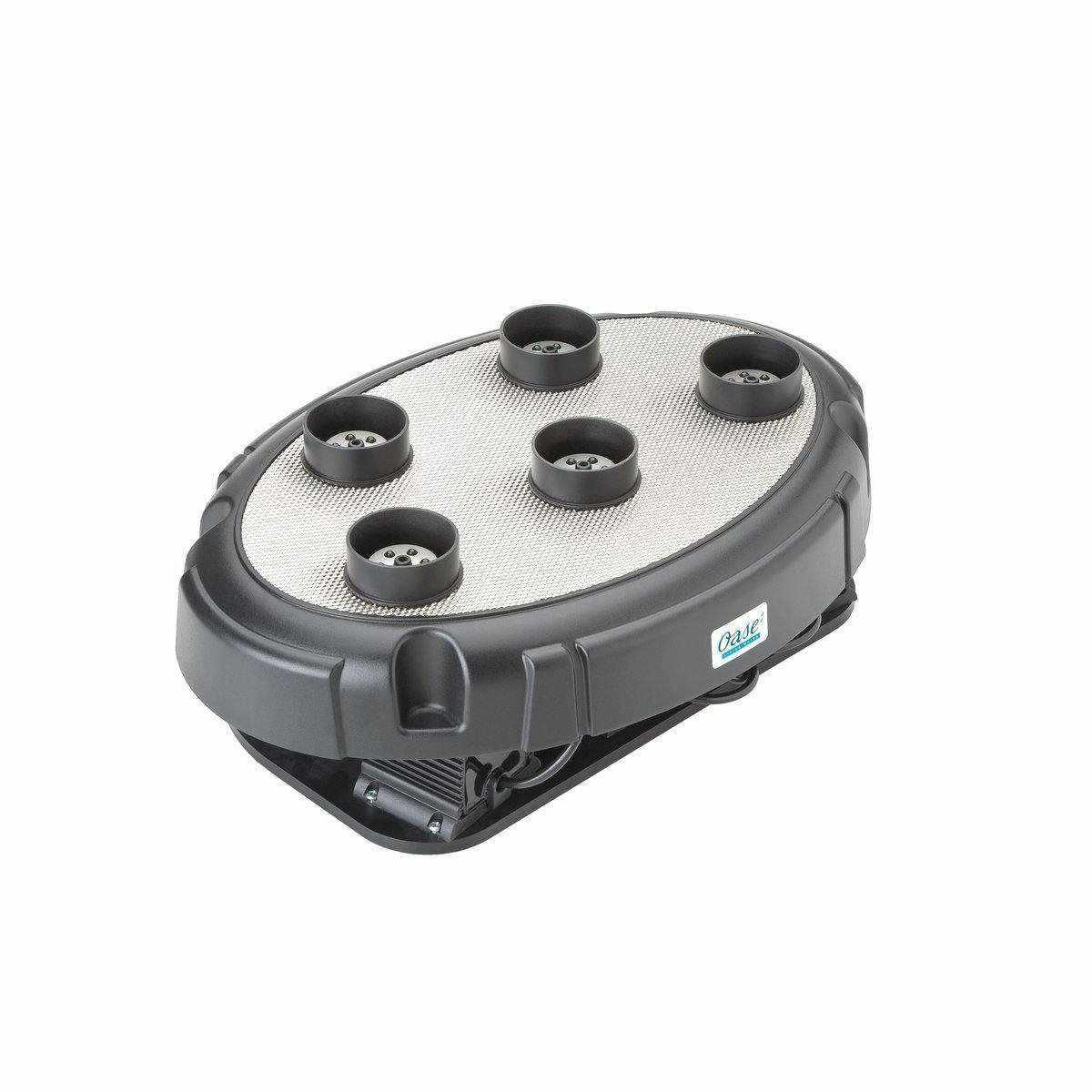

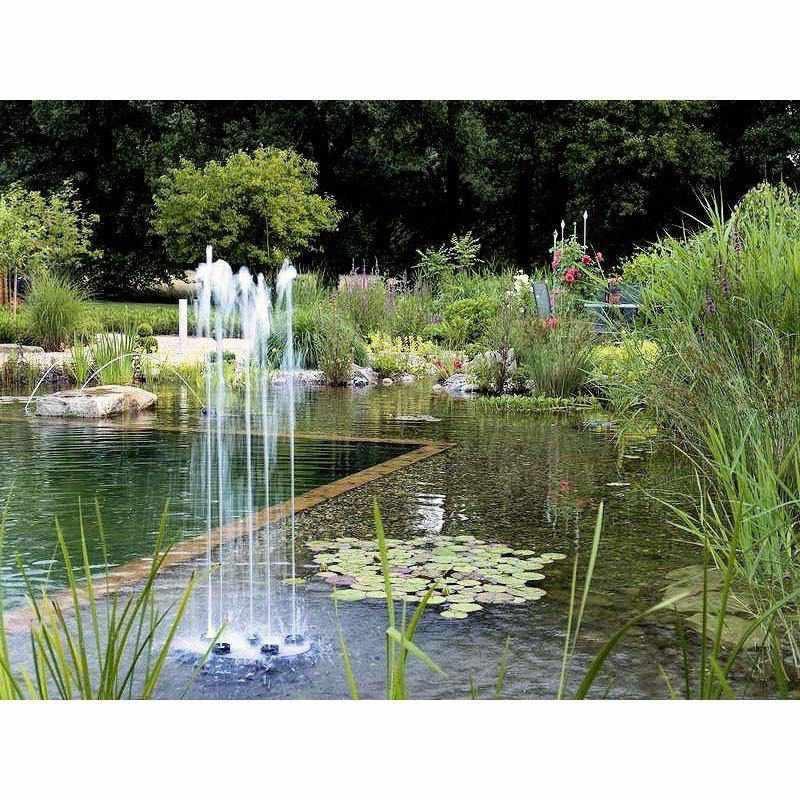

The OASE Water Quintet is a self-contained five-jet floating fountain with synchronised LED illumination. Each individually adjustable nozzle throws a 0.25 in. jet up to 55 inches high, lit by six warm-white LEDs. Nine pre-programmed sequences vary fountain height and light intensity, switched via the included 250 ft. range remote. The robust base plate sits on virtually any pond bottom, and the 12 V pump set runs on a single outdoor-rated 120 V transformer.

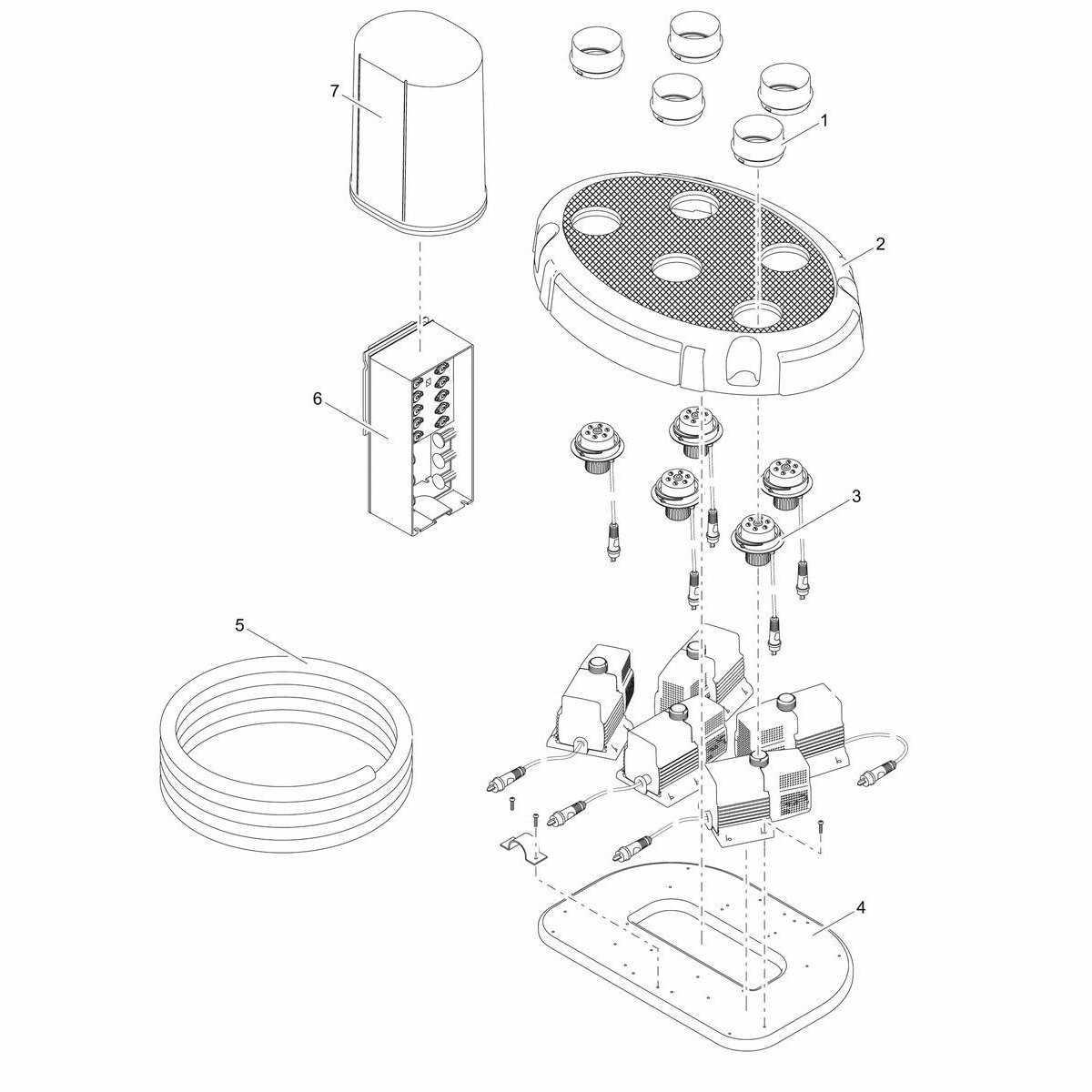

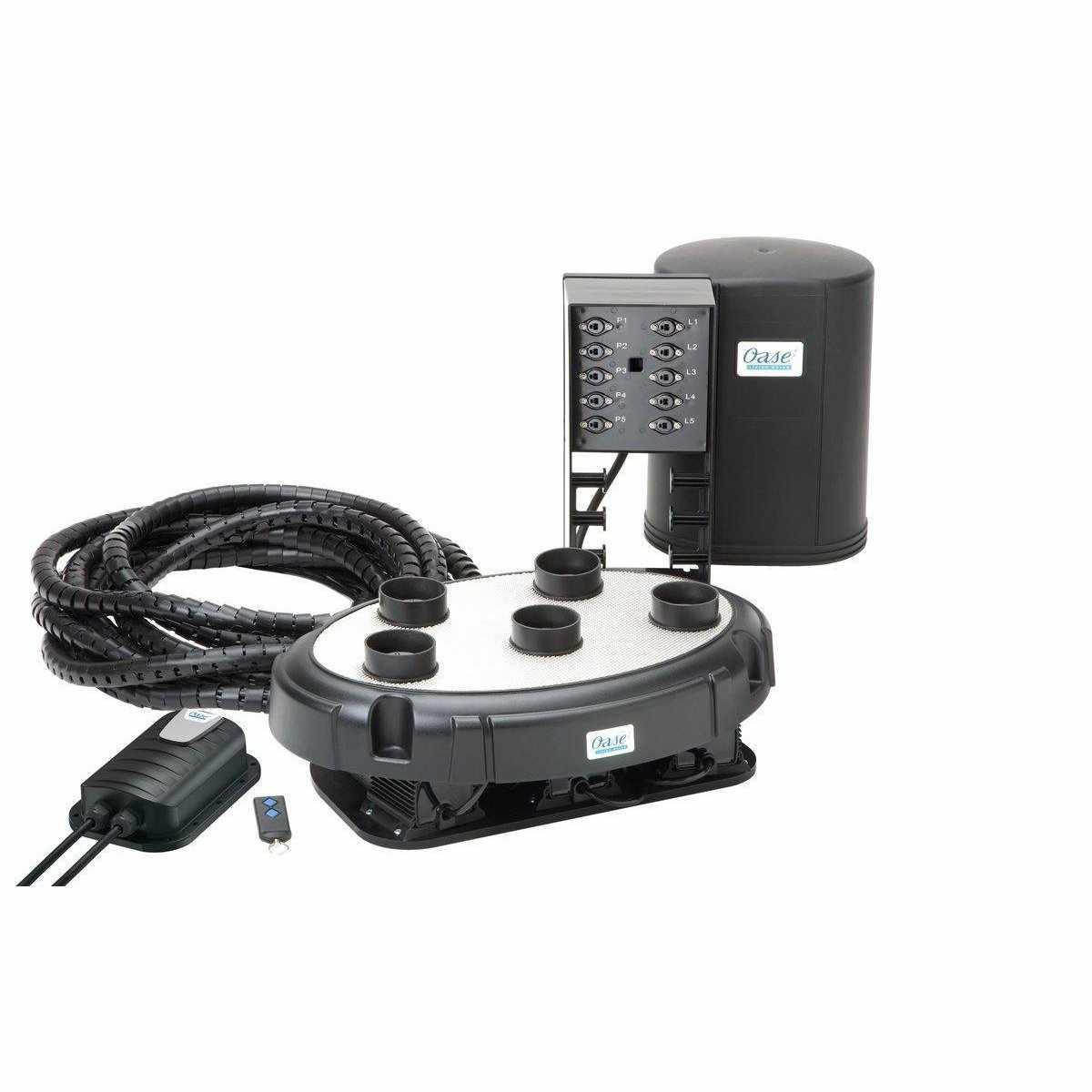

What's in the Box

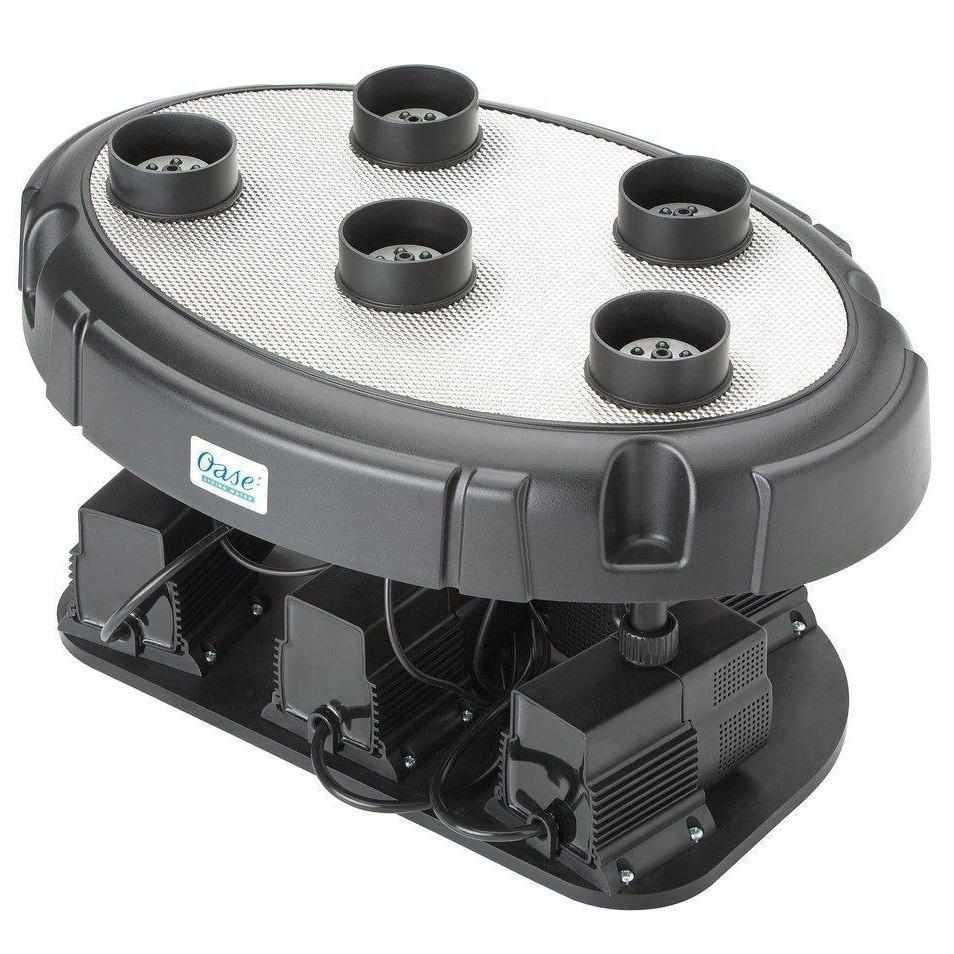

- 5 × 12 V submersible pump with adjustable illuminated nozzle (6 warm-white LEDs each)

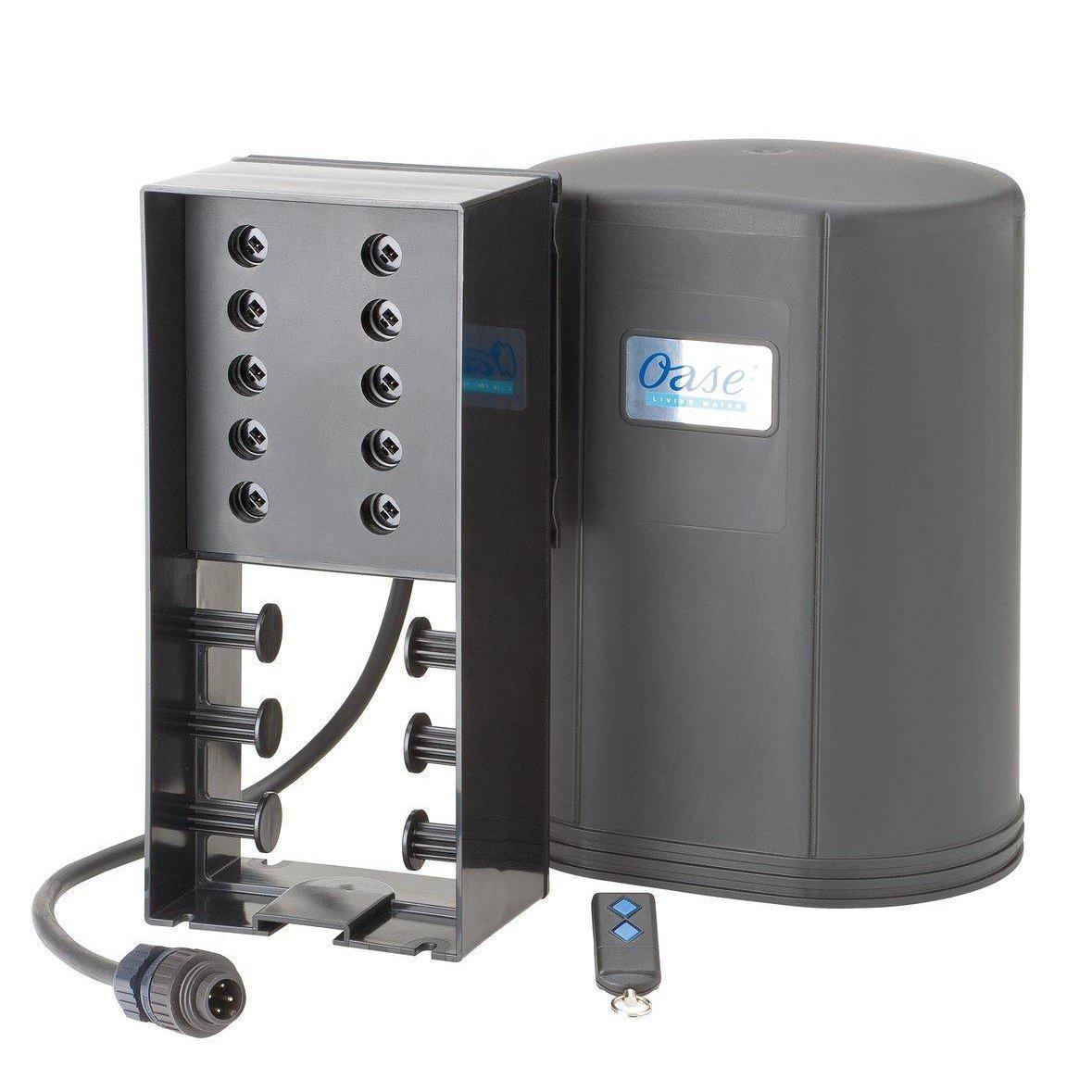

- External control unit with weather-resistant cover and ground stake
- 120 V outdoor transformer and connection cables

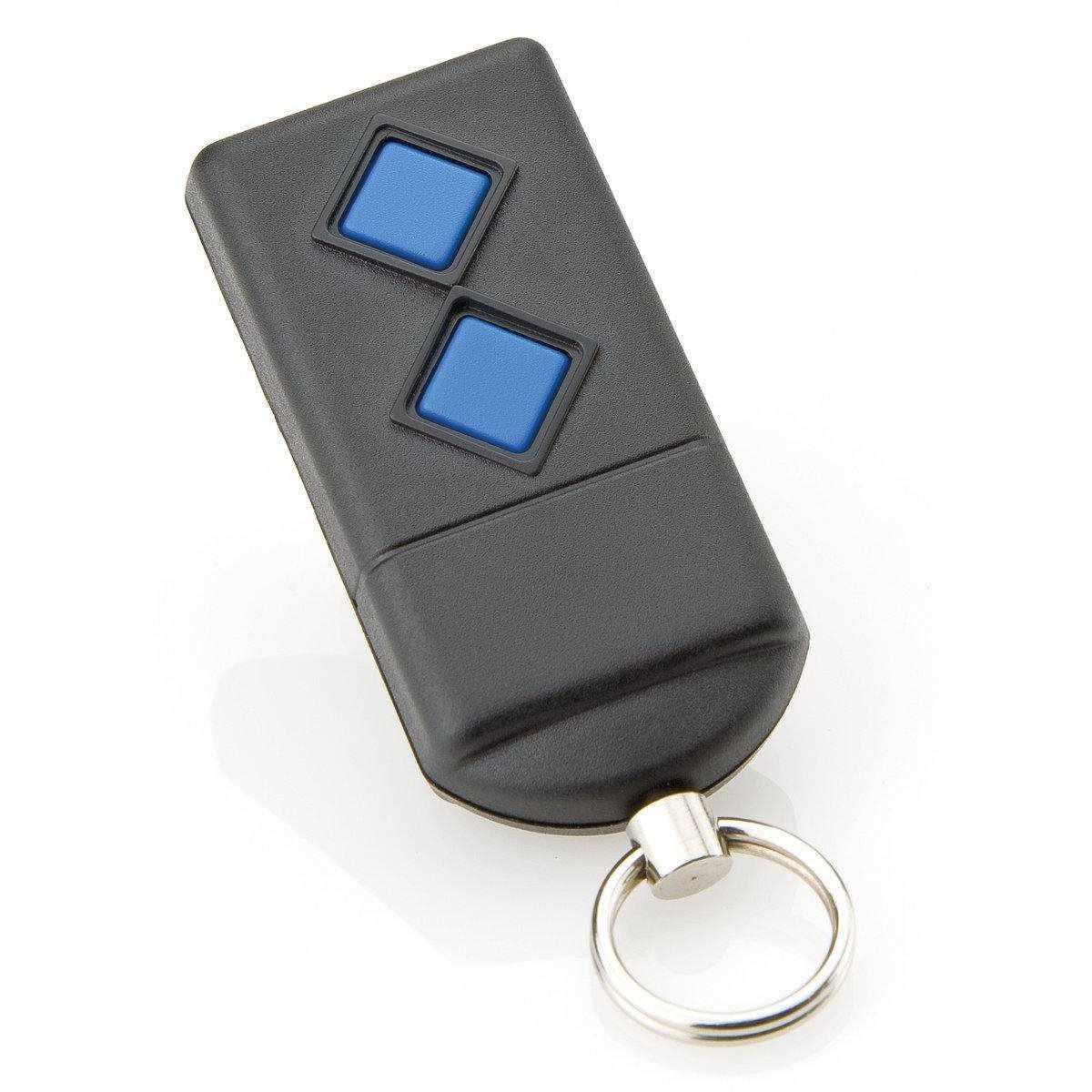

- Wireless remote control (range up to 250 ft.)

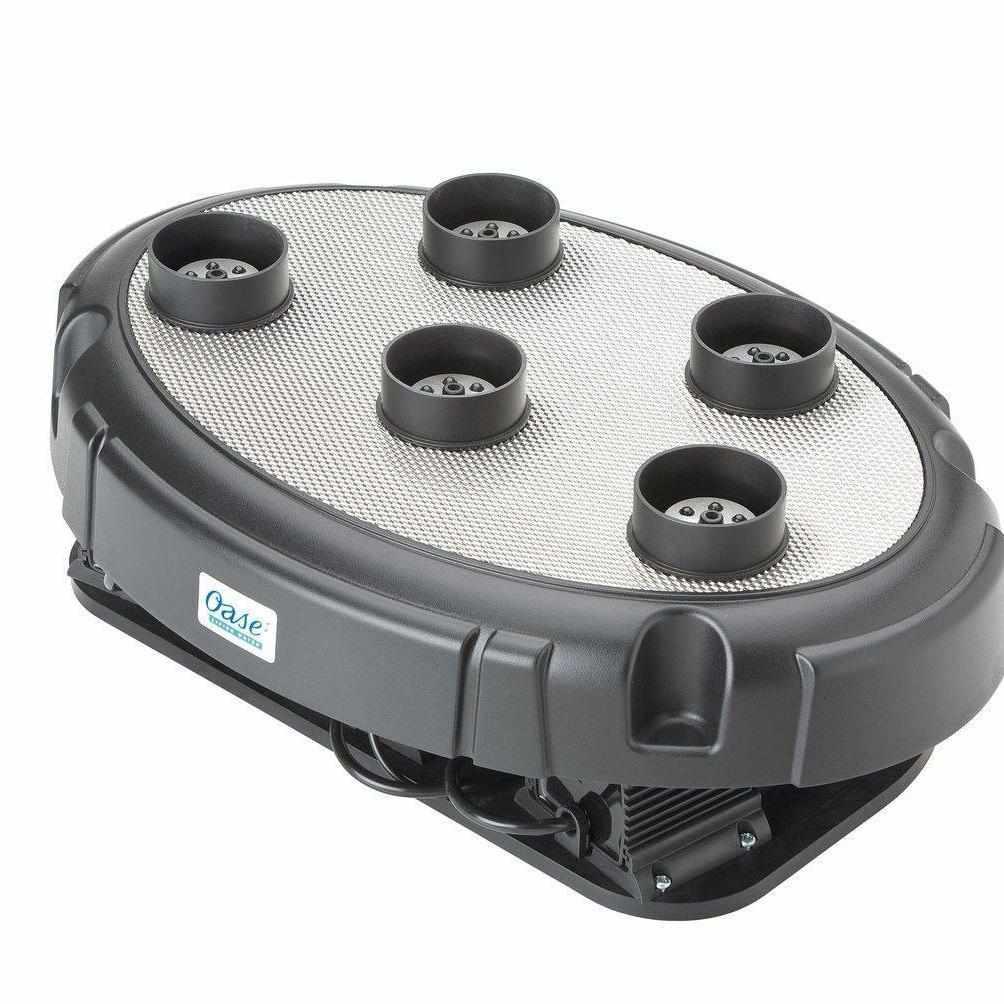

- Robust floor plate
Features
- Plug-n-Spray: ready for use straight out of the box
- 9 pre-programmed effects with variable fountain height (12–55 in.) and light intensity
- Wireless remote operation up to 250 ft. line-of-sight
- Compatible with a standard timer for unattended operation
- Works on a wide variety of pond substrates; floor plate prevents damage
- Safe, energy-efficient 12 V technology — only 50 W total draw
- Suitable for ponds with or without fish, including swim ponds
- Minimum recommended pond diameter: 10 ft.
- Up to 5 systems can be linked together for larger displays
- 2-year warranty
Specifications
| Number of Jets | 5 |
|---|---|
| Net Weight | 28.87 lbs |
| Product Dimensions | 17 × 11.8 × 9.4 in. |
| Fountain Height (max) | 55 in. (4.5 ft.) |
| Jet Diameter | 0.25 in. |
| Light Color | Warm white (6 LEDs per nozzle) |
| Pre-programmed Effects | 9 |
| Pump Voltage | 12 V DC |
| Transformer | 120 V / 60 Hz → 12 V DC, outdoor-rated |
| Power Consumption (max) | 50 W |
| Cable Length | 8 ft. (transformer) + 26 ft. (control unit) |
| Remote Range (max) | 250 ft. line-of-sight |
| Control Box Dimensions | 8.5 × 7.1 × 12 in. |
Installation
- Position the pumps: Set each pump on a level base. If your pond is deep, raise pumps on bricks so the nozzle sits below the water surface.
- Aim the nozzles: Adjust the installation depth so the water surface stays just below the nozzle tip. Each nozzle pivots in a 15° cone — angle as desired.
- Connect the control unit: Anchor the external control unit on dry ground at least 6.5 ft. (2 m) from the water using the supplied stake. Plug into the transformer; the fountain starts automatically. Cover with the supplied weather hood.
- Choose a program: Use the wireless remote to cycle through the 9 pre-programmed light + height effects. The control unit can also be wired to a timer.
Download the OASE Water Trio & Water Quintet Instruction Manual (PDF).
Looking for a smaller installation? See the 3-jet sibling: OASE Water Trio.
